Sony WM-EX660 - Disassembly Procedure; Cassette Lid Removal

– 8 –
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
Note: Follow the disassembly procedure in the numerical order given.

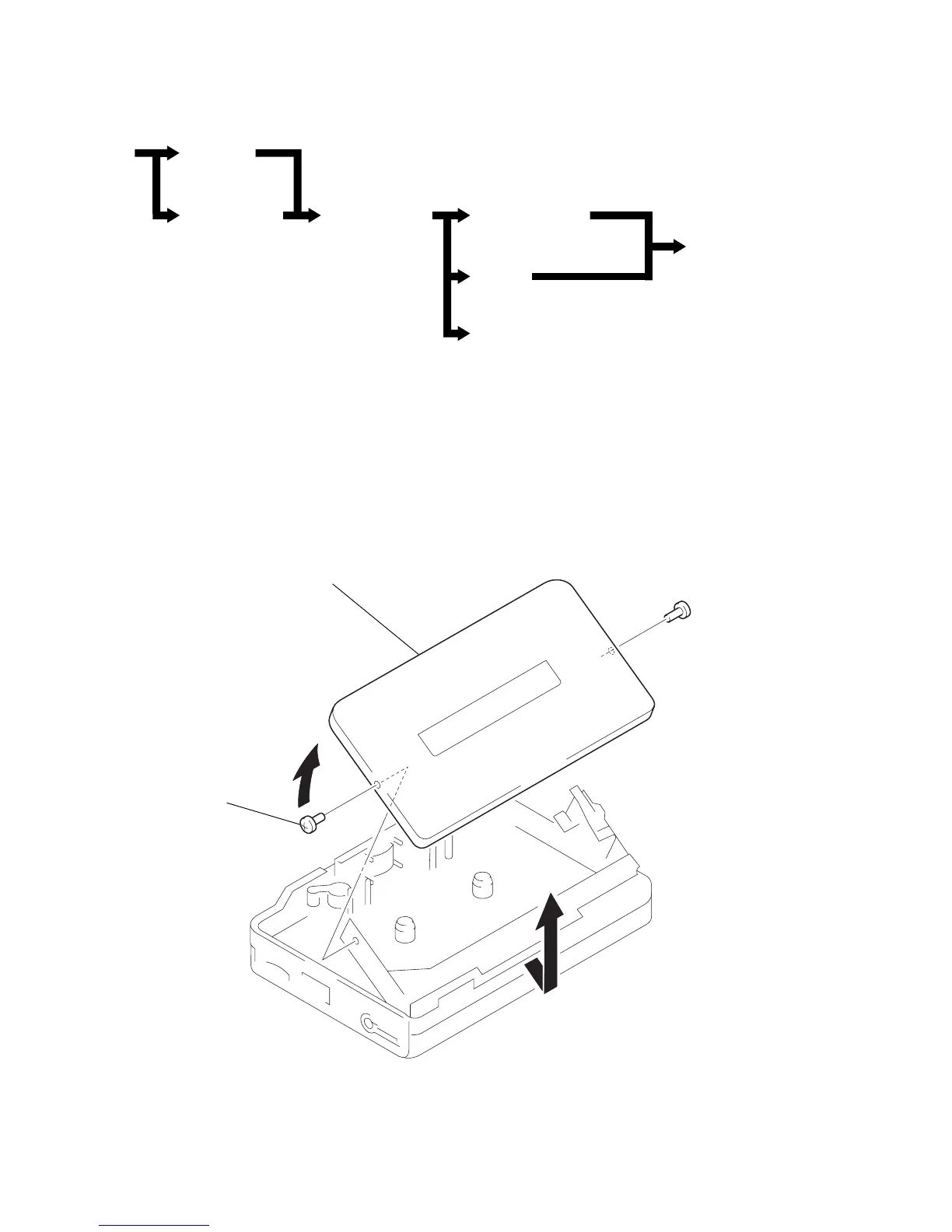

CASSETTE LID ASS’Y
3 Remove the cassette lid ass’y to
direction of the arrow
A .
2 screw (1.4 × 2)
2 screw (IB lock)
A
1
Open the cassette lid ass’y.
CASSETTE
LID ASS’Y
SET
CASE (N) ASS’Y REEL ORNAMENT MAIN BOARD
NOTE FOR INSTALLATON
BELT
MOTOR (M901)
MAGNETIC HEAD (HP901)
