SERVICE MANUAL
WM-FX463/FX465
SUPPLEMENT-1
File this supplement with the service manual.
US Model
Canadian Model
AEP Model
E Model
Subject: Change of motor (M901)

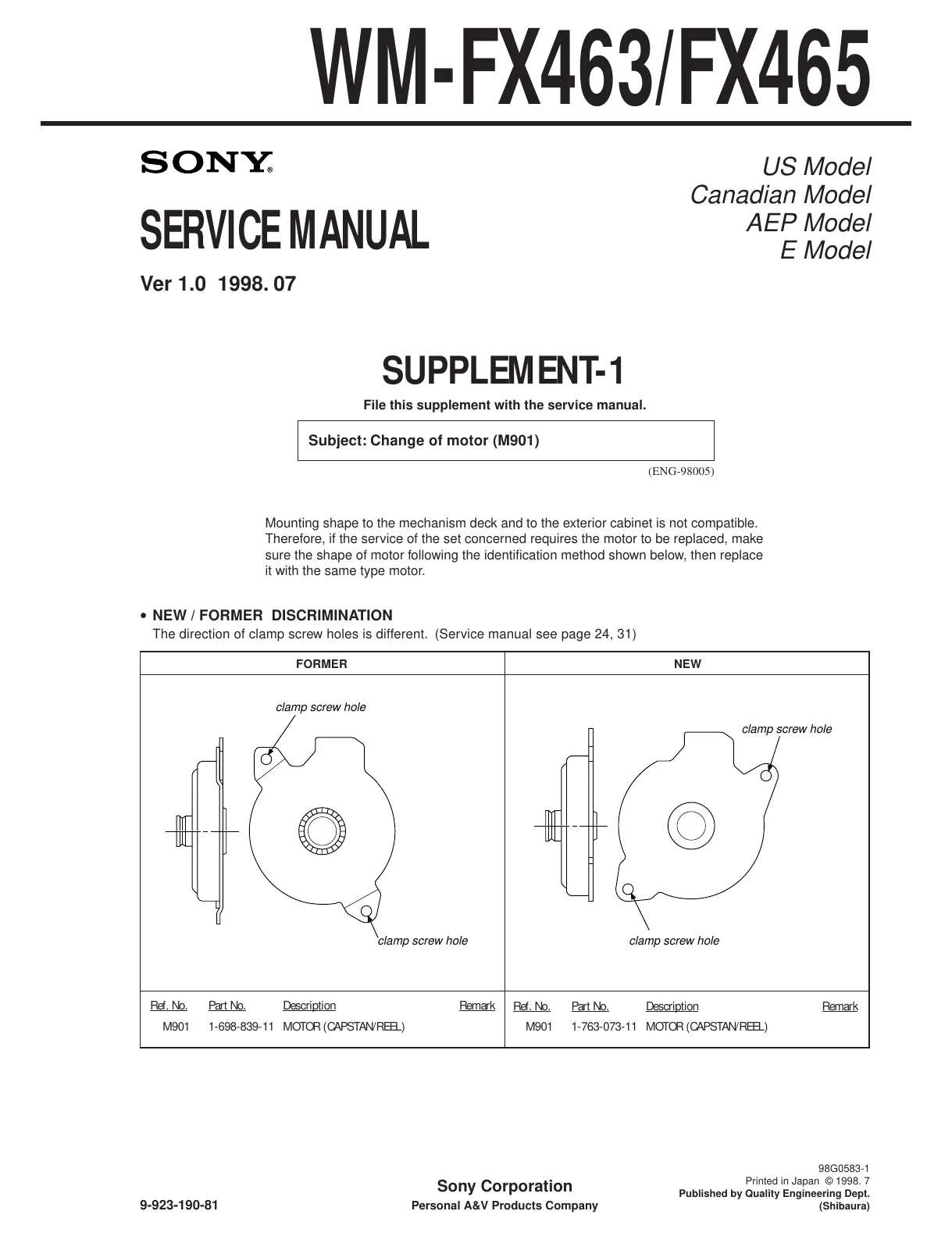

•NEW / FORMER DISCRIMINATION
The direction of clamp screw holes is different. (Service manual see page 24, 31)
Mounting shape to the mechanism deck and to the exterior cabinet is not compatible.
Therefore, if the service of the set concerned requires the motor to be replaced, make
sure the shape of motor following the identification method shown below, then replace
it with the same type motor.
Ref. No. Part No. Description Remark
FORMER NEW
Ref. No. Part No. Description Remark
M901 1-698-839-11MOTOR (CAPSTAN/REEL)
Sony Corporation
Personal A&V Products Company
98G0583-1
Printed in Japan © 1998. 7
Published by Quality Engineering Dept.
(Shibaura)9-923-190-81
M901 1-763-073-11MOTOR (CAPSTAN/REEL)
(ENG-98005)
clamp screw hole
clamp screw hol
e
clamp screw hole
clamp screw hole
Ver 1.0 1998. 07
