Sony WM-FX463

– 4 –

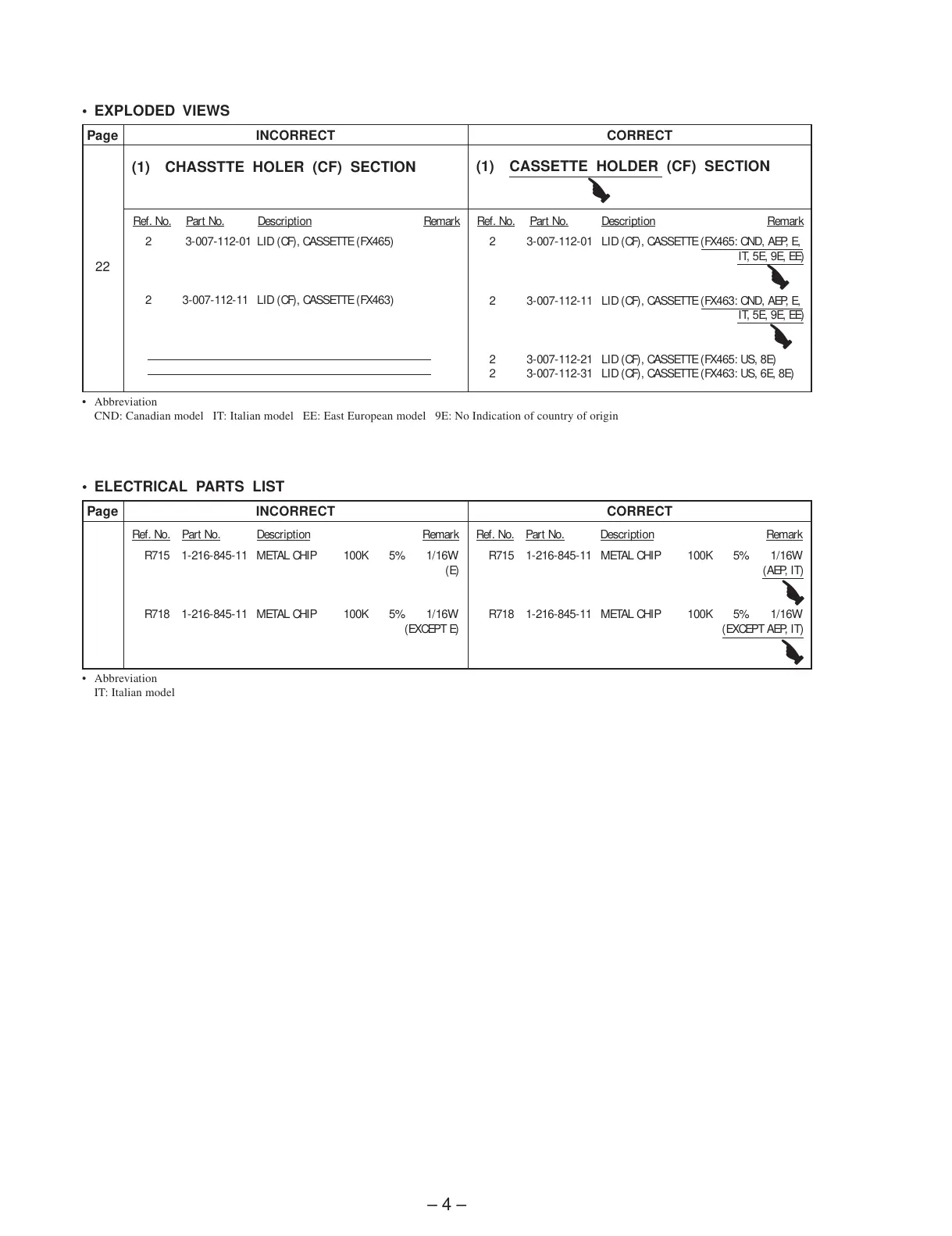

Page INCORRECT CORRECT
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
• EXPLODED VIEWS
Page INCORRECT CORRECT
Ref. No. Part No. Description Remark
2 3-007-112-01 LID (CF), CASSETTE (FX465: CND, AEP, E,
IT, 5E, 9E, EE)
2 3-007-112-11 LID (CF), CASSETTE (FX463: CND, AEP, E,
IT, 5E, 9E, EE)
2 3-007-112-21 LID (CF), CASSETTE (FX465: US, 8E)
2 3-007-112-31 LID (CF), CASSETTE (FX463: US, 6E, 8E)
Ref. No. Part No. Description Remark
22
2 3-007-112-01 LID (CF), CASSETTE (FX465)
2 3-007-112-11 LID (CF), CASSETTE (FX463)
• ELECTRICAL PARTS LIST
• Abbreviation
IT: Italian model
$
$
R715 1-216-845-11 METAL CHIP 100K 5% 1/16W
(E)
R718 1-216-845-11 METAL CHIP 100K 5% 1/16W
(EXCEPT E)
R715 1-216-845-11 METAL CHIP 100K 5% 1/16W
(AEP, IT)
R718 1-216-845-11 METAL CHIP 100K 5% 1/16W
(EXCEPT AEP, IT)
(1) CHASSTTE HOLER (CF) SECTION
(1) CASSETTE HOLDER (CF) SECTION
• Abbreviation
CND: Canadian model IT: Italian model EE: East European model 9E: No Indication of country of origin
$
$
$
