Sony WM-FX463

– 7 –
C703 1-164-733-11 CERAMIC CHIP 820PF 10% 50V
C716 1-164-237-11 CERAMIC CHIP 16PF 5% 50V
A-3016-933-A MAIN BOARD, COMPLETE (FX463: US, 8E)
A-3016-936-A MAIN BOARD, COMPLETE (FX465: US, 8E)
A-3016-968-A MAIN BOARD, COMPLETE (FX463: 5E)
A-3016-969-A MAIN BOARD, COMPLETE (FX465: 5E)
A-3021-102-A MAIN BOARD, COMPLETE (FX463: 6E)
D5 8-719-073-01 DIODE MA111-(K8).S0 (US, 6E, 8E)
D64 8-719-073-01 DIODE MA111-(K8).S0 (US, 6E, 8E)
D401 8-719-073-01 DIODE MA111-(K8).S0
FB91 1-414-235-22 INDUCTOR, FERRITE BEAD
FB101 1-414-760-21 INDUCTOR, FERRITE BEAD
FB201 1-414-760-21 INDUCTOR, FERRITE BEAD
FB301 1-414-235-22 INDUCTOR, FERRITE BEAD
FB304 1-414-760-21 INDUCTOR, FERRITE BEAD
L66 1-415-959-11 COIL (RF) (US, 6E, 8E)
L67 1-415-958-11 COIL (OSC) (US, 6E, 8E)
Q4 8-729-028-99 TRANSISTOR DTC114YUA-T106
(EXCEPT CND, 5E)
Q305 8-729-028-76 TRANSISTOR DTA114YUA-T106
S304 1-572-288-21 SWITCH, PUSH (F/R DETECT)

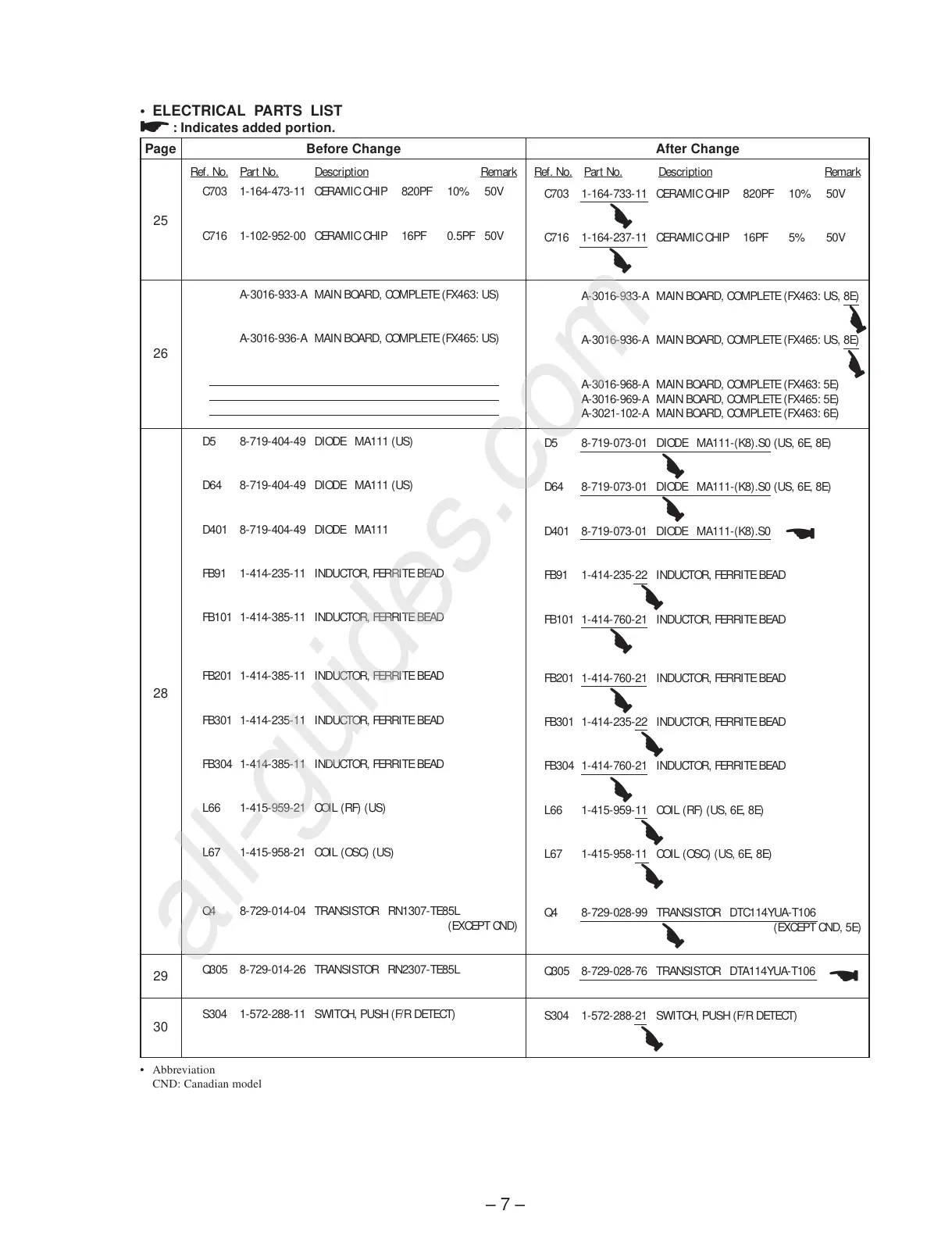

Page Before Change After Change
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
• ELECTRICAL PARTS LIST
! : Indicates added portion.
25
• Abbreviation
CND: Canadian model
C703 1-164-473-11 CERAMIC CHIP 820PF 10% 50V
C716 1-102-952-00 CERAMIC CHIP 16PF 0.5PF 50V
A-3016-933-A MAIN BOARD, COMPLETE (FX463: US)
A-3016-936-A MAIN BOARD, COMPLETE (FX465: US)
D5 8-719-404-49 DIODE MA111 (US)
D64 8-719-404-49 DIODE MA111 (US)
D401 8-719-404-49 DIODE MA111
FB91 1-414-235-11 INDUCTOR, FERRITE BEAD
FB101 1-414-385-11 INDUCTOR, FERRITE BEAD
FB201 1-414-385-11 INDUCTOR, FERRITE BEAD
FB301 1-414-235-11 INDUCTOR, FERRITE BEAD
FB304 1-414-385-11 INDUCTOR, FERRITE BEAD
L66 1-415-959-21 COIL (RF) (US)
L67 1-415-958-21 COIL (OSC) (US)
Q4 8-729-014-04 TRANSISTOR RN1307-TE85L
(EXCEPT CND)
Q305 8-729-014-26 TRANSISTOR RN2307-TE85L
S304 1-572-288-11 SWITCH, PUSH (F/R DETECT)
$
$
26
28
30
$
$
@
$
$
@
$
$
$
$
$
$
$
$
$
29
