Sony WX-C55 - Tape Mechanism Section

56
160
159
158
155
154
153
152
156
157
163
161
162
164
165
166
167
151
168
168
HP901
M904
#8
#5
not supplied

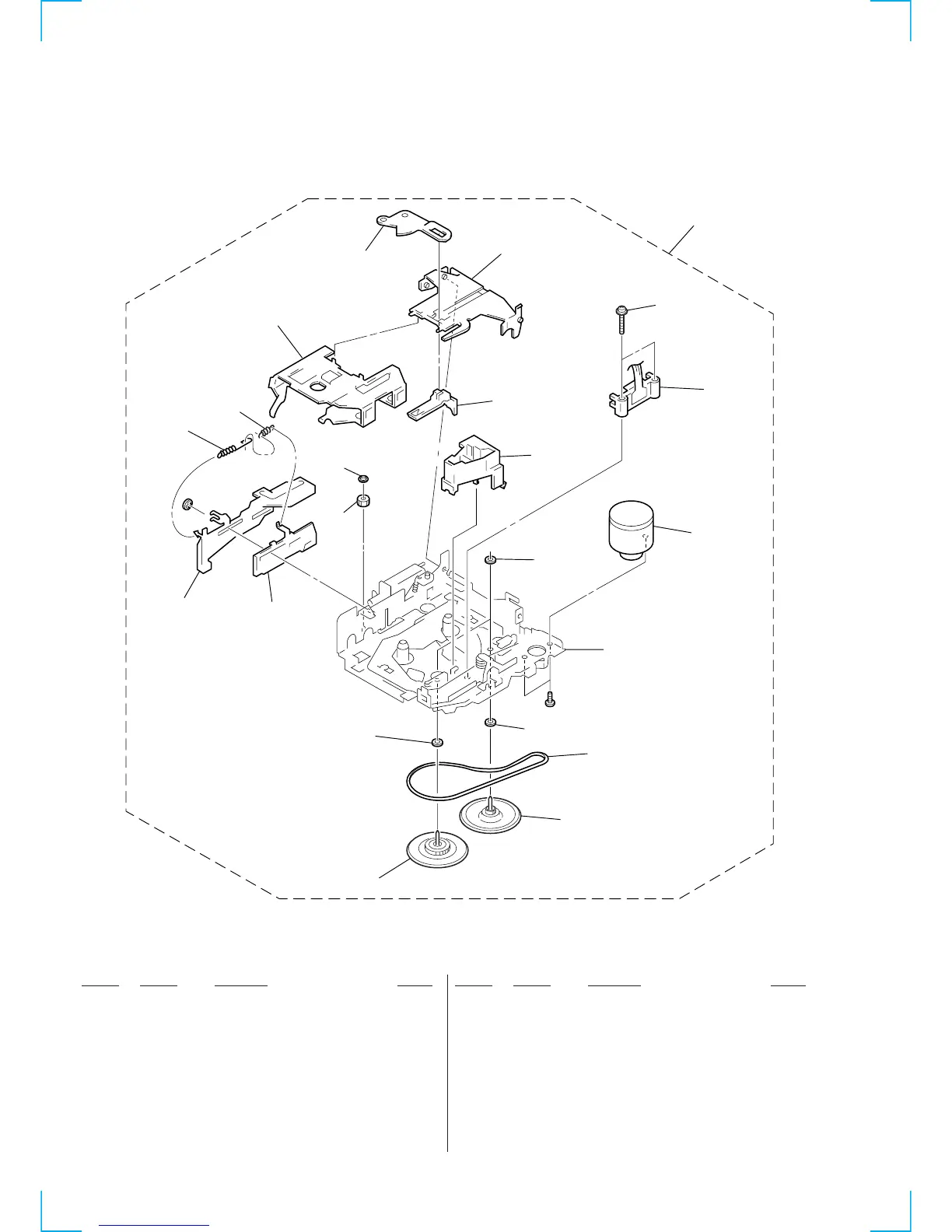

7-4. TAPE MECHANISM SECTION
(MG-25E-136)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 A-3291-667-A CLUTCH (FR) ASSY
* 152 3-019-130-01 LEVER (LDG-A)
153 3-019-131-01 LEVER (LDG-B)
154 3-020-539-01 SPRING (LD-1), TENSION
155 3-020-540-01 SPRING (LD-2), TENSION
156 3-020-542-01 GEAR (LOADING FT)
157 3-341-753-11 WASHER, POLYETHYLENE
158 3-020-533-01 HOUSING
* 159 3-020-532-01 ARM (SUCTION)
160 3-020-534-01 HANGER
161 3-933-346-01 CATCHER
162 3-933-344-01 GUIDE (C)
163 3-014-798-01 SCREW (HEAD), SPECIAL
164 3-364-151-01 WASHER
165 A-3220-607-A DECK ASSY, MECHANISM
166 3-017-302-01 BELT (25)
167 3-936-853-01 FLYWHEEL (F)
168 3-701-437-21 WASHER
HP901 1-500-157-21 HEAD, MAGNETIC (PLAYBACK)
M904 A-3291-665-A MOTOR ASSY, MAIN (CAPSTAN/REEL)
