Connecting terminal
The types and shapes of connectors available vary depending on your TV.
For the location of the connectors, refer to the Setup Guide (printed manual).

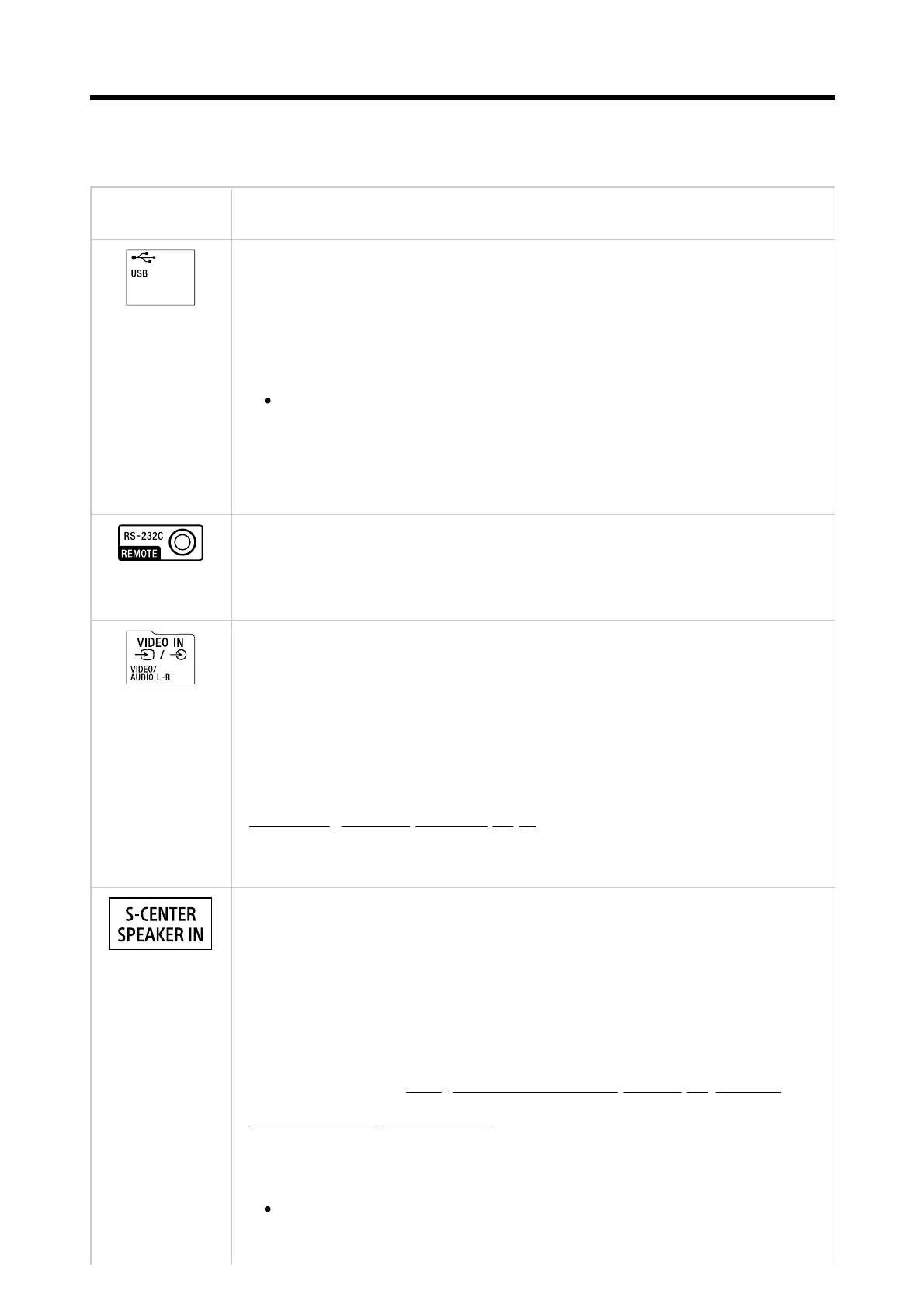

Terminal Description
USB
Connects to Digital still camera/Camcorder/USB storage media.
Note
Connecting a large USB device may interfere with other
connected devices beside it. In such a case, connect it to the
other USB input.
REMOTE RS-232C
This terminal is for service use only.
VIDEO IN
Connects to VCR/Video game equipment/DVD player/Camcorder.
For a composite connection, use an Analogue Extension Cable (not
supplied).
For more about the shape of the Analogue Extension Cable, refer to
Connecting a Blu-ray or DVD player.
VIDEO IN and S-CENTER SPEAKER IN share the same terminal.
S-CENTER SPEAKER IN
Connects the TV and an audio device with an S-CENTER OUT
output/jack using a TV centre speaker mode cable. Before connecting,
make sure you unplug the AC power cord (mains lead) of the TV and
audio device to be connected.
For details, refer to Using the TV as a centre speaker (only models
with TV centre speaker mode).
Note
If you do not use the CENTER SPEAKER IN terminal or the S-
CENTER SPEAKER IN input, you will need to perform the
