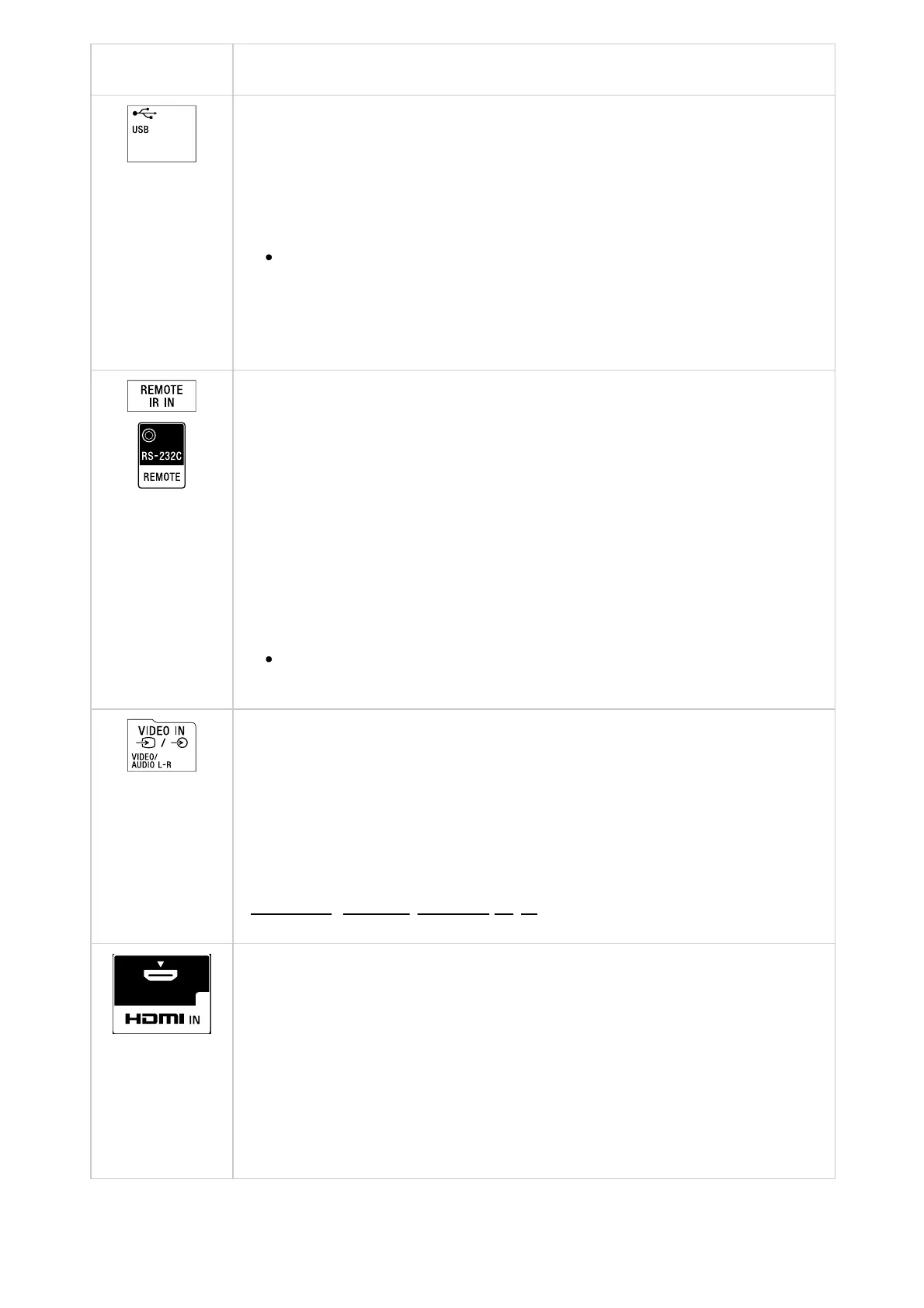

Terminal Description
USB
Connects to Digital still camera/Camcorder/USB storage media.
Note
Connecting a large USB device may interfere with other
connected devices beside it. In such a case, connect it to the
other USB input.
REMOTE IR IN / REMOTE
Connects to the Home Controller. These jacks are for receiving the
external control signal. Enables extended control of the TV using RS-
232C via the RS-232C and IR IN jacks. RS-232C: Connects to the RS-
232C terminal of the home controller. IR IN: Connects to the IR out
terminal of the home controller.
Note
Take care to not connect to headphones or an audio system.
VIDEO IN
Connects to VCR/Video game equipment/DVD player/Camcorder.
For a composite connection, use an Analog Extension Cable (not
supplied).
For more about the shape of the Analog Extension Cable, refer to
Connecting a Blu-ray or DVD player.
HDMI IN
Connects to the HDMI device. The HDMI interface can transfer the
digital video and audio on a single cable. To enjoy high quality 4K
contents, connect a Premium High Speed HDMI Cable(s) and follow
the instructions displayed on the screen to set the [HDMI signal format]
of the HDMI IN port.
™
