Sony XR-C4100 - 2 Disassembly; Front Panel Ass’y; Cover Ass’y

– 9 –
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY

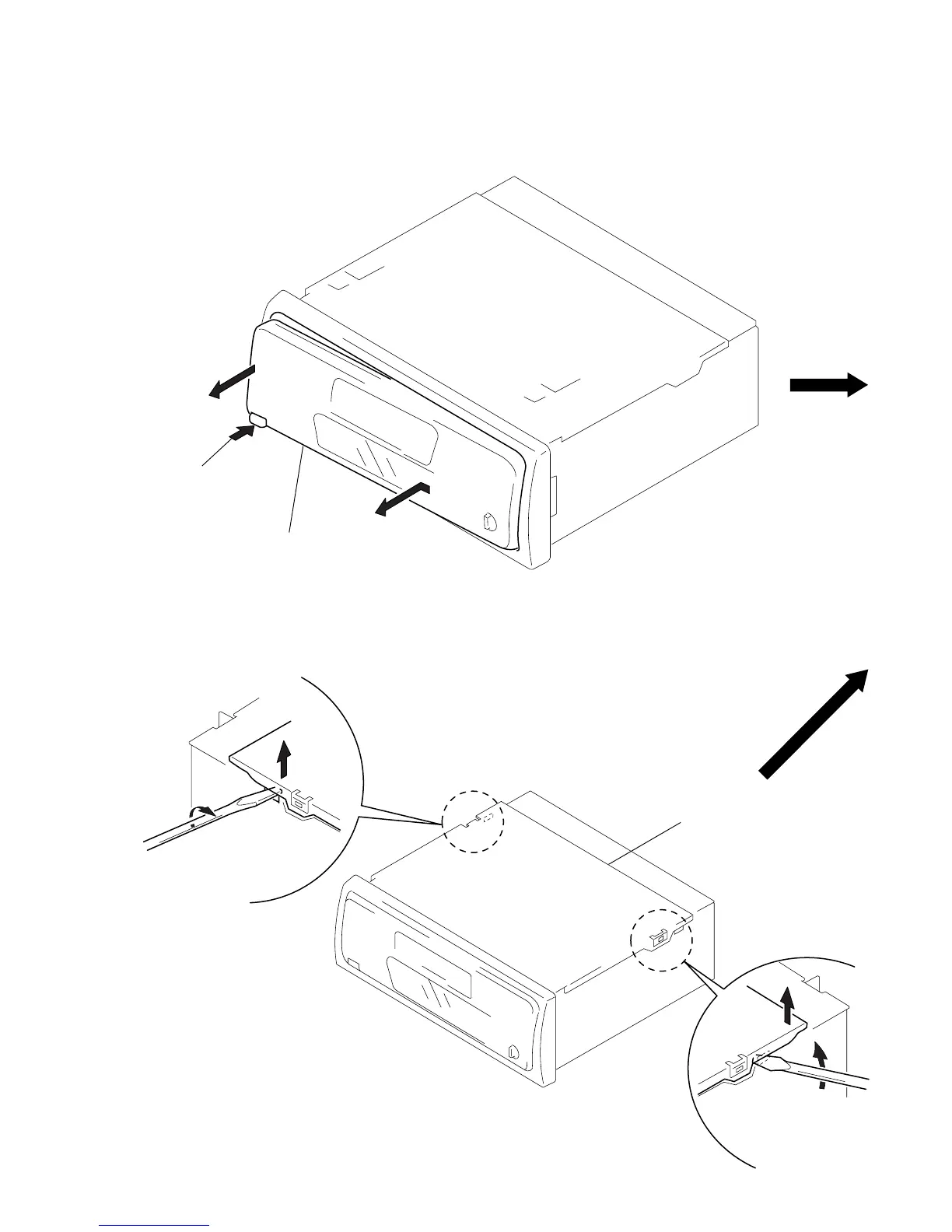

FRONT PANEL ASS’Y
COVER ASS’Y
1 Push the button
(release).
2 Remove the front panel ass'y
to the direction of the arrow
A .
A
2
1
2
1
3
cover ass'y
