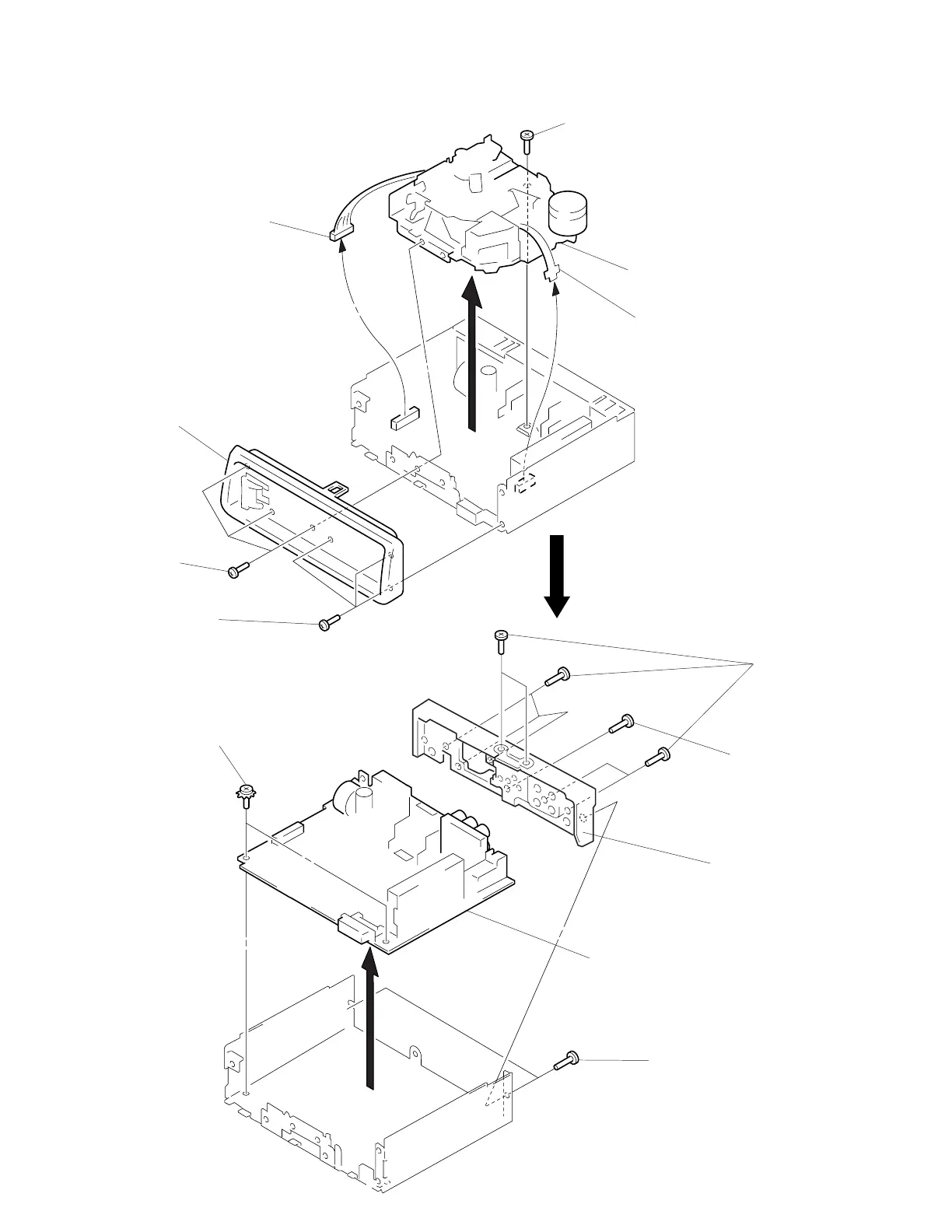

SUB PANEL, MECHANISM DECK (MG-25B-136)
5 screw
(PTT2.6 × 6)
6 mechanism deck
(MG-25B-136)
4 flexible flat cable
(CN301)
1 three screws
(PTT2.6 × 8)
1 three screws
(PTT2.6 × 8)
MAIN BOARD, HEAT SINK
2 sub panel
3 connector
(CN302)
2 two ground point
screws
4 seven screws
(PTT2.6 × 8)
1 two screws
(PTT2.6 × 8)
3 main board
5 heat sink
1 screw
(PTT2.6 × 8)
