– 12 –

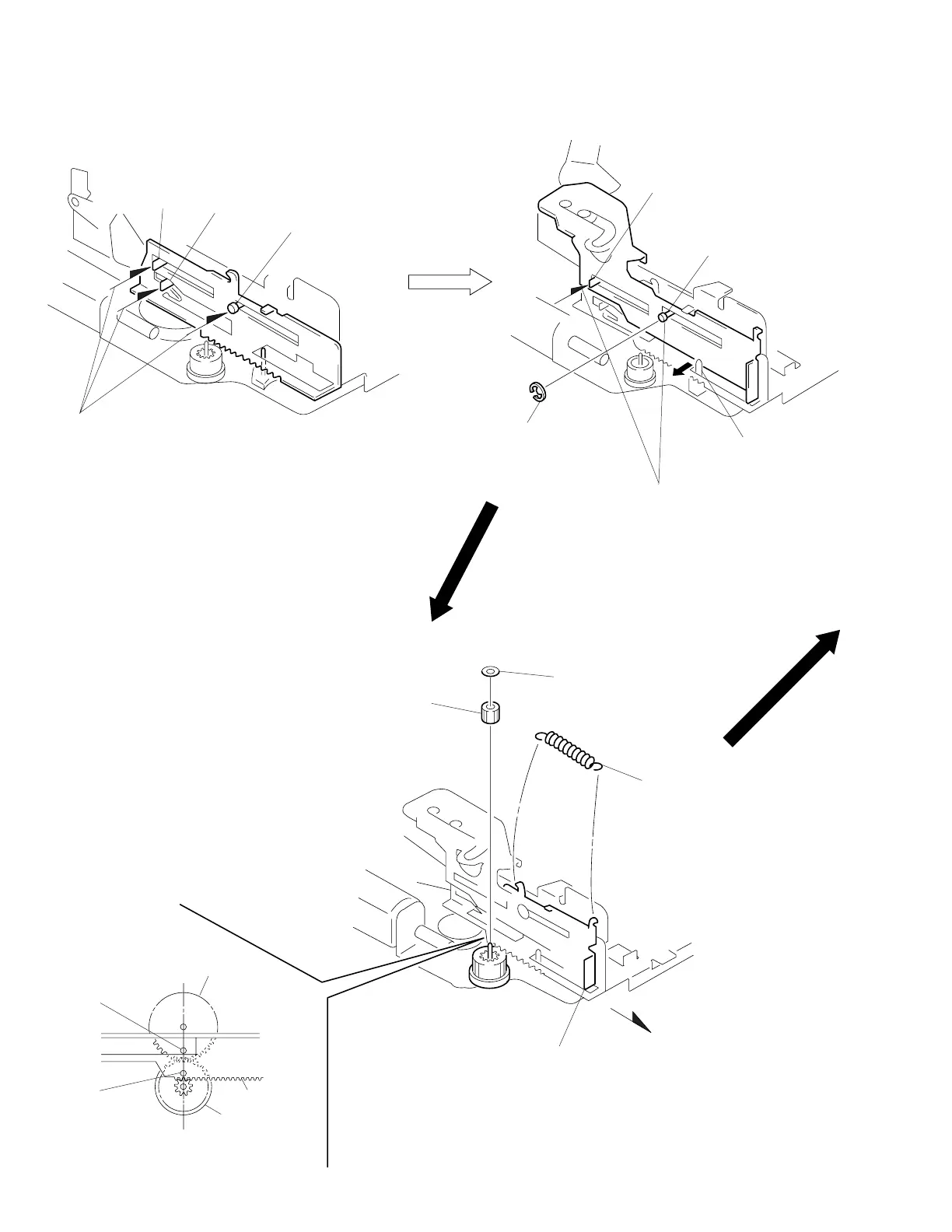

1 Fit the lever (LDG-A) on
shafts A – C and install it.
shaft A
shaft C
4 type-E stop ring 2.0
shaft A
shaft C
LEVER (LDG-A) / (LDG-B)
GEAR (LDG-FT)
3 Align hole in the gear (LDG-D)
with hole in the lever (LDG-A).
1 tension spring (lever LDG)
4 gear (LDG-FT)
5 polyethylene washer
shaft B
2 Move the lever (LDG-B)
in the arrow direction.
gear (LDG-D)
hole
hole
lever (LDG-A)
gear (LDG-FB)
3 Fit the lever (LDG-B) on
shafts A and C and
install it.
2 Pull the lever in the
arrow direction.
