XR-CA600X/CA620X
9
4
two claws
1
screw (PTT2.6
×
5)
2
cover
3
screw
(PTT2.6
×
6)
6
sub panel assy
3
two screws
(PTT2.6
×
6)
3
screw (PTT2.6
×
6)
5
flexible flat (14core) cable
(CN701)
4
claw

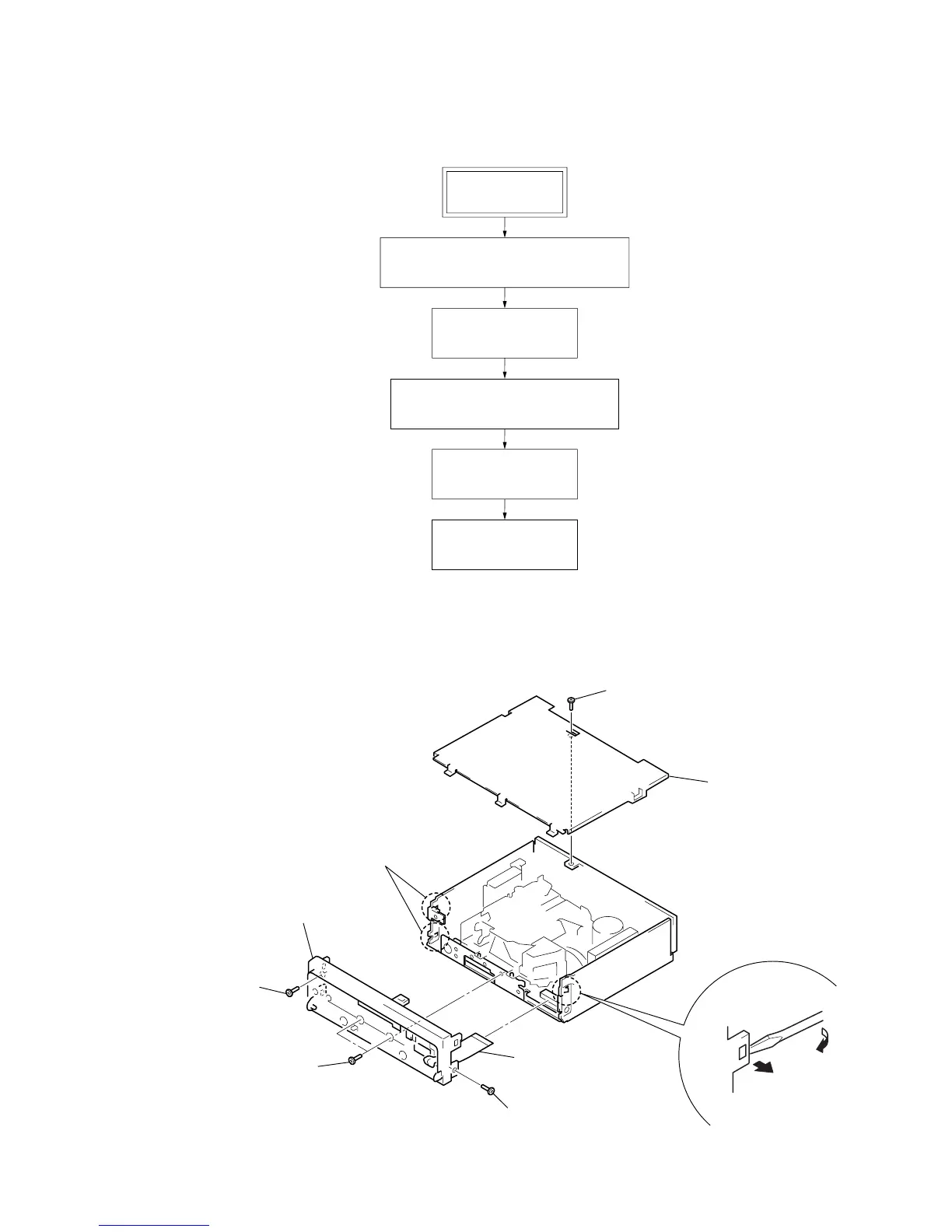

SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
2-2. SUB PANEL ASSY
This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
SET
2-2. SUB PANEL ASSY
(Page 9)
FRONT PANEL SECTION
Note: Illustration of disassembly is omitted.
2-4. MAIN BOARD
(Page 10)
2-5. HEAT SINK (2P)
(Page 11)
2-3. MECHANISM DECK (MG-25F-136)
(Page 10)
