Sorelle 1050 - Dresser Frame Assembly

8
ASSEMBLY
(A)
(C-3)

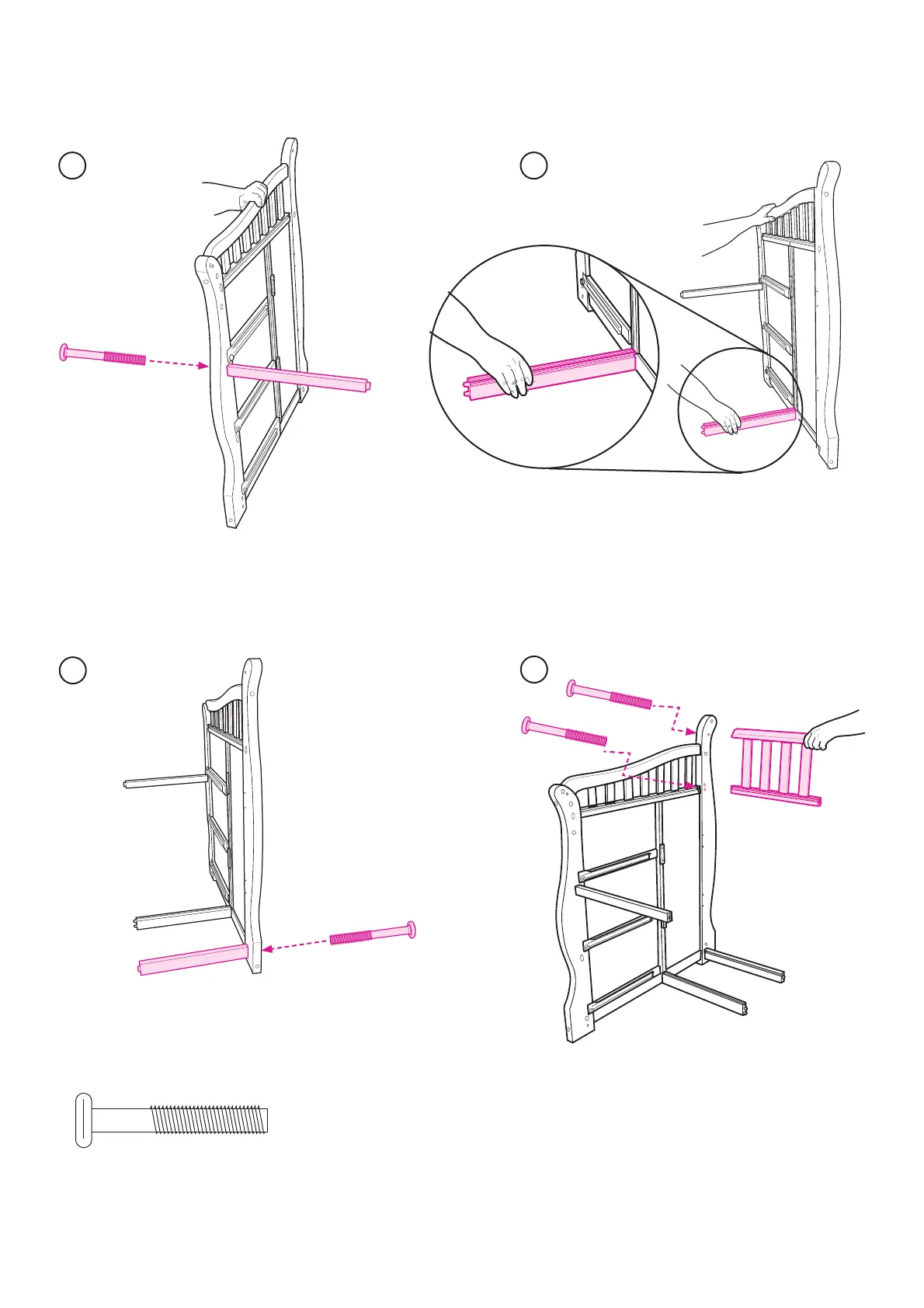

1. Insert Wooden Notch of Support Bar (C-3) into
opening on front side of Middle Panel (A) and
secure with Bolt (F). Figure 1.
1
Parts Needed: Refer to pg. 5, “Dresser Parts”
(F)
2. Insert two (2) wooden pegs on Support Bar
(C-5) into openings on Middle Panel (A). Figure 2.
NOTE: Grooves face towards back of unit.
(A)
(C-5)
2
(A)
3. Insert wooden notch on Rear Support Bar (C-6)
into openings on Middle Panel (A) and secure
with Bolt (F). Figure 3.
3
(C-6)
(F)
(F) (x4)
(A)
4. Insert wooden notch on Decorative
Support Bar (C-7) into openings on Middle Panel
(A) and secure top and bottom of bar using two
(2) Bolts (F). Figure 4.
4
(C-7)
(F)
(F)
