Assembly instructions
Compact-Line kit
www.sorotec.de V 2.1.0

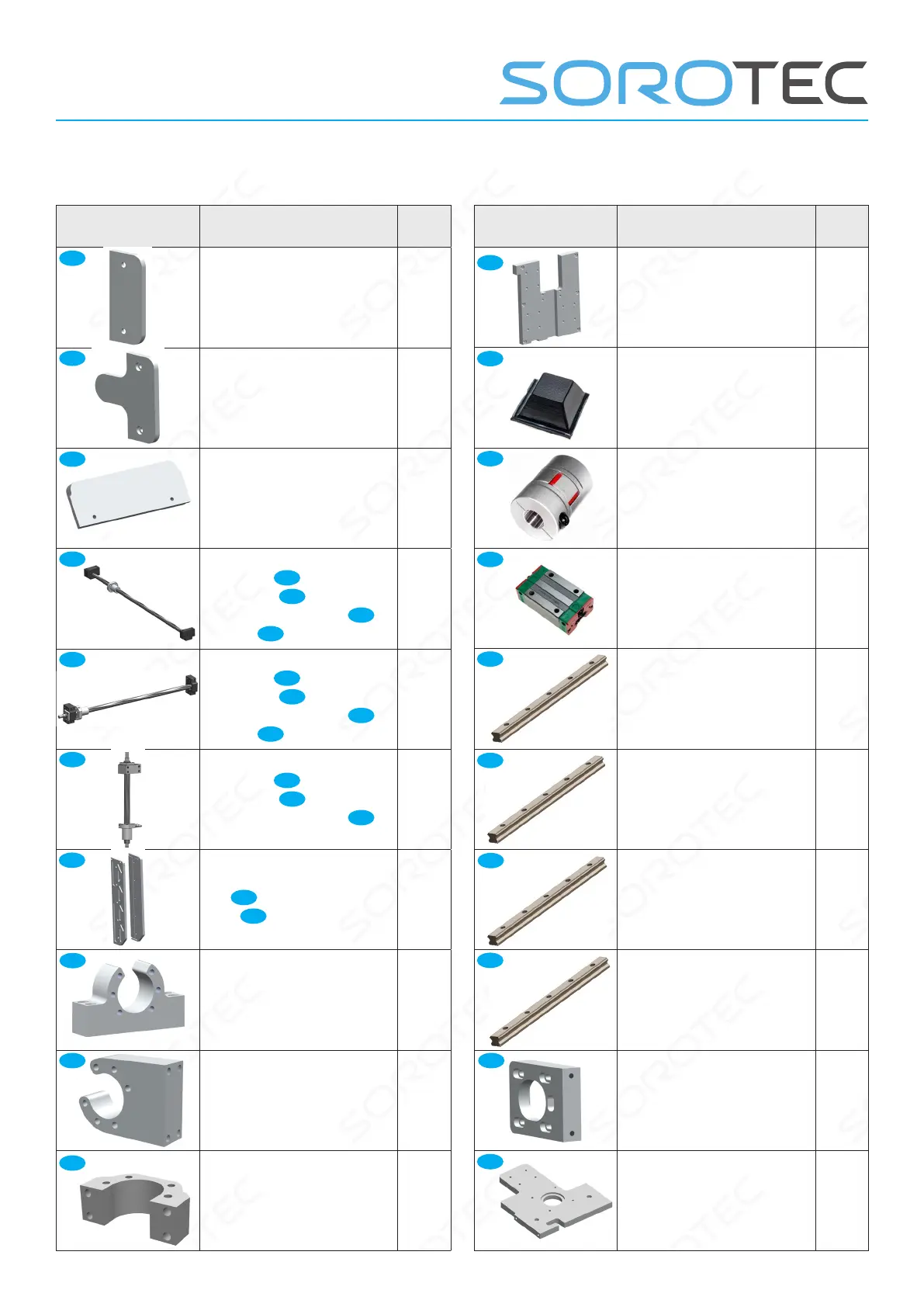

Scope of delivery
Illustration Description Num-
ber
end plate Y right
CL.FT.015.01
1
end plate Y left
CL.FT.016.01
1
stop plate Z
1)
CL.FT.002.01
1
drive X:
xed brg.
4f
CL.ZAN.FL16.H
ball screw
4s
s. S. 6
recirculating ball nut
4k
t. brg.
4l
CL.ZAN.LL16.H
1
drive Y:
xed brg.
5f
CL.ZAN.FL16.H
ball screw
5s
s. S. 6
recirculating ball nut
5k
t. brg.
5l
CL.ZAN.LL16.H
1
drive Z
1)
:
xed brg.
6f
CL.ZAN.FL16.H
ball screw
6s
recirculating ball nut
6k
CL.ZAN.KGS1605.0270KH
1
bracing Z
1)
:
left
7l
CL .FT.004.01
right
7r
CL.FT.005.01
1
ange bracket X
CL.FT.007.01
1
ange bracket Y
CL.FT.008.01
1
ange bracket Z
CL.FT.009.01
1
1)
See page 6 for gantry elevation parts
1
2
3
4
5
6
7
8
9
10
Illustration Description Num-
ber
guide plate Z
CL.FT.001.01
1
rubber pad
(self-adhesive)
AL.EZB.0109
5
claw coupling
MZK.080.100.V25
2
carriage
ZFW.HGH20CA.ZA
10
linear rail X:
CL 04XX: 589 mm lg.
CL 06XX: 789 mm lg.
CL 08XX: 989 mm lg.
see page 6
2
linear rail Y above:
CL XX03: 420 mm lg.
CL XX04: 520 mm lg.
CL XX05: 620 mm lg.
see page 6
1
linear rail Y below:
CL XX03: 479 mm lg.
CL XX04: 579 mm lg.
CL XX05: 679 mm lg.
see page 6
1
linear rail Z 1):
220 mm lg.
320 mm lg.
CL.ZFS.HGR20R.0220
CL.ZFS.HGR20R.0320
1
1
motor ange Y
CL.FT.014.01
1
motor ange Z
CL.FT.006.01
1
11
12
13
14
15
16
17
18
19
20
