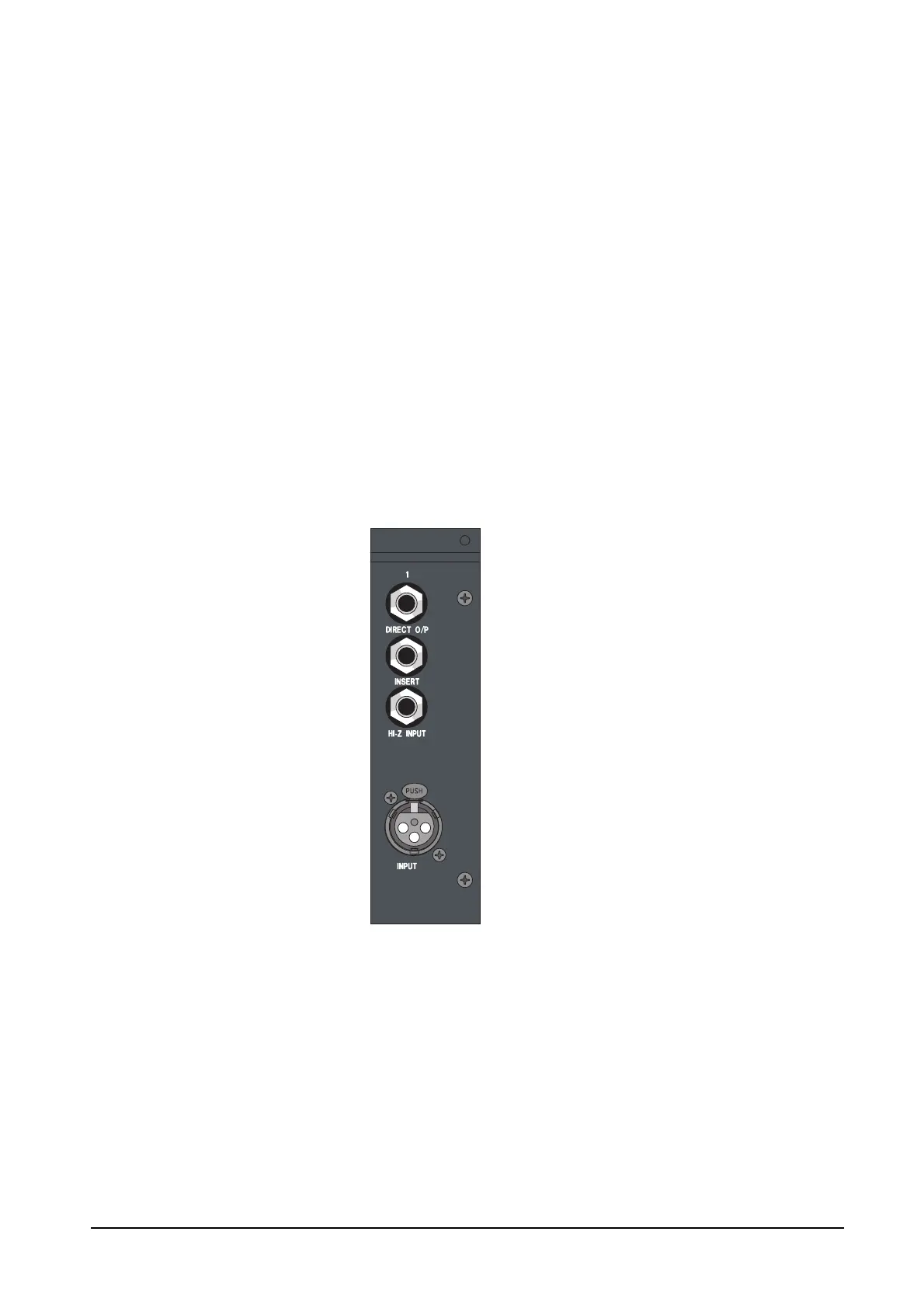

5HDU&RQQHFWRUV
,1387SLQIHPDOH;/5
Pin 1 ........... Ground
Pin 2 ........... Signal Hot
Pin 3 ........... Signal Cold
+L=,1387756-DFN
Tip .............. Signal Hot
Ring............ Signal Cold
Sleeve ........ Ground
,16(57756-DFN
Tip .............. Return Signal
Ring............ Send Signal
Sleeve ........ Ground
',5(&7287387756-DFN
Tip .............. Signal Hot
Ring............ Ground Sense
Sleeve ........ Ground
 .)XQFWLRQDO'HVFULSWLRQ
