SoundCraft K2 - Page 36

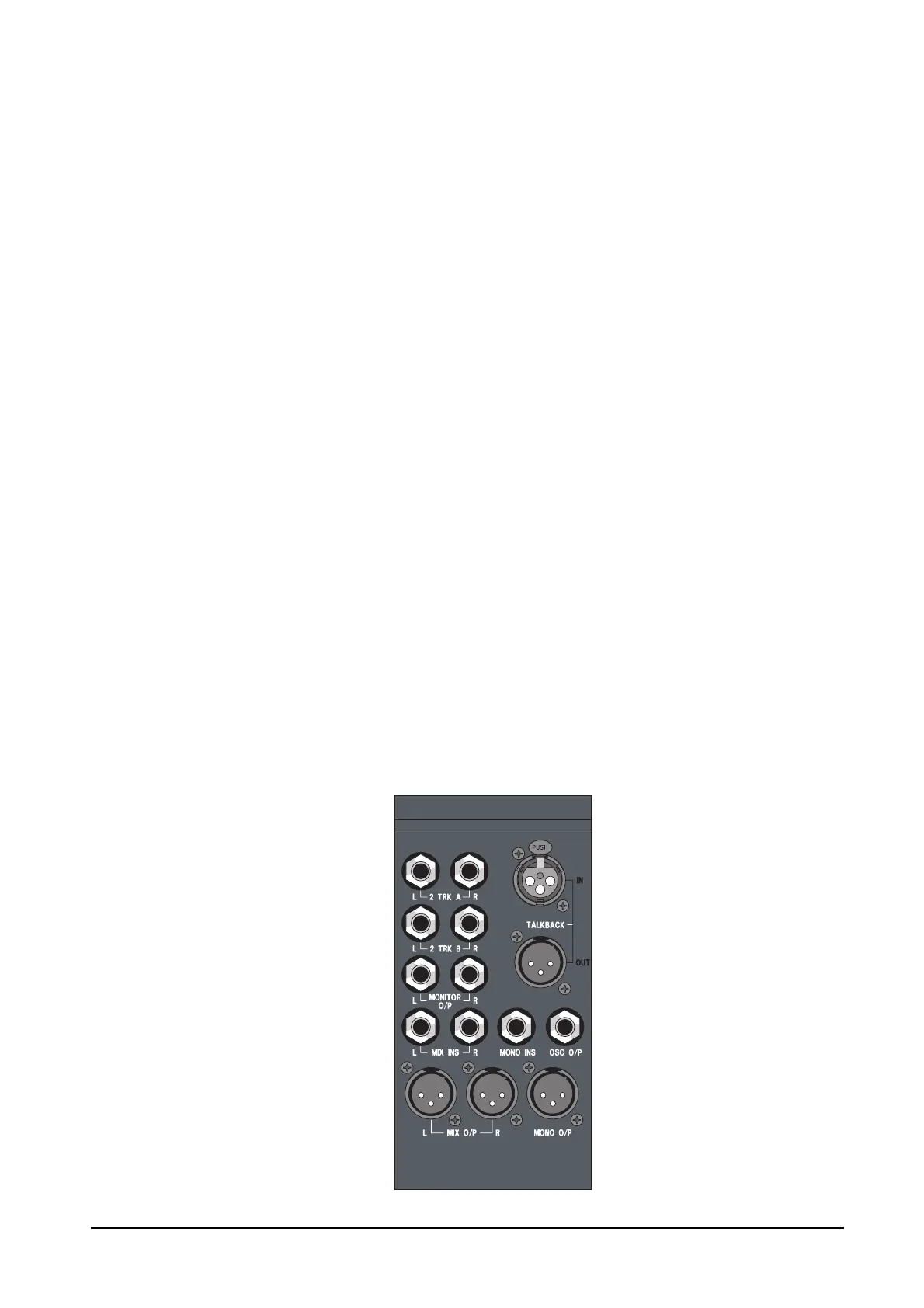

5HDU&RQQHFWRUV
(;7(51$/7$/.%$&.,17$/.%$&.0,&,1SLQIHPDOH;/5
Pin 1 ........... Ground
Pin 2 ........... Signal Hot
Pin 3 ........... Signal Cold
,16(5732,176756-DFN
Tip .............. Return signal
Ring............ Send signal
Sleeve ........ Ground
75$&.5(78516756-DFN
Tip .............. Signal Hot
Ring............ Signal Cold
Sleeve ........ Ground
021,7252873876756-DFN
Tip .............. Signal Hot
Ring............ Ground Sense
Sleeve ........ Ground
0,;/5021228738767$/.%$&.287SLQPDOH;/5
Pin 1 ........... Ground
Pin 2 ........... Signal Hot
Pin 3 ........... Signal Cold
26&,//$725287387756-DFN
Tip .............. Signal Hot
Ring............ Signal Cold
Sleeve ........ Ground
3+21(6287387756-DFNPRXQWHGXQGHUWKHDUPUHVW
Tip .............. Left Signal
Ring............ Right Signal
Sleeve ........ Ground
 .)XQFWLRQDO'HVFULSWLRQ
