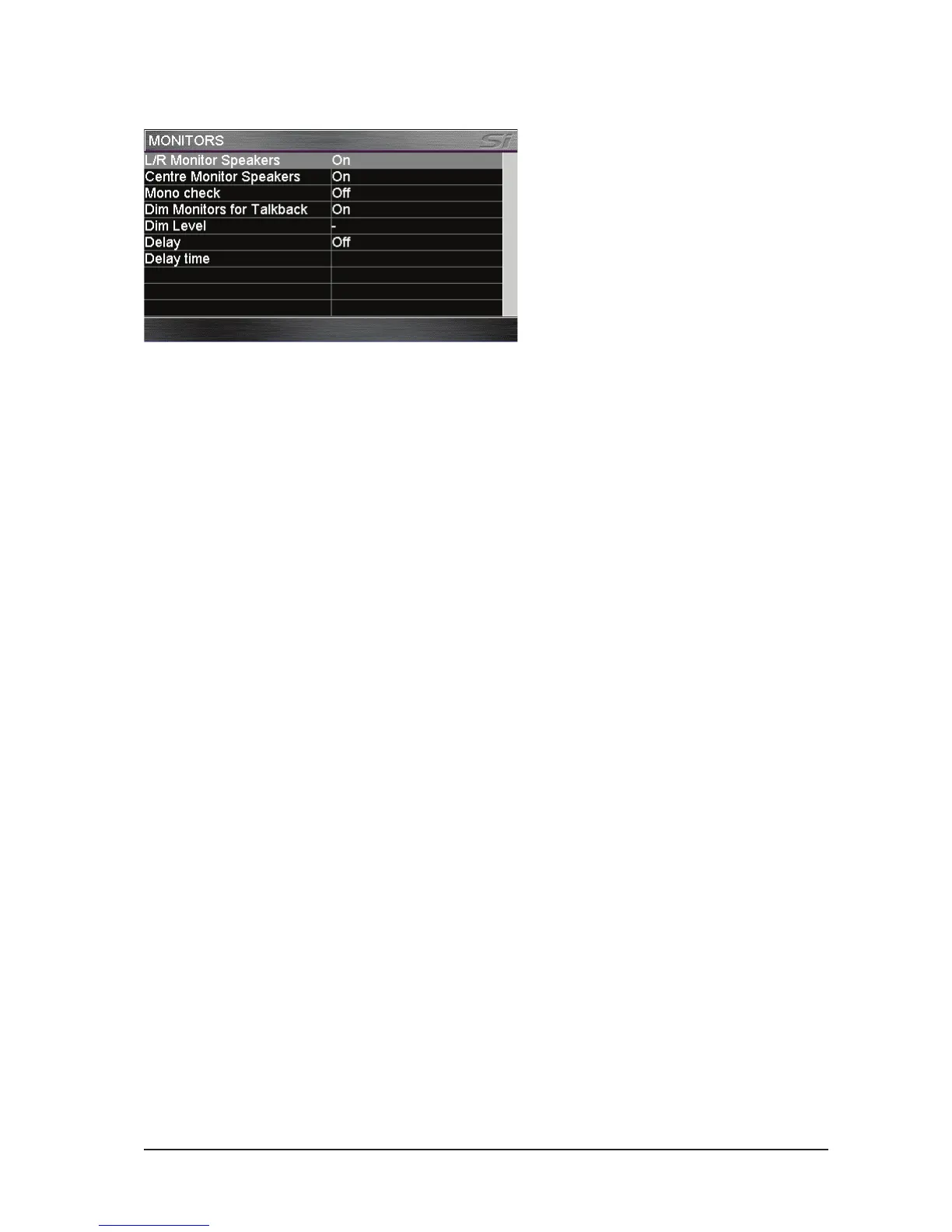

MONITOR
This page has the following elds:
L/R Monitor Speakers
Turns L/R monitor speakers on/off
C Monitor Speaker
Turns C monitor speaker on/off
Monitor Source Playback
For future funtionality.
Mono Check
It routes the monitor system’s left signal and the right signal to both left and right monitor outputs.
Dim Monitors
The monitor signal can be enabled to dim by the value set in this eld below when the internal talkback
button and an output bus solo button are selected.
This prevents, for example, the engineer’s wedge signal being picked up by the int. talkback mic.
Dim Level
This sets the dimming level, see eld above.
Delay
This eld enables the delay which may be set in the eld below.
Delay Time
This sets the delay time from 0 to 1 second. The units (frames/msec/sec) are auto-selected.
To Next Page
