Soundstream VCD-22B - Installation (Continued); INSTALLATION DIAGRAM; Wiring Connections; Removal of the Main Unit

INSTALLATION(CONT.)

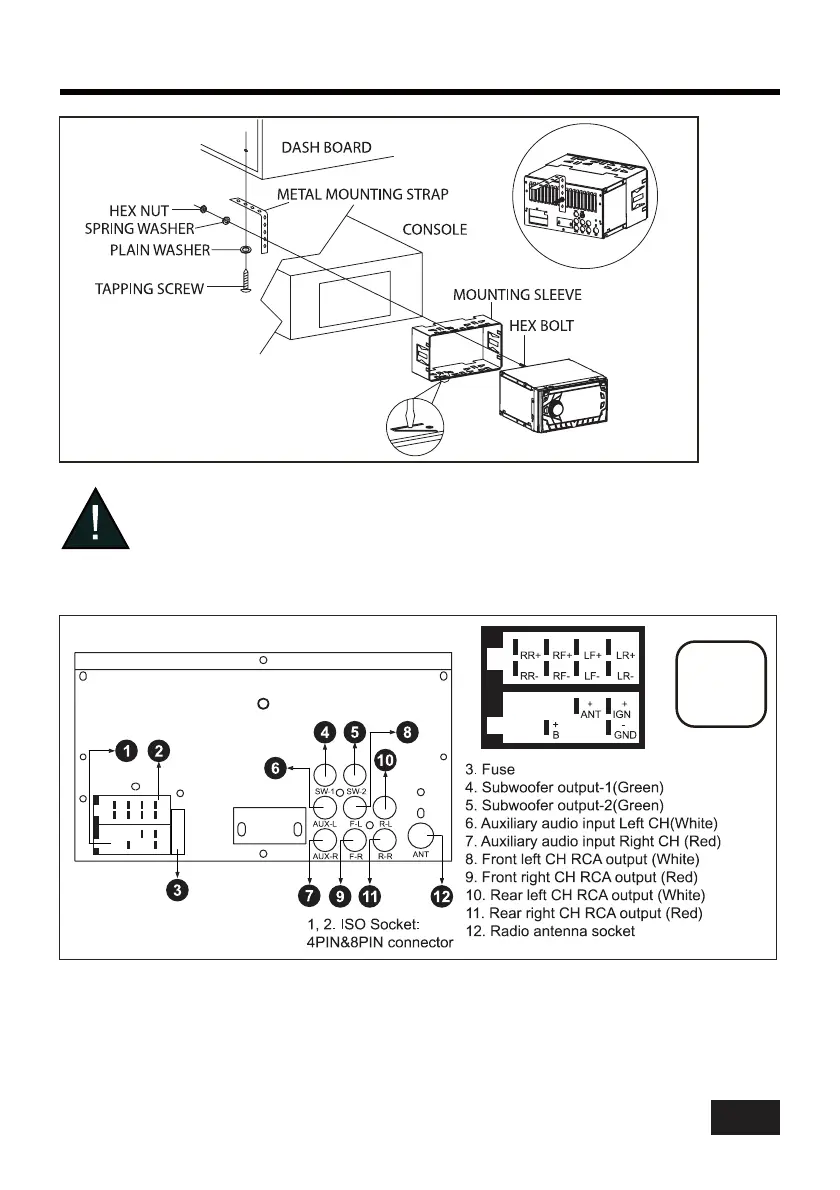

INSTALLATION
DIAGRAM
- Only use speakers with 4 ohms impedance.
- Do not attach the control panel to the chassis before wiring is complete.
- The maximum current of the auto antenna is 200mA.
WIRING DIAGRAM
CAUTION
+12V DC
NEGATIVE
GROUND
3
Removal of the Main Unit
1. Remove the metal strap from the main unit.
2. Remove the plastic trim out from the main unit.
3. Insert a bracket key into the left and right side of the main unit and draw the unit out of
the mounting sleeve.
Wiring Connections
10A
10A
