Southwire 14070T - Meter Description and Display; Symbols Used on LCD Display

0 10 20 30 40 50 60
LoZ mV AnF M k
AUTO HOLD REL PEAK MAX MIN AVG
AC+DC
5

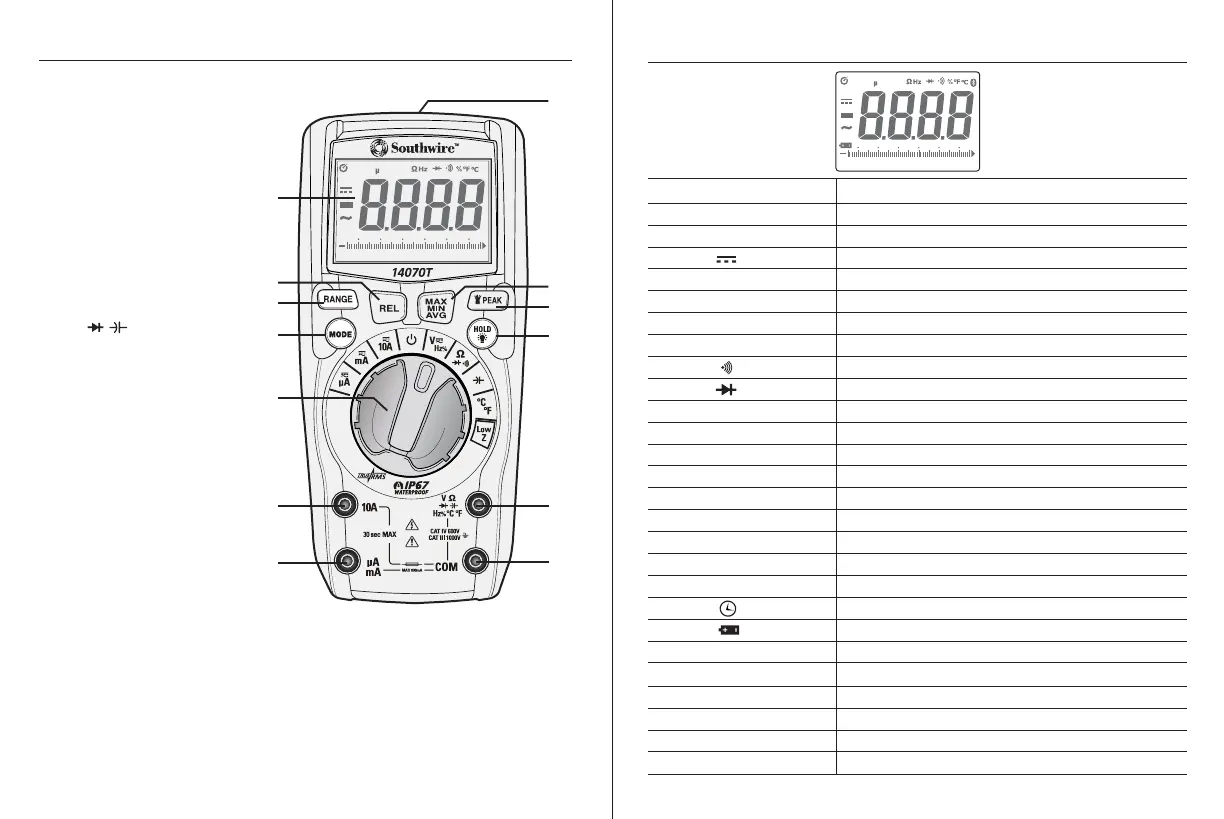

Meter Description
1.
2.
5.
6.
8.
9.
10.
12
13.
11.
7.
3.
4.
1. LCD display
2. REL button
3. RANGE button
4. MODE button
5. Rotary function switch
6. 10A input jack
7. µA, mA input jack
8. COM input jack
9. V/Ω/ / /Hz %/°C °F
input jack
10. HOLD/Backlight button
11. Flashlight/PEAK button
12. MAX/MIN/Average button
13. Flashlight
6
Symbols Used on LCD Display
V
A
~
-
Hz
%
Ω
F
°F
°C
n
µ
m
k
M
OL
AUTO
LOZ
HOLD
MAX/MIN/AVG
Peak
REL
Volts
Amperes
Alternating current
Direct current
Minus sign
Hertz (frequency)
Percent (duty cycle)
Ohms
Continuity
Diode test
Farads (capacitance)
Degrees Fahrenheit
Degrees Celsius
nano (10
-9
)
micro (10
-6
)
milli (10
-3
)
kilo (10
3
)
mega (10
6
)
Overload
Auto Power Off
Low battery
Autoranging
Low Z (impedance)
Display hold
Maximum/Minimum/Average
Peak hold
Relative
