Southwire 16030A - Battery Replacement; Specifications

11

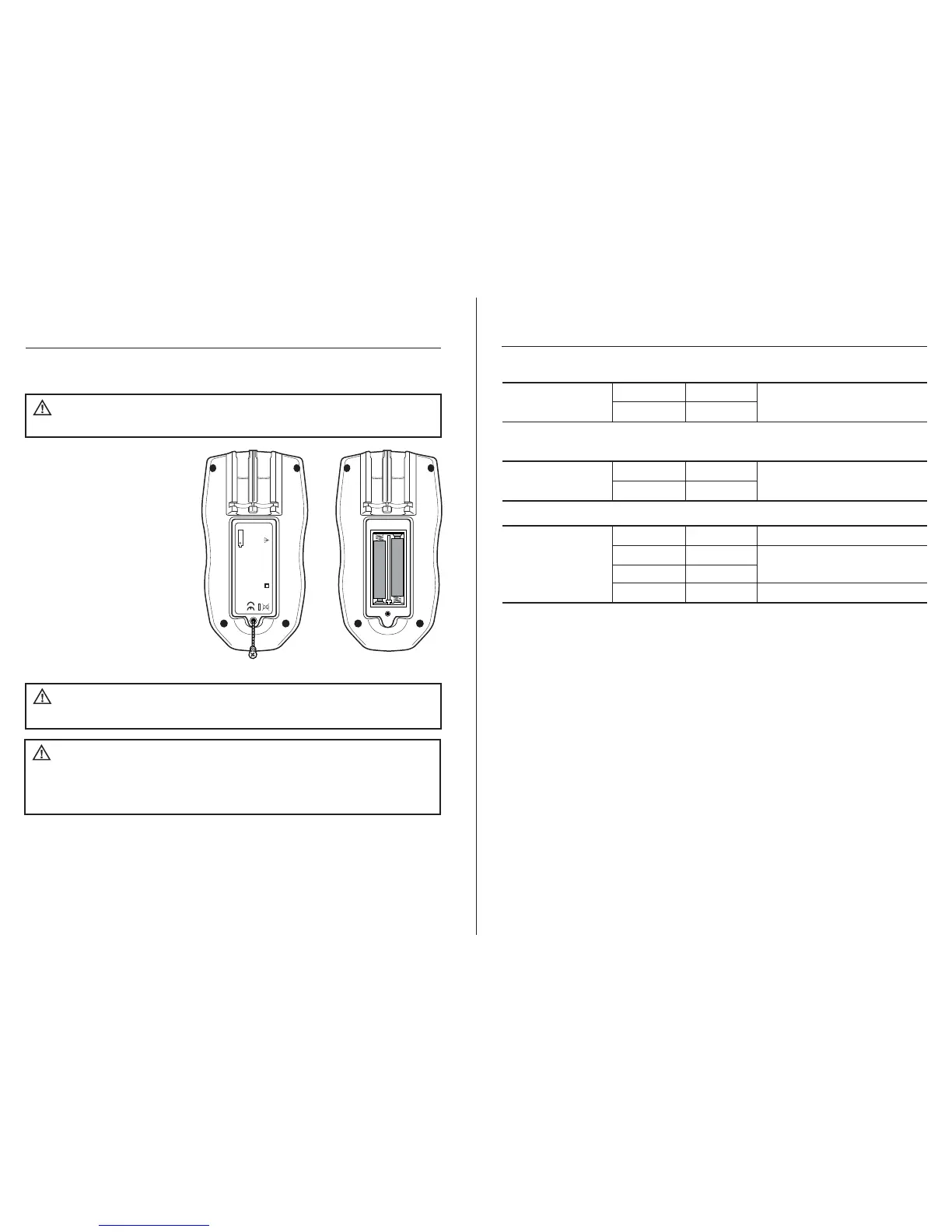

Operation cont.
1. Remove the Phillips
screw(s) on the battery cover.
2. Remove the battery cover.
3. Replace batteries with two
AAA batteries.
4. Observe polarity as shown
inside battery compartment.
5. Install the battery cover
and tighten the screw(s).
To avoid electric shock, do not operate meter until the
battery cover is securely fastened to the meter.
WARNING:
To avoid electric shock, remove the test leads
from the meter before removing the battery cover.
WARNINGS:
Battery Replacement
TO AVOID ELECTRIC SHOCK, REMOVE ALL INPUTS BEFORE OPENING BATTERY DOOR.
1.5V AAAX2
WARNING
+
+
-
-
When replacing the battery or fuses, be sure to secure
the battery compartment door firmly to maintain the waterproof and dust
proof integrity of the meter. Loose or overtightened screws, or an improperly
seated o-ring may compromise the meter's water and dust ingress protection.
WARNING:
12
Specifications
400.0V
600V
All AC voltage ranges are specified from 5% to 100% of range.
【1】Below 40Ω: ±(1.0% + 18)
Accuracy is given at 65°F to 83°F (18°C to 28°C), less than 75% relative humidity
0.1V
1V
±(1.0% +5 digits)
AC Voltage
(40Hz to 1kHz)
Function Range Resolution Accuracy ± (% of reading + digits)
400.0V
600V
0.1V
1V
±(1.0% +5 digits)
DC Voltage
Function Range Resolution Accuracy ± (% of reading + digits)
400.0Ω
4.000kΩ
40.00kΩ
400.0kΩ
0.1Ω
1Ω
10Ω
100Ω
±(2.0% + 10) 【1】
±(2.0% + 10)
±(2.0% + 10)
Resistance
Function Range Resolution Accuracy ± (% of reading + digits)
