3

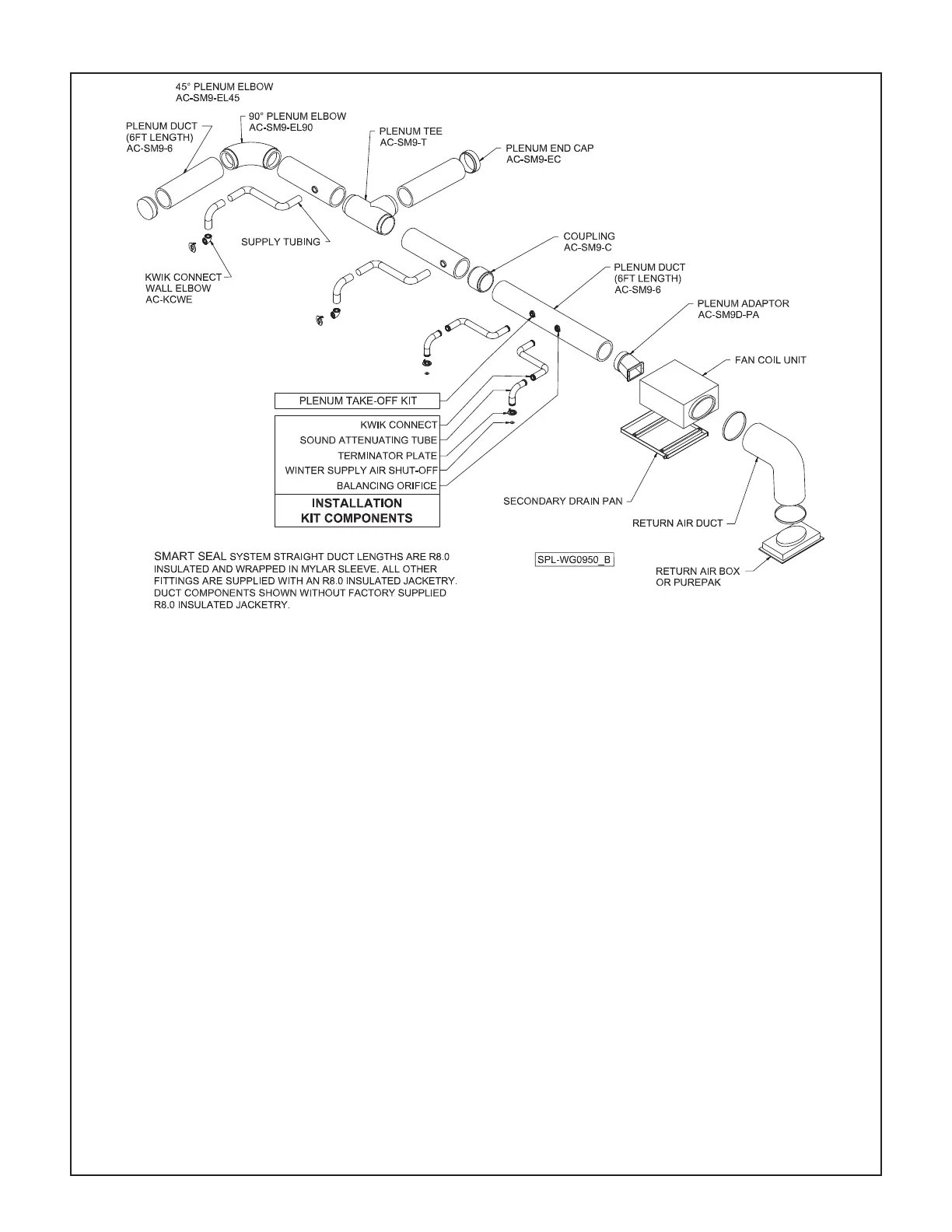

FIGURE 1.1: AIR DISTRIBUTION SYSTEM COMPONENTS
RETURN AIR BOX (BM-9149, AC-RBF-3, BM-9169):
Each includes filter grill with metal frame, permanent
filter, and 2 clamp bands. BM-9149 is for ESP-2430J.
AC-RBF-3 is for ESP-3642J and BM-9169 is for ESP-4860J.
RETURN AIR DUCT (BM-6808-10, BM-6809-10,
BM-6839-10): Flexible, 10 feet long with round shape.
BM-6808-10 (15" dia.) for ESP-2430J. BM-6809-10 (19"
dia.) for ESP-3642J and BM-6839-10 (24" dia.) is for
ESP-4860J .
PLENUM ADAPTOR: 9" round OR 10" X 10" square
metal component to attach plenum duct to fan coil unit.
PLENUM DUCT & COMPONENTS: May be 9" round
sheet metal or 10" X 10" (O.D.) square, fiberboard duct
types as specified by the installing contractor. Above
layout is shown as an illustrative Smart Seal assembly
reference only.
R6 SUPPLY TUBING (AC-ST6-100): Flexible, R6 insulated,
2" I.D. and 3-1/4" O.D. Each section is 100 feet long.
R8 SUPPLY TUBING (AC-ST8-75): Flexible, R8 insulated,
2" I.D. and 5-3/8" O.D. Each section is 75 feet long.
INSTALLATION KITS: Contains a specified amount
of sound attenuating tubes, kwik-connects, terminator
plates (incl. spring clips & screws), winter supply air
shut-offs and a balancing orifice set to complete
installation of room outlets. Supplied in (2) [AC-IKLT-2]
and (5) [AC-IKLT-5] outlet boxed quantities.
PLENUM TAKE-OFF KIT: Contains a specific amount
of plenum take-offs, gaskets and fasteners to complete
installation of room outlets. Take-offs available for round
sheet metal or square fiberboard duct as specified by
installing contractor. Supplied in (2) [AC-TKMR-2] and
(5) [AC-TKMR-5] outlet boxed quantities for round sheet
metal and (2) [AC-TKFS-2] and (5) [AC-TKFS-5] outlet
boxed quantities for square fiberboard.
KWIK CONNECT 90º WALL ELBOW (AC-KCWE): To
allow for wall terminations in 2" X 4" stud spaces.
SECONDARY DRAIN PAN: Specifically sized for
SpacePak horizontal fan coil units. Constructed of
durable polyethylene. Fan coil unit sets directly on
top and can be installed with threaded rod.
PLIERS (SPC-72): To assure full setting of all clips
(fasteners) in plenum take-off (not shown).
PLENUM HOLE CUTTER (SPC-71-10): To cut 2" hole
in fiber board for plenum take-off installation (not
shown).
