Form 43471000
May 2021 -19-

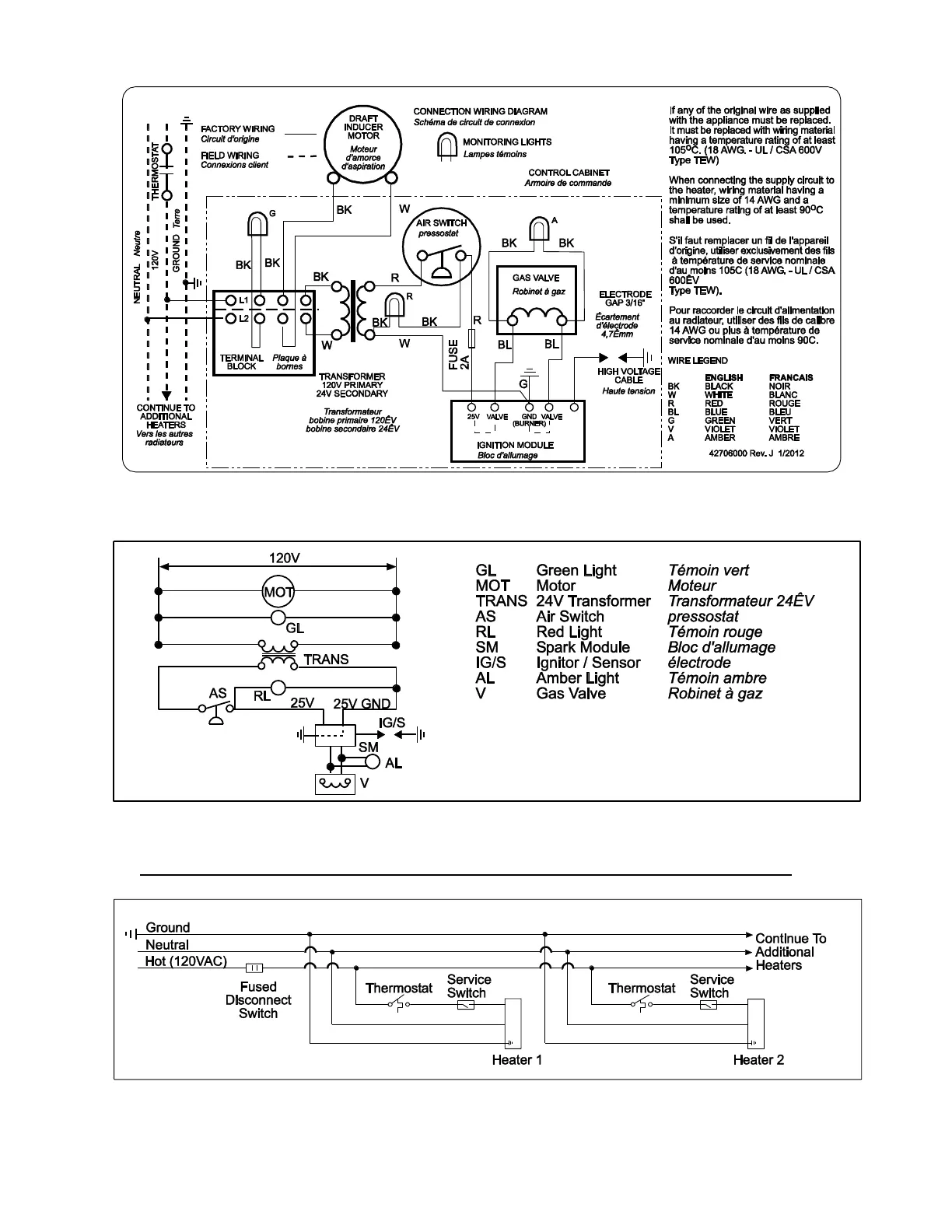

SINGLE STAGE CONTROLS - INTERNAL CONNECTION WIRING DIAGRAM
SINGLE STAGE CONTROLS - SCHEMATIC WIRING DIAGRAM
SINGLE STAGE CONTROLS - THERMOSTAT WIRING DIAGRAMS
A. LINE VOLTAGE (120V) THERMOSTAT CONNECTIONS – SINGLE HEATER PER THERMOSTAT
