Form 43471000
May 2021 -21-

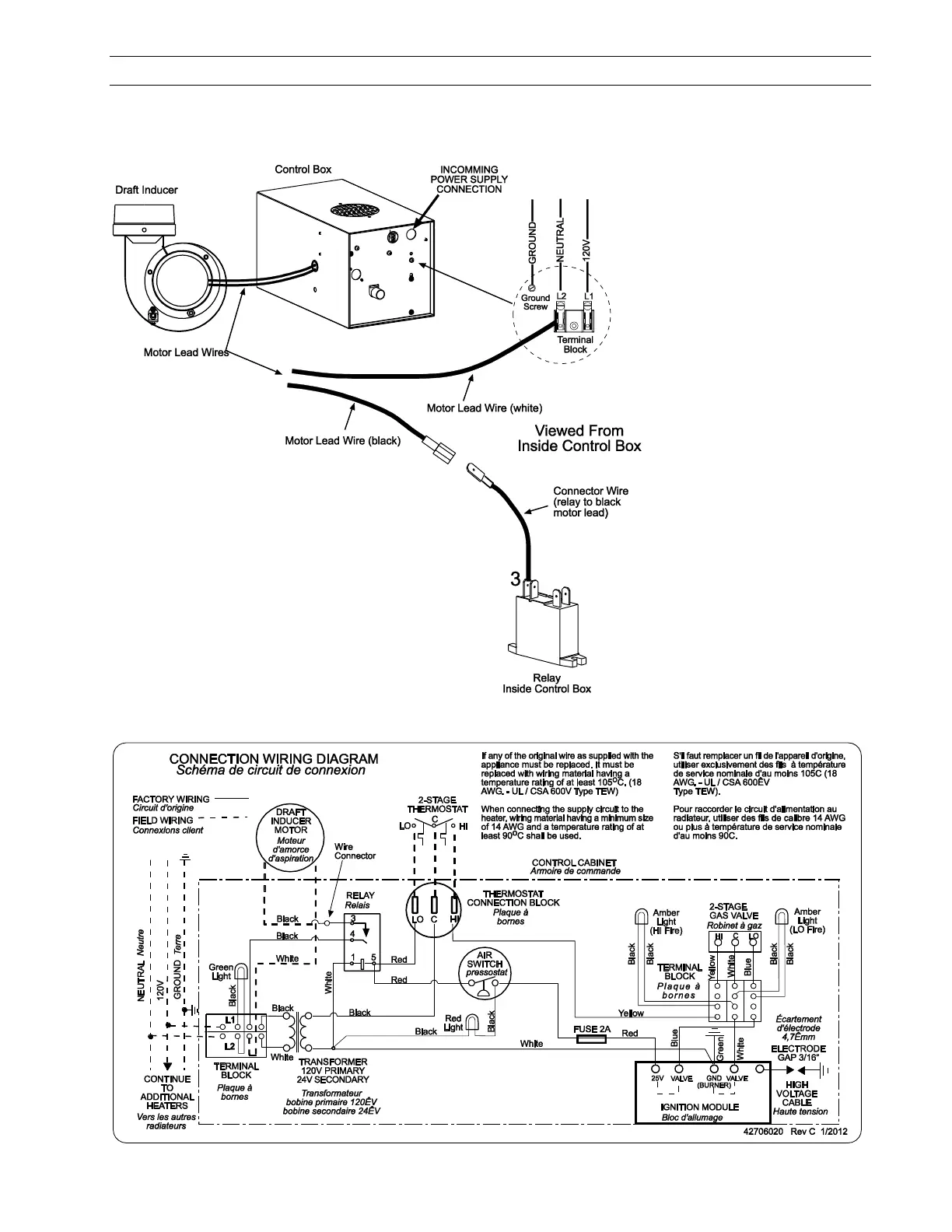

13.2) TWO STAGE (N7/L7) – INTERNAL AND THERMOSTAT CONNECTIONS
TWO STAGE CONTROLS - INTERNAL CONNECTION WIRING DIAGRAM
