Space-Ray CB30-N5 - Heater Assembly

Form 43471000
May 2021 -11-

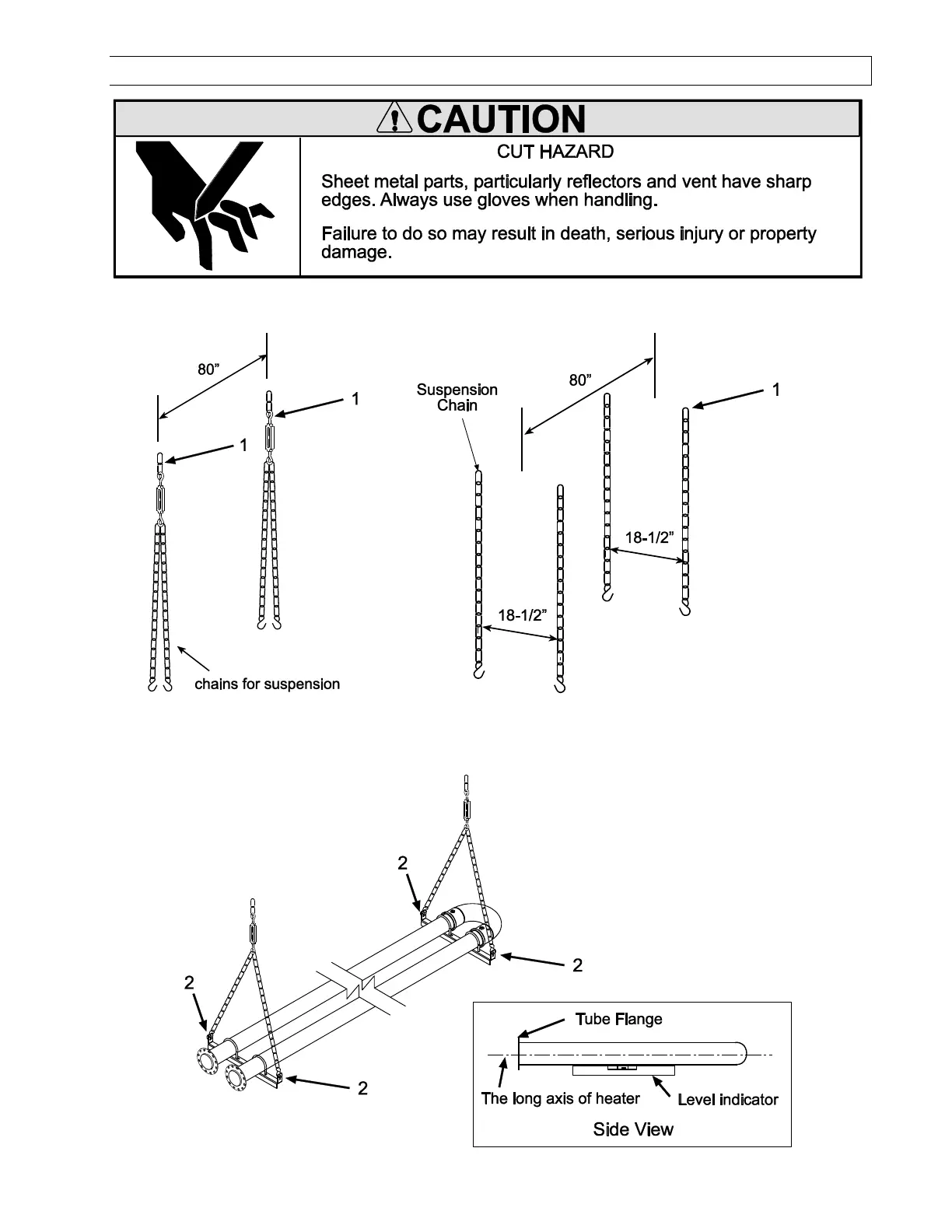

10.0) HEATER ASSEMBLY
During field assembly of the heater, the recommended procedure is as follows:
1. Install suspension (according to Section 7.0) using proper suspension method (see Section 9.0).
Trapeze Method
Individual Suspension Method
2. Lift the tube section and suspend it into place. When lifting, caution should be used to avoid damaging the
assembly. Make sure that the long axis of heater is level.
