Space-Ray CB30-N5 - Page 51

Form 43471000
-50- May 2021

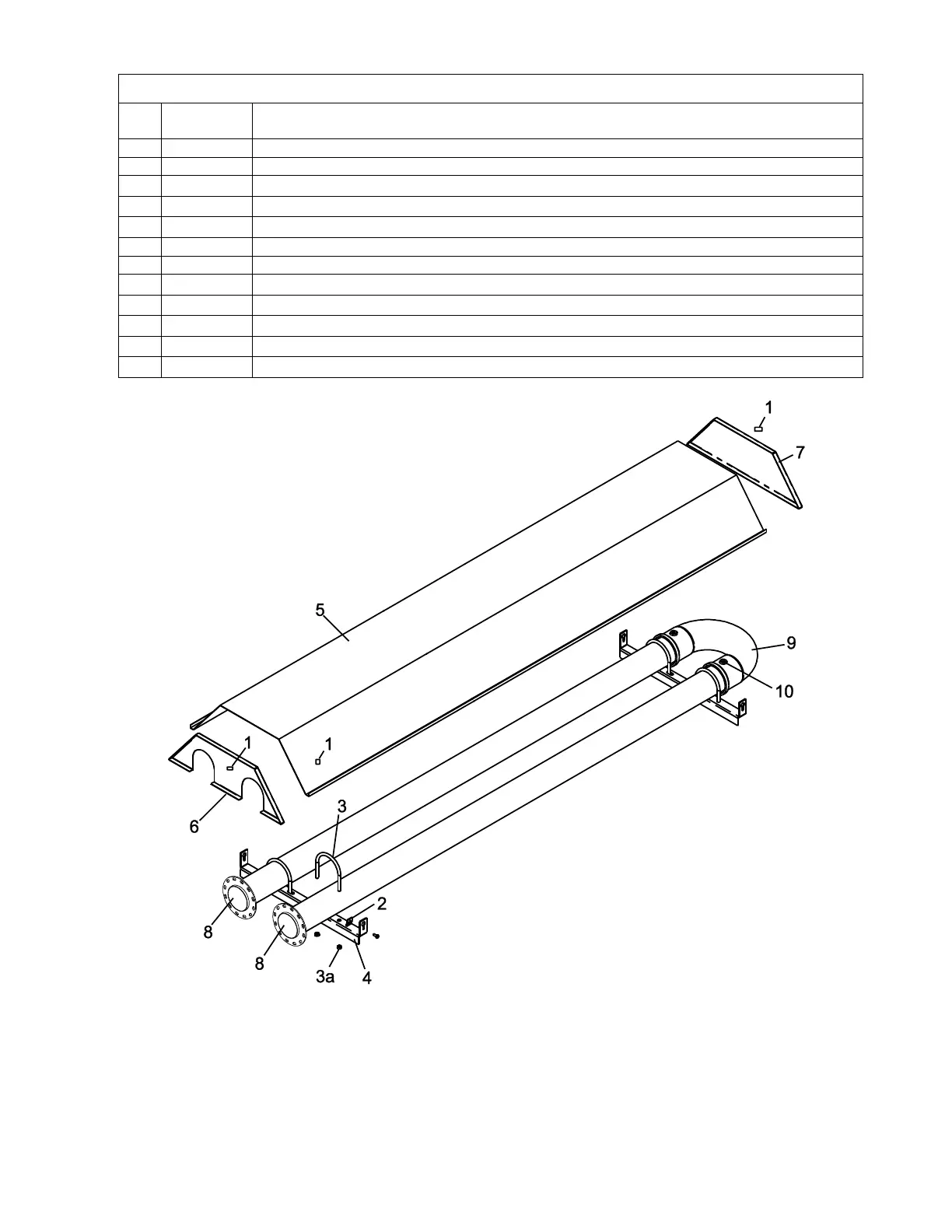

BODY COMPONENTS
Item
No.
Part No.
Description
1
02266010
Reflector Speed Clip
2
42769011
Reflector Clamp with screw (4 per heater)
3
42770000
“U” Bolt Clamp, 3” OD Tube (4 per heater)
3a
02127110
“U” Bolt Hex Nut, 5/16-18 (2 per “U” Bolt)
4
42773000
Tube Support/Hanger Bracket, 18-1/2” (2 per heater)
5
42763080
Reflector, 8’ long (1 per heater)
6
42762010
Reflector, control end
7
42761010
Reflector, foot end
8
44028132
7-1/2’ Tube Replacement Kit, 3” OD, ALC w/one 12-radial hole flange –for CB20-50
9
42764000
U Bend, 3” OD x 3-3/4” centerline radius
10
02254010
Set Screw, 5/16-24 x 1/2” (2 per heater)
Note:
1) Screws, Nuts and Washers are standard hardware items and can be purchased at any local hardware store.
2) Please order by PART NUMBER – not by Item Number.
3) Replacement Part Prices are available when ordering.
4) Please refer to complete Model Number when ordering.
ALL ILLUSTRATIONS ARE INTENDED TO GIVE THE GENERAL IMPRESSION OF UNITS ONLY. WE RESERVE THE RIGHT TO ALTER
ANY SPECIFICATION WITHOUT NOTICE.
