SPACEMAKER A24027 - Page 10

20
CLIP
WING NUT
BOLT
HANDLE
COVER
GASKET
SPACER
FIG. 9
(BAG SP137-24)

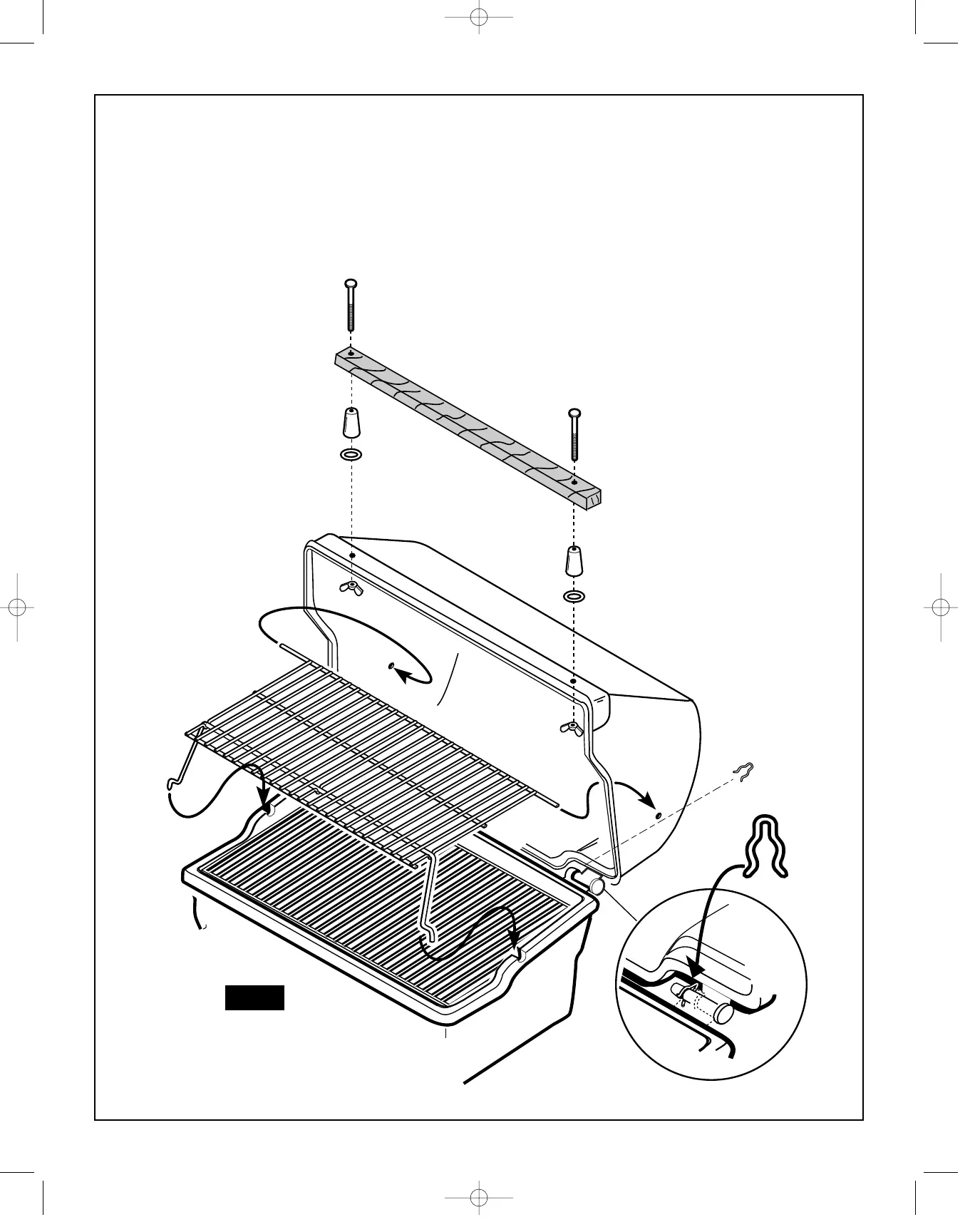

FIGURE 9.
• Position cover and secure from rear with spring clip in groove on right hinge pin.
• Install front handle as shown using #10 x 3" bolts, plastic spacer, heat gasket and
wing nuts. (BAG SP11A-24)
• Install warming rack.
WARMING RACK
