12
FIG. 1
A
BACK
SUPPORT
CASTING
SUPPORT
LEG
CAP
LEFT LEG
RIGHT LEG
(BAG PACK SP137-24)
1/4" NUT
BOTTOM PAN

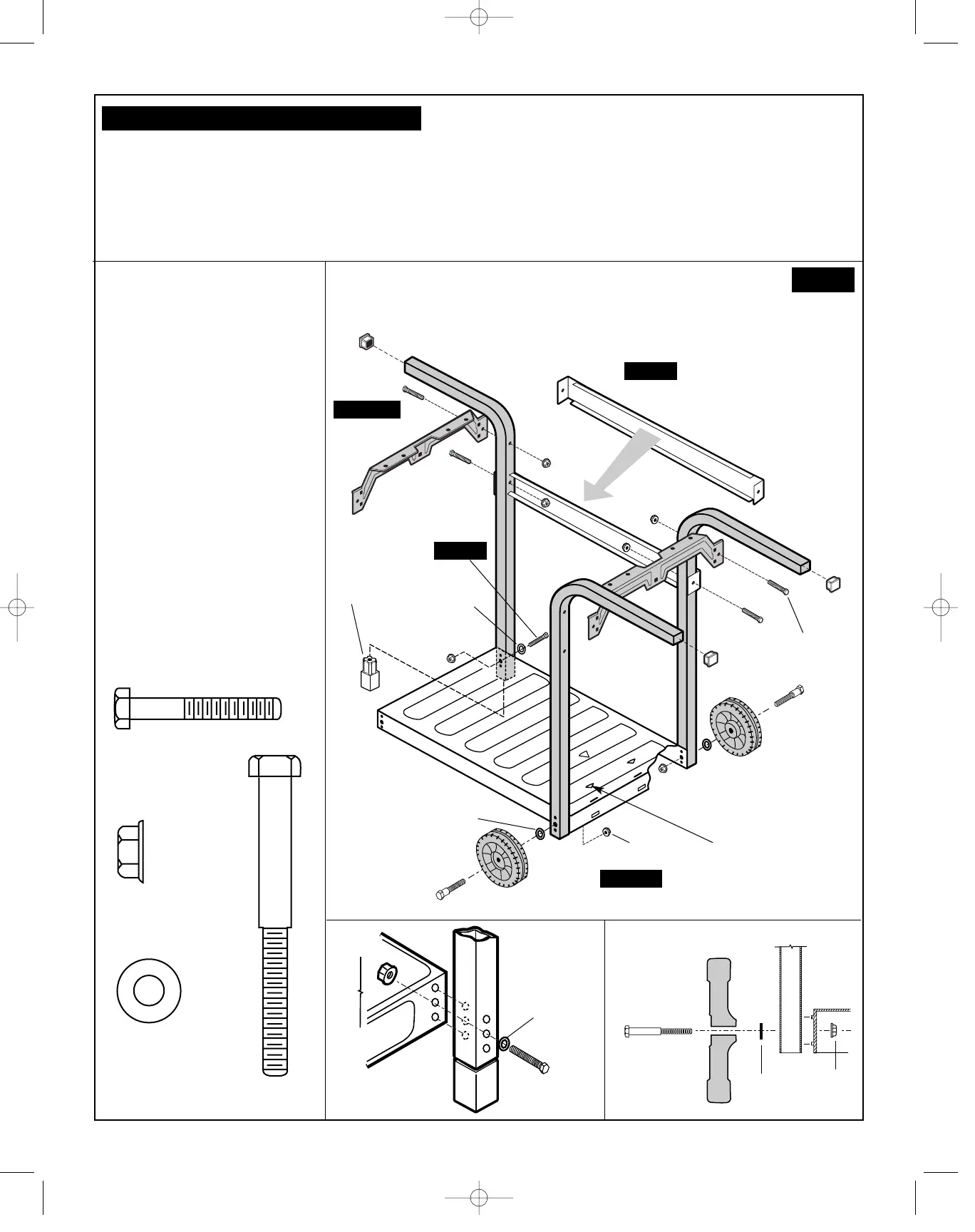

FIGURE 1.
1. Take leg (rear left), insert leg
extension plug and attach
using 1 1/2" bolt, washer
and nut. (Fig. A)
2. Attach wheels and right legs
as shown using (2) Wheel
bolts, washers and nuts. (B)
3. Attach back support as
shown using 1 1/2" bolts and
nuts.
4. Attach (2) casting supports to
rear legs ONLY using (2)
1 1/2" bolts and nuts.
Tighten all connections and
insert (3) leg caps.
ASSEMBLY INSTRUCTIONS:
STEP 1
STEP 3
STEP 4
STEP 2
TOOLS REQUIRED:
11 and 13mm spanner, small adjustable spanner,
crosshead & slothead screwdrivers.
• Extra Common Nuts & Bolts are supplied.
• Refer to diagrams to assemble your grill.
LEG
EXTENSION
PLUG
1-1/2" BOLT
WASHER
NUT
LEG EXTENSION
PLUG
LEG
CAP
WASHER
1-1/2" BOLT
WASHER
NOTE: ENSURE TANK
LOCATORS
ARE AT RIGHT END
WHEELWHEEL BOLT
B
WASHER
NUT
LEG
WHEEL BOLT
WHEEL
1/4"-20 X 1 1/2" BOLT (X5)
1/4"-20 NUT (X7)
WASHER (3)
WHEEL BOLT (X2)
