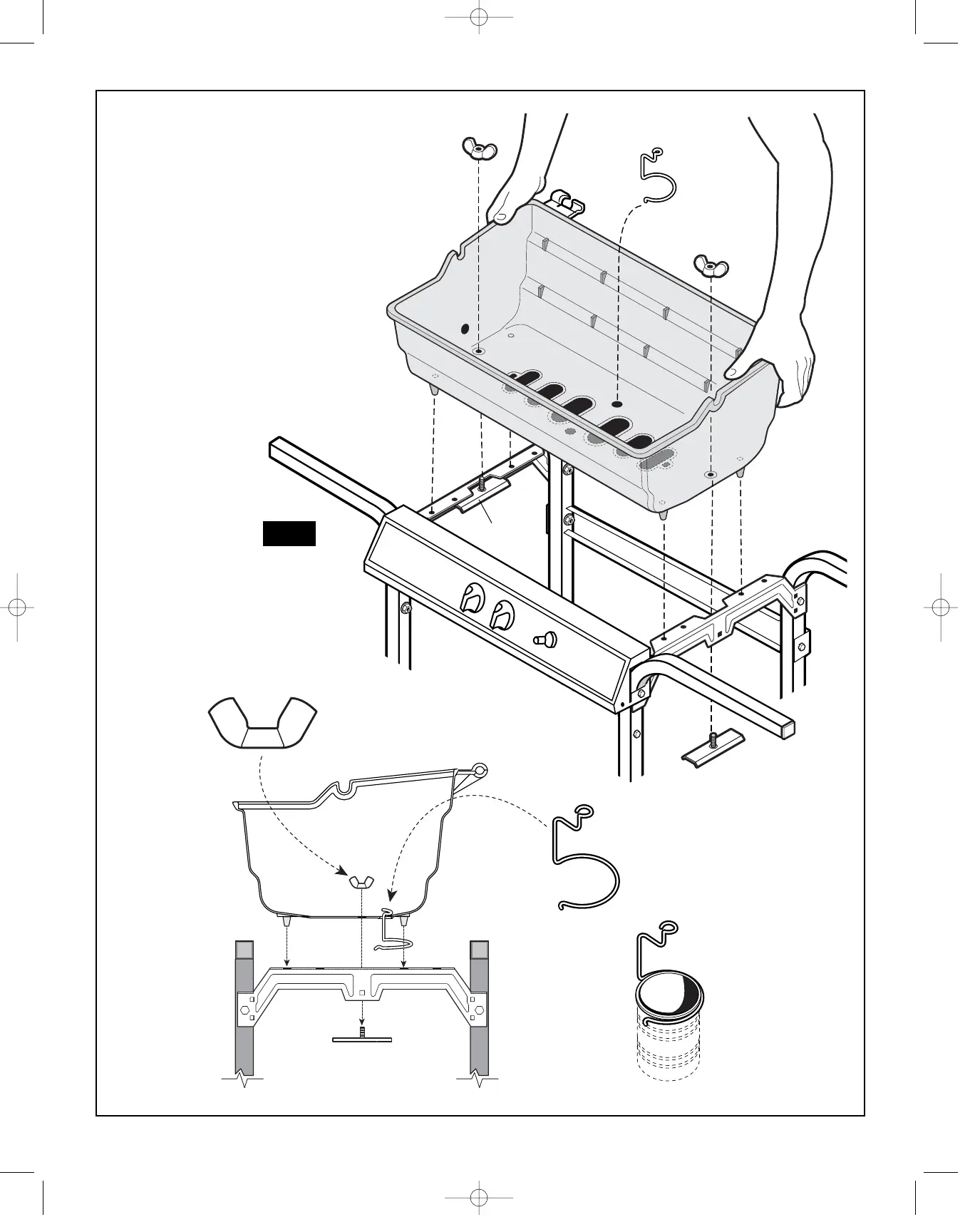

FIGURE 5.
• Position base on brackets
as shown.
• Position wing brackets as
shown and secure with wing
nuts.
• Insert grease clip through
hole as shown.
FIG. 5
(BAG SP137-24)
1/4"-20 WING NUT (X2)
GREASE CLIP
BASE
WING NUT
WING NUT
WING BRACKET
WING BRACKET
GREASE CLIP
WING
BRACKET
Grease cup not
supplied.
Any metal tin
(i.e. vegetable tin)
will work.
