18

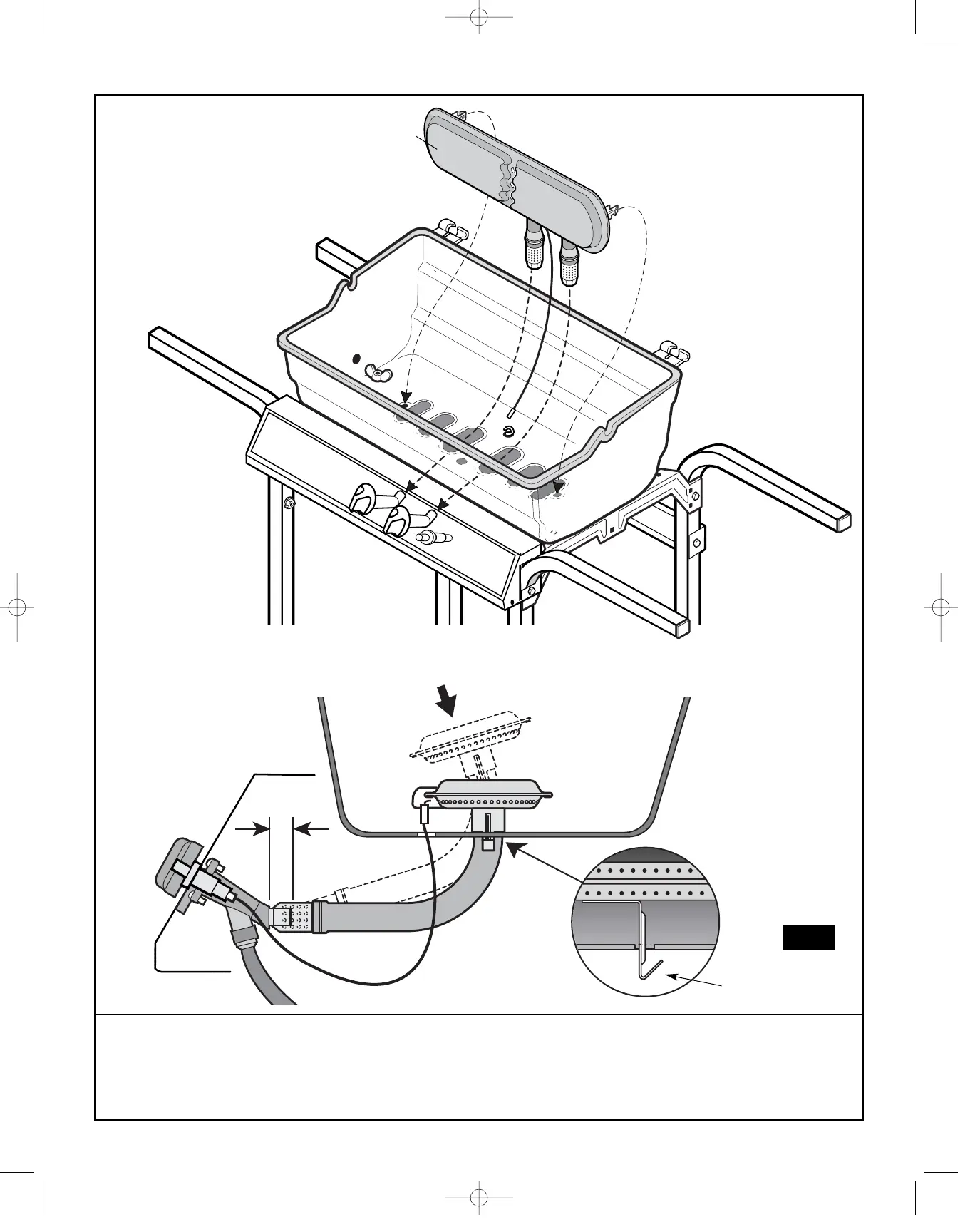

FIGURE 7.
Carefully install burner through holes in bottom of casting. Ensure end of ignitor electrode and wire fit down
through hole in casting, and electrode does not get damaged. Also ensure burner legs fit into casting slots and
that venturi tube is centered over valve orifice by 10mm. Attach wire to ignitor end terminal.
BASE
CASTING
VENTURI
BURNER
BURNER
IGNITOR
WIRE
FIG. 7
BURNER FEET
3/8"
BASE
CASTING
