Assemble the Goal
22
Assemble the Goal
Required Parts: Completed Goal Assembly:
• Kit 5
• Socket Wrench or Wrench
H

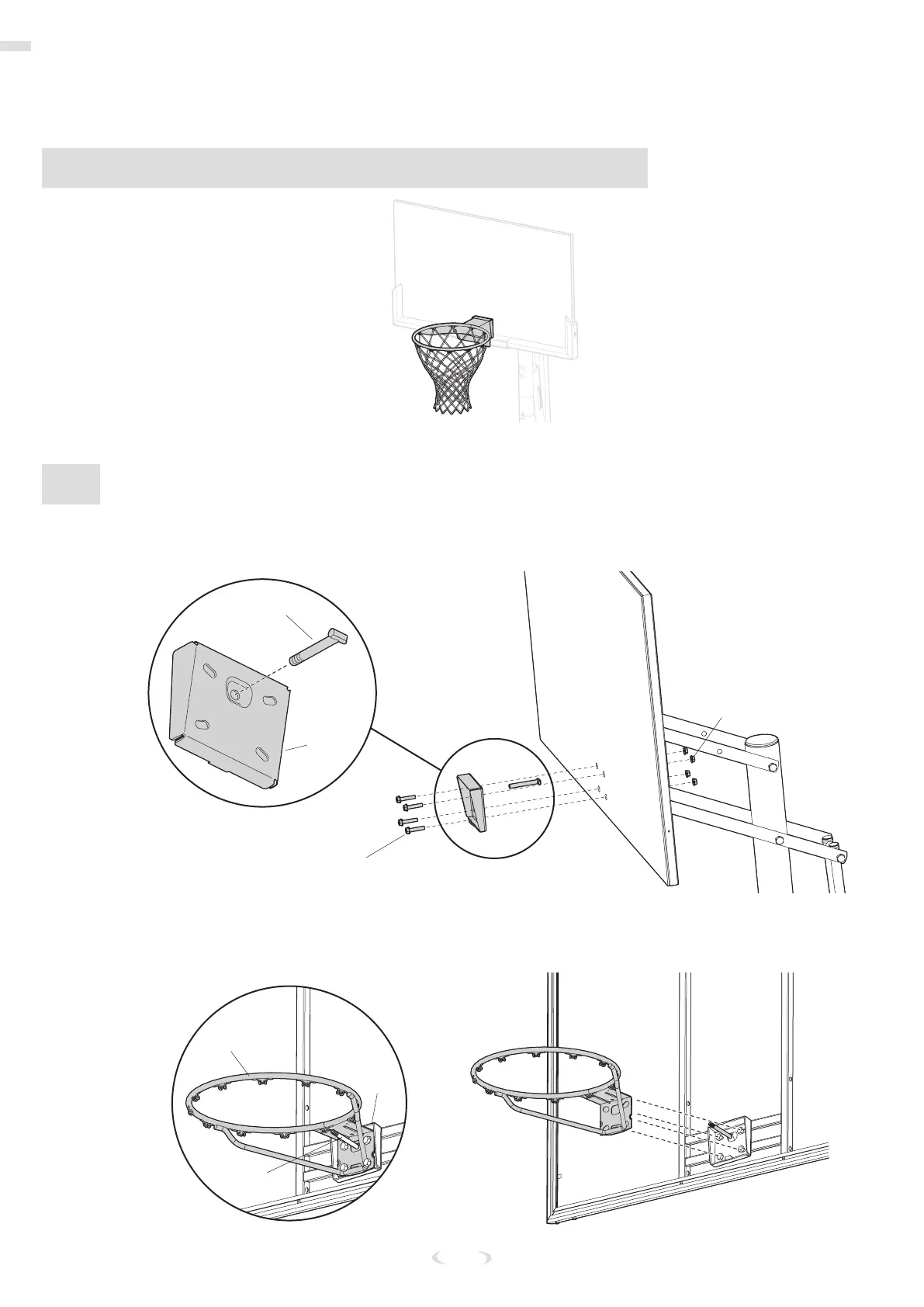

ASSEMBLE THE GOAL
1. Insert the t-bolt (33) through the slam jam bracket (32).
2. Secure the slam jam bracket (32) to the backboard using the bolts (51) and nuts (16).
#51
#33
#32
#16
3. Fit the rim (25) securely into the slam jam bracket (32). Allow the t-bolt (33) to slip through the
center hole in the rim (25).
#25
#32
#33
