SPALDING NBA Arena - Section B: Wheel Carriage Assembly; Wheel Carriage Hardware

14
Item Qty. PartNo. Description
10 2 600074 Wheel, 6”
11 1 600079 Transport Handle, Plastic
12 1 800373 U-Bracket, Pivot
13 1 908466 Bracket, Wheel
14 1 206948 Bracket, Pivot, Lower
15 1 206956 Disk, Pivot, Plastic
16 1 908513 Cross Member
17 1 206082 Axle, Rod, 20.5” Long
18 2 908460 Tube, Hinged
Item Qty. PartNo. Description
W1 2 200514 Bolt, Hex Head, 3/8-16 x 3” Long
W2 12 203041 Nut, Hex-Flange, 3/8-16
W3 4 203299 Washer, 3/8 Flat
W4 2 265563 Bolt, Hex Head, 3/8-16 x 2.5” Long
W5 1 203330 Bolt, Hex Head, 3/8-16 x 4.5” Long
W6 2 205593 Lock-Nut, 3/8-16
W7 1 206252 Bolt, Hex Head, 3/8-16 x 1” Long
W8 8 203277 Bolt, Carriage, 3/8-16 x 2”
W9 2 207550 Push Caps, Metal, Wheel Assembly
W10 1 202274 Spacer, 0.379 I.D. x 0.50 O.D. x 3.5” Long
200514 hex head bolt 3/8-16 x 3
#W1 (2)
#W7 (1)
#W10 (1)
265563
BOLT, HEX, 3/8-16 X 2-1/2, GR5
#W4 (2)
#W9 (2)
Bolt, Carriage, 3/8-16 x 2
203277
#W8 (8)
#W5 (1)
203041
NUT, HEX FLANGE, 3/8-16
#W2 (12)
#W6 (2)
203299 washer 3/8
#W3 (4)
TOOLS REQUIRED FOR THIS SECTION
SECTION B:WHEELCARRIAGEASSEMBLY
9/16”
9/16”
(2) Wrenches
AND/OR
(2) Socket Wrenches and Sockets
Extension

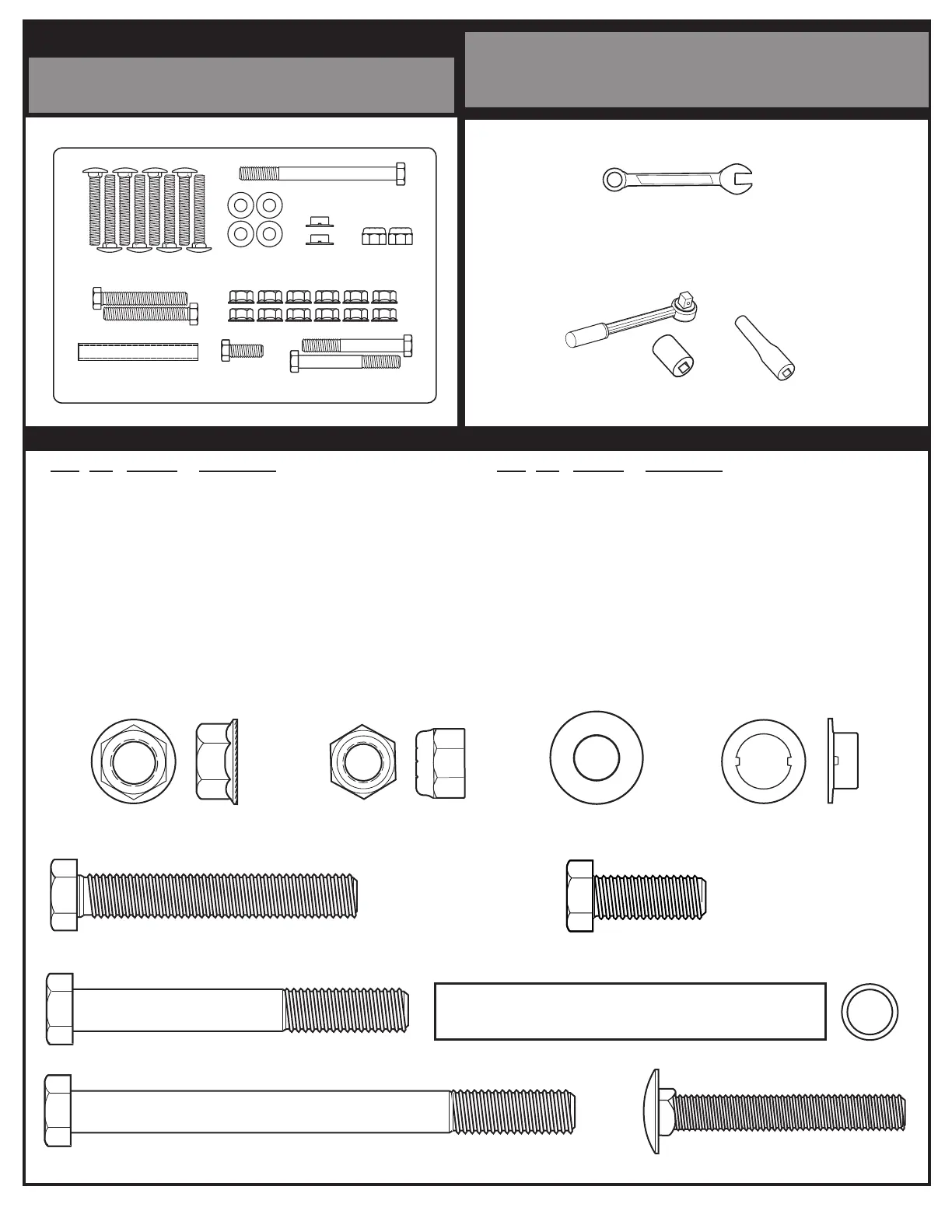

HARDWARELISTANDIDENTIFIER
FRONT WHEEL ASSEMBLY HARDWARE CARD
BA00002
