SPALDING NBA Arena - Assembling Wheel Carriage

15
W1
1.
W1
W2
W2
W2
W4
W2
W3
W4
W3
W3
12
4
W3
4
16

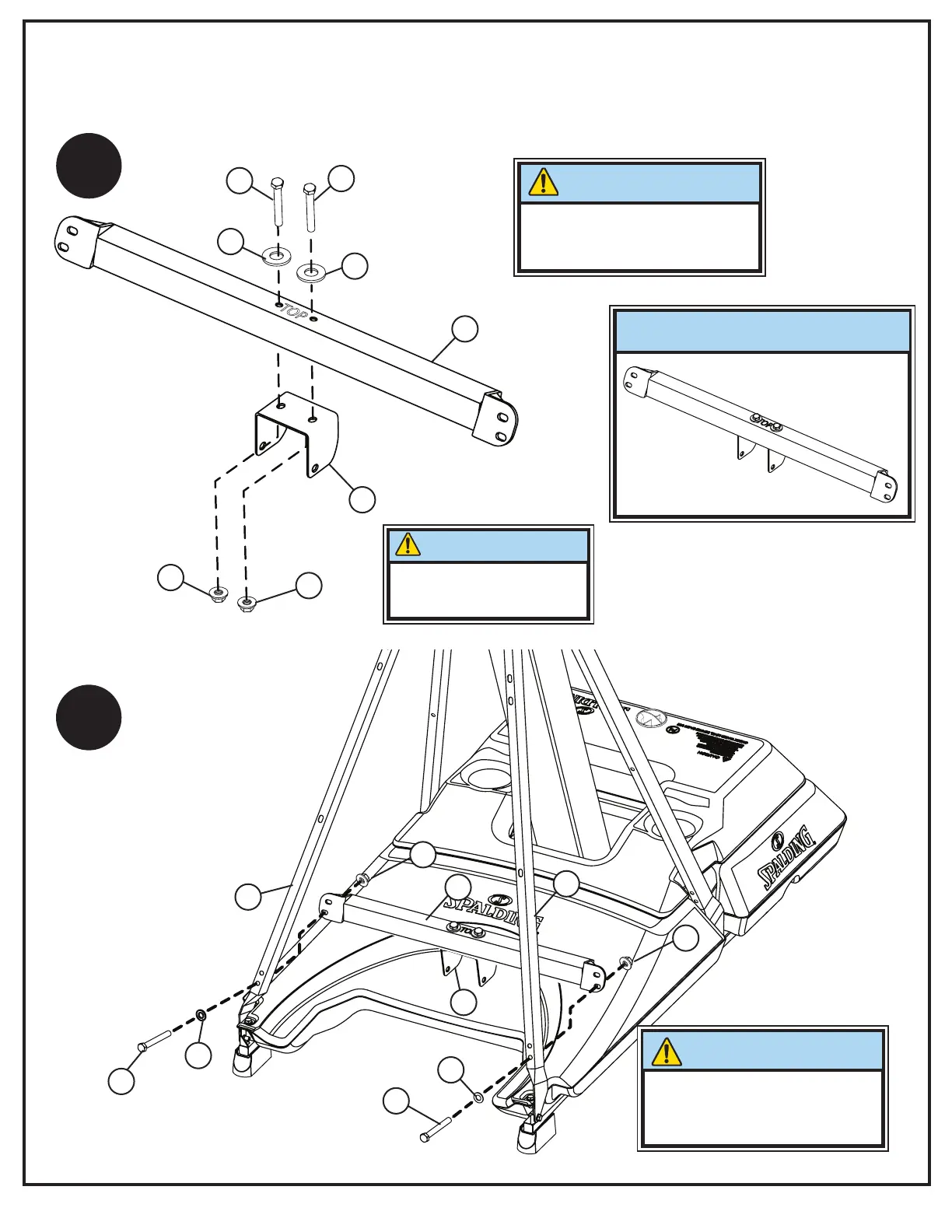

A. Attach u-bracket (12) to cross member (16) using bolts (W4), washers (W3) and nuts (W2).
B. Secure cross member (16) to front struts (4) using bolts (W1), washer (W3) and nuts (W2)
IMPORTANT!
NOTE ORIENTATION
OF BRACKET (12).
IMPORTANT!
NOTE ORIENTATION
OF STRUT BRACE (16).
16
A
B
12
IMPORTANT!
NOTE ORIENTATION
OF STRUT BRACE (16).
COMPLETED ASSEMBLY
