SPALDING NBA Arena - Page 16

16
3.
18
W8
18
W2
W2
W2
W2
W8
13
2.
10
10
13
17
W9
W9

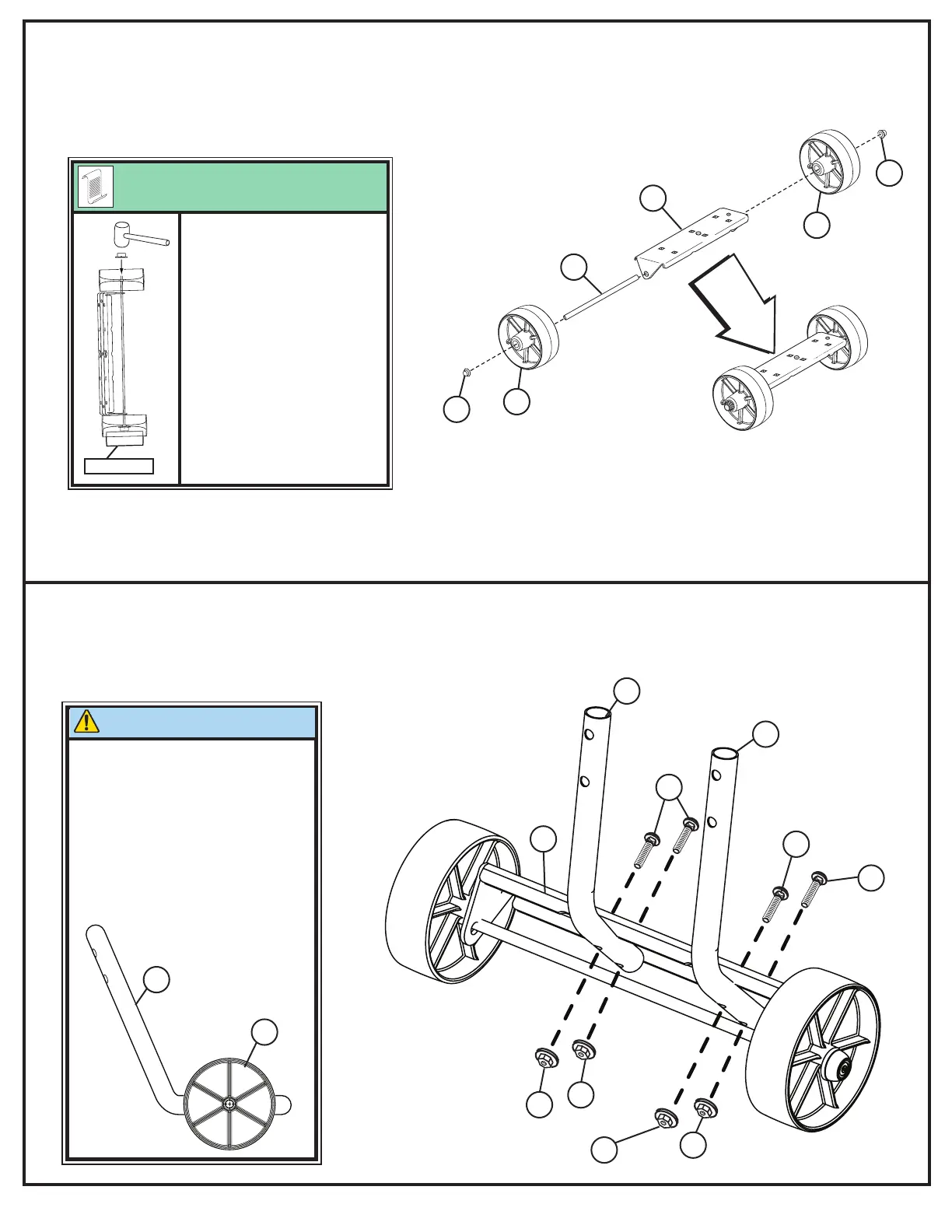

Insert axle (17) through wheel bracket (13). Secure wheels (10) to axle using pushnuts (W9). Carefully
tap pushnuts (W9) onto axle with hammer or mallet.
Secure hinge tubes (18) to wheel bracket (13) using bolts (W8), and nuts (W2).
TO INSTALL SECOND
PUSHNUT:
• Assemble Pushnut,
Wheels, Axle, And
Wheel Bracket As
Shown.
• Support Pushnut/Axle
From The End With
A Block Of Wood To
Install The Second
Pushnut Onto The
Axle.
NOTE:
Wood Block
W8
IMPORTANT!
NOTE ORIENTATION OF
HINGED TUBES (18).
THE SHORT END OF
THE HINGED TUBES (18)
GO UNDER THE WHEEL
BRACKET (13).
18
10
