SPALDING NBA Arena - Page 17

17
4.
5.
W8
W2
W2
16
11

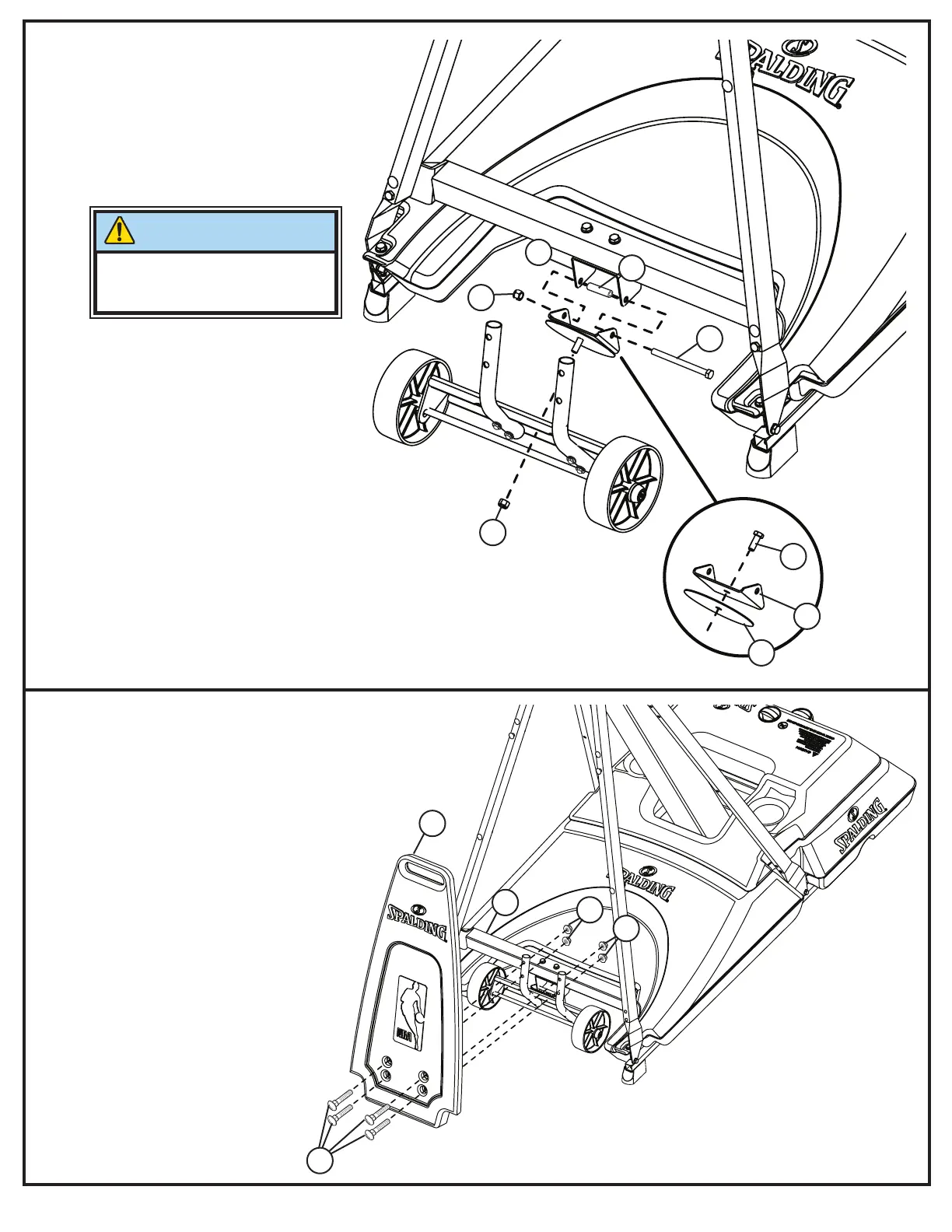

Attach transport handle (11) to wheel assembly
using carriage bolts (W8) and nuts (W2).
Secure lower pivot bracket (14) to
wheel assembly using bolt (W7),
pivot disk (15) and nut (W6).
Secure wheel assembly to
u-bracket (12) using bolt (W5),
spacer (W10), and nut (W6).
IMPORTANT!
DO NOT OVER TIGHTEN
BOLT (W5).
W6
12
W10
15
14
W6
W7
W5
