SPALDING NBA Arena - Page 20

20
Item Qty. PartNo. Description
30 1 908508 Elevator Tube, Upper
31 1 908509 Elevator Tube, Lower
32 1 Backboard
33 2 700012 Plug Cap
34 4 208482 Spacer, Steel 0.50” I.D.x 0.875”
O.D.x 0.465” Long
35 1 20755201 Pad, Foam
Item Qty. PartNo. Description
A1 4 205711 Bolt, Hex-Head, 1/2-13 x 2.25”
Long
A2 7 206340 Nut, Nylock, 1/2-13
A3 14 203474 Washer, Flat, 1.08” O.D.
A4 4 201651 Bushing, Plastic, 0.50” I.D. x 0.25”
Long
A5 3 207876 Bolt, Hex-Head, 1/2-13 x 8.4” Long
A6 4 208251 Bushing, Plastic, 0.50” I.D. x 0.13”
Long
A7 2 204620 Spacer, Plastic, Black 1.7” Long
#A2 (7)
#A3 (14)
#A4 (4)
#A6 (4)
#A1 (4)
TOOLS REQUIRED FOR THIS
SECTION
3/4”
3/4”
(2) Wrenches
AND/OR
(2) Socket Wrenches and Sockets
Extension

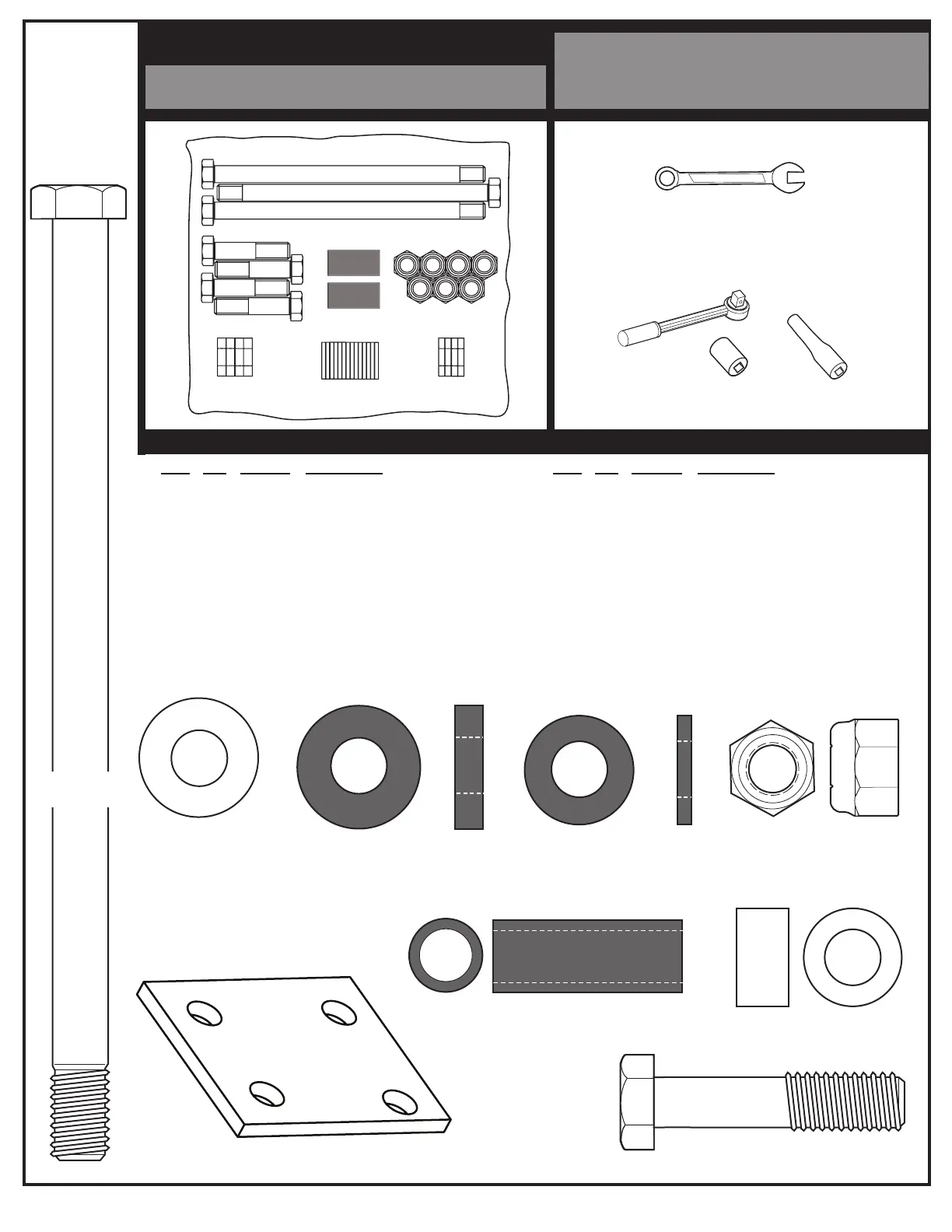

HARDWARELISTANDIDENTIFIER
SECTION D:ELEVATORASSEMBLYPART2
#A5 (3)
ELEVATOR ARMS
HARDWARE BAG
208482 Steel Spacer
#34 (4)
#35 (1)
207876 (3pcs)
205711 (4pcs)
206340 (7pcs)
203474 (14pcs)
201651 (4pcs)
AR00004
208251 (4pcs)
204620 (2pcs)
AR00004
#A7 (2)
