SPALDING NBA Arena - Assembling Elevator Mechanism

19
1.
E2
E1
22
21
23
24
20
NO PA D
A
C
B
D

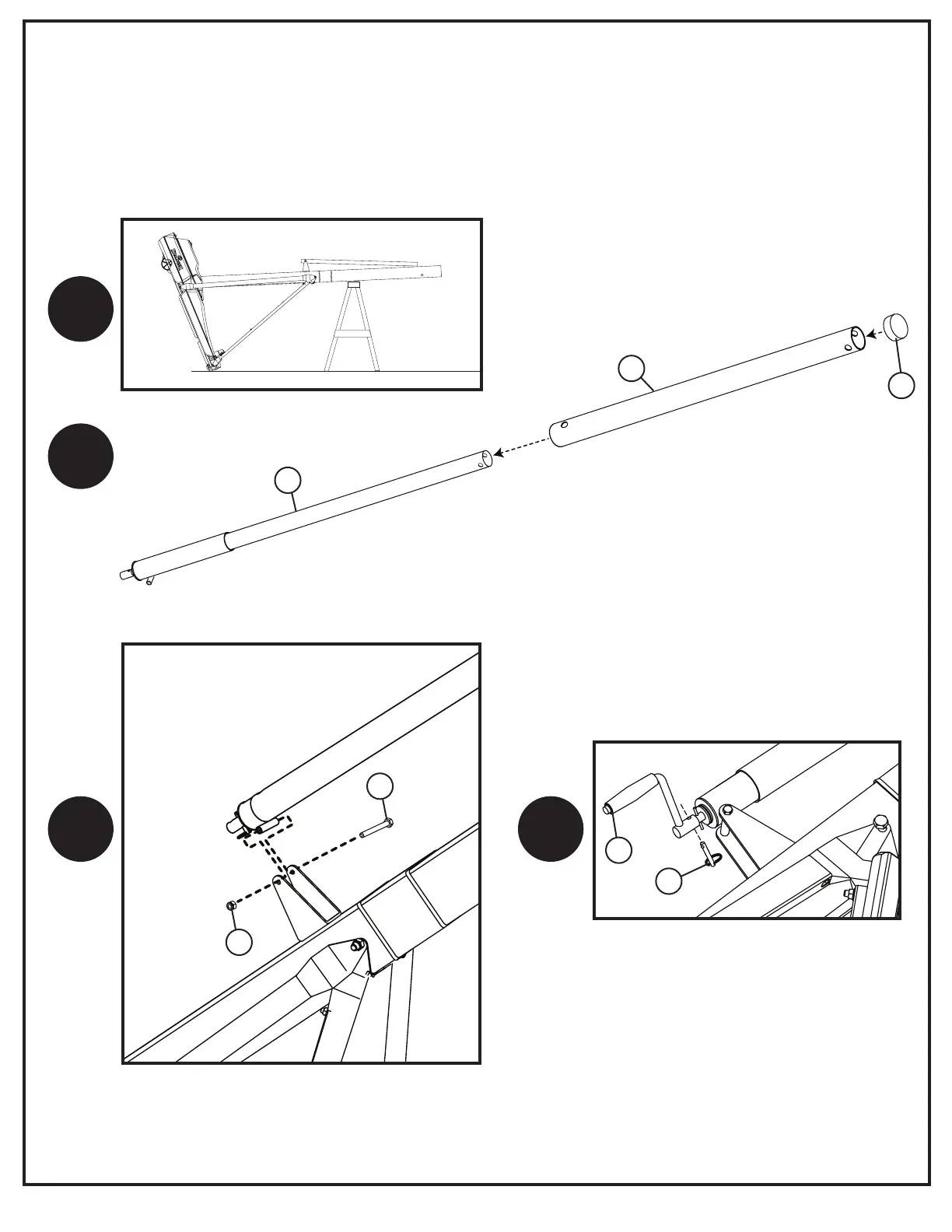

A. Securely rest the assembly on sawhorse.
B. Slide screw-jack sleeve (22) over screw jack and attach cap (23) to top end.
C. Attach screw-jack (21, 22, 23) to pole bracket with bolt (E1) and nut (E2) as shown.
D. Attach handle (20) to screw jack with pin (24).
