SPALDING NBA Arena - Attaching Board and Rim

27
2.

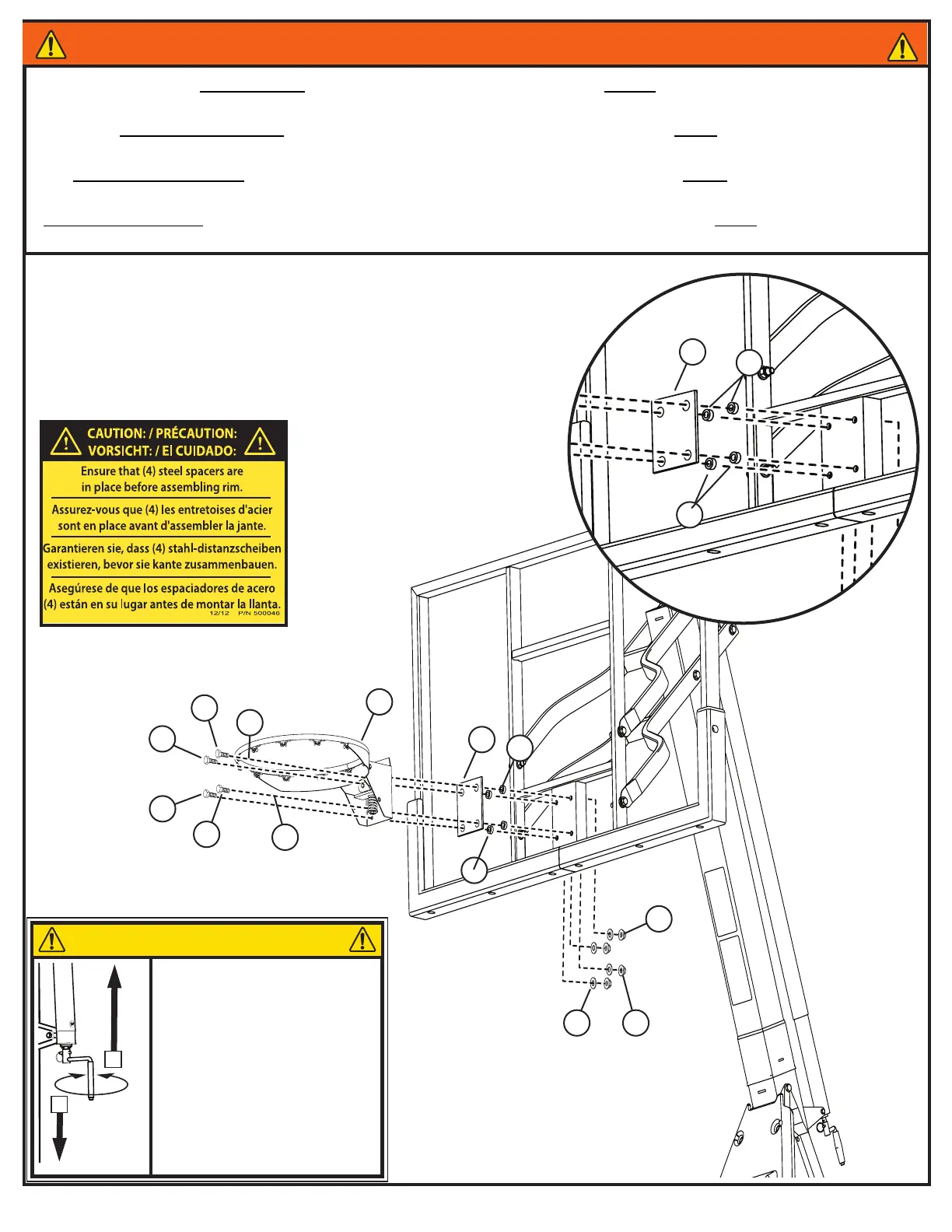

Adjust backboard to lowest setting and attach rim
assembly (40) to board using bolts (R1), washers (R2),
foam pad (35), steel spacers (34) and nuts (R3).
DO NOT OVER-CRANK
HANDLE BEYOND THE
MANUFACTURED HEIGHT-
INDICATOR RANGE OF
7-1/2 - 10 FEET. DAMAGE
MAY BE CAUSED TO THE
SCREW JACK’S INTERNAL
ADJUSTMENT MECHANISM
IF ADJUSTED OVER 10 OR
UNDER 7-1/2 FEET.
LABEL AS APPROVED BY HUFFY SPORTS ENGINEERING
FOR OUTDOOR APPLICATION
2-5/8" Wide x 6-5/8" Long
568090 06/06
1
3
2
MOVING SYSTEM
HEIGHT
ADJUSTMENT
1. While holding pole, rotate basketball sytem
forward until wheels engage with ground.
2. Move basketball system to desired location.
3. Carefully rotate basketball system upright.
4. Check system for stability.
B
A
Rotate crank
handle to raise
and lower
backboard
CAUTION!
PLEASE ENSURE that foam pad and all 4 steel spacers are in position BEFORE attaching yokes.
Failure to follow these instructions could result in personal injury or damage to property.
VEUILLEZ VOUS ASSURER que la mousse pad et tous les 4 entretoises en acier sont en position AVANT de xer les chapes.
Le non-respect de ces instructions peut entraîner des blessures ou des dommages à la propriété.
BITTE STELLEN SIE SICHER dass Schaumsto󰀨 und alle 4 Distanzstücke aus Stahl sind in Position bendet BEVOR mit der installation gabeln.
Bei Nichtbeachtung dieser Anweisungen kann zu Verletzungen oder Schäden an Eigentum.
POR FAVOR, ASEGÚRESE de que almohadilla de espuma y los 4 separadores de acero están en su posición correcta ANTES de conectar las horquillas.
El incumplimiento de estas instrucciones puede resultar en lesiones personales o daños a la propiedad.
CAUTION STEEL SPACERS LABEL
P/N 500046
Size = 1.75 W X 1.44 H
COLORs = Black printed
with PMS 115 background
Die Cut Label
All temp. Permanent Adhesive
(For use on closed cell Polyurethane foam)
1 Mil. Polypropolyne Overlaminate
Illustrator CS5 = EPS
Backing + 1/16 Circumference
Rolls of 500
R1
R2
R3
R2
R2
R2
R1
R3
R3
40
35
34
34
35
34
34
WARNING! AVERTISSEMENT! WARNUNG! ¡ADVERTENCIA!
