SPALDING NBA Arena - Page 28

28
4.
5.
3.
OUTSIDE VIEW
B.
D.
C.
A.
40
41
41

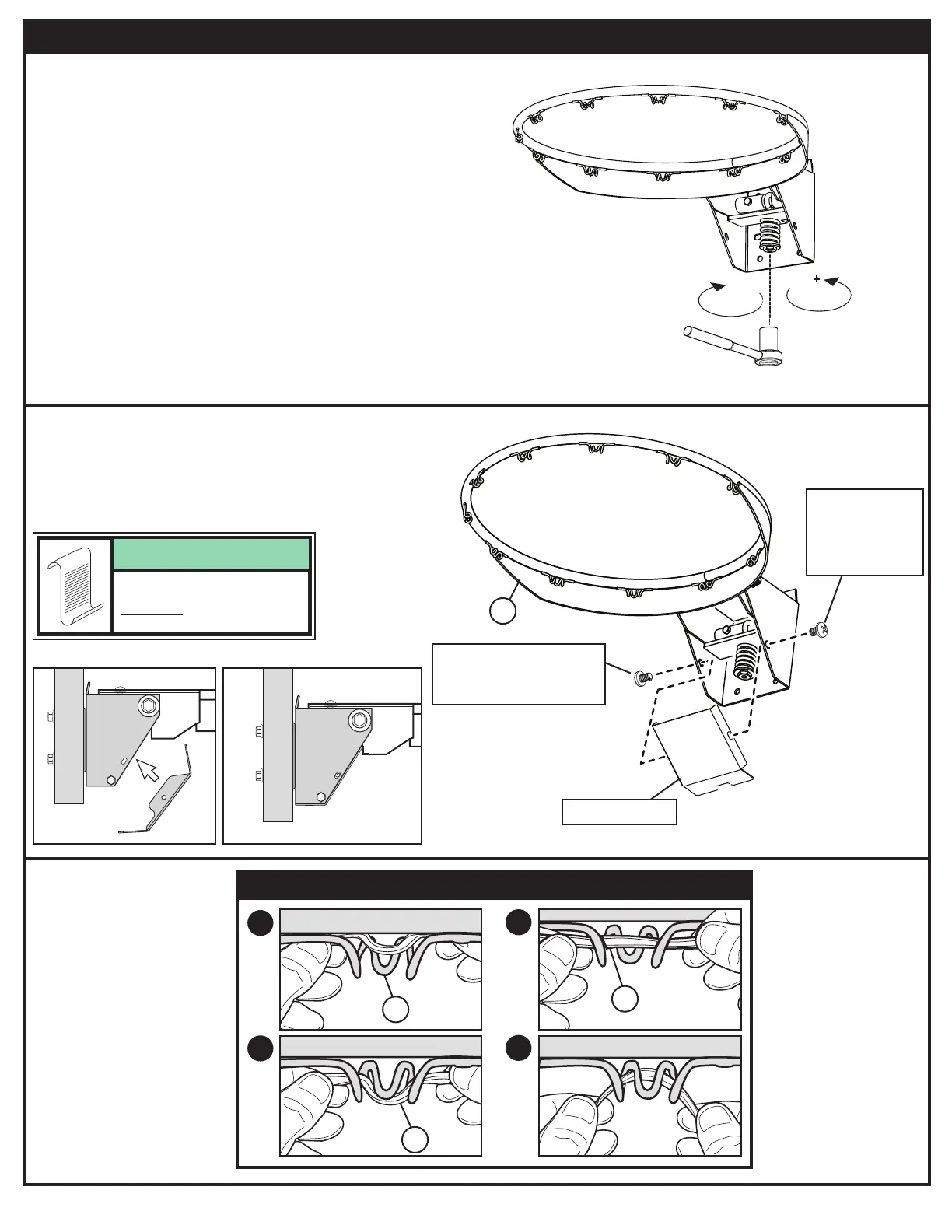

Install cover plate on rim (40) using self
tapping screws removed in step 1 of this
section (note orientation of cover plate).
Cover plate will t
INSIDE back bracket.
NOTE:
Install net (41).
TOADJUSTRIMTENSION
Make adjustments as shown.
Tightening the nut:
• Increases the preload on the spring and
increases the rim’s resistance to movement.
• The higher the preload, the more force required
to move the rim downward.
(9/16”)
Loosen
Tighten
Rim Cover
40
Cover Screw 220140:
Self-tapping Screw,
1/4-20 x 0.5”
Cover Screw
220140: Self-
tapping Screw,
1/4-20 x 0.5”
