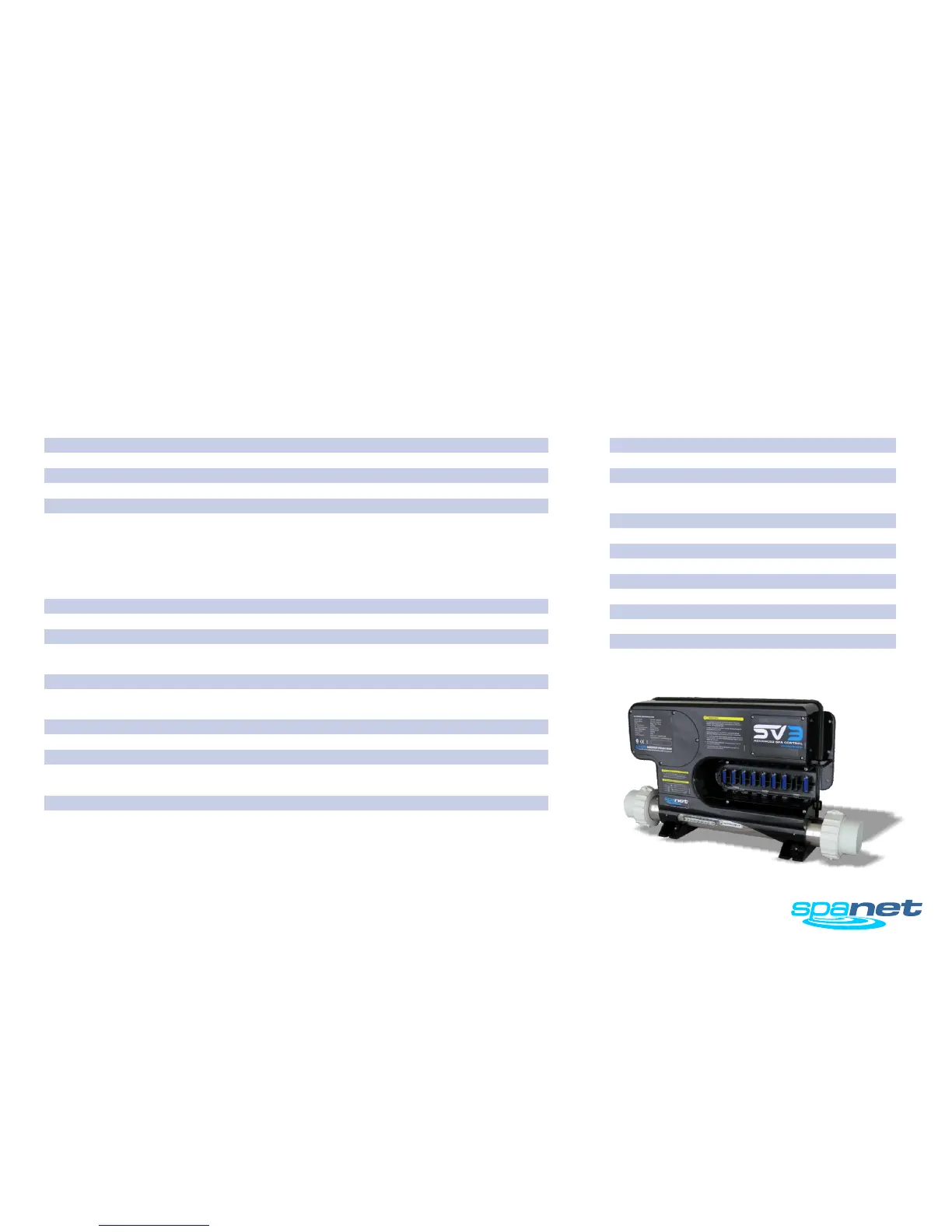

SpaNet SV2 Installation & Technical Manual

SV Series Spa Controls
SV Series Specifications
Model No Max Maximum Multi Input Voltage Input Voltage Hz Heater Size
Current Phase Current Single Phase* Three Phase*
SV2 15A - 230-240V AC 400-415V AC 50/60 2kW
SV3 45A - 230-240V AC 400-415V AC 50/60 3kW
SV2-VH 15A 16A per phase 230-240V AC 400-415V AC 50/60 3kW Variable
SV3-VH 45A 25A per phase 230-240V AC 400-415V AC 50/60 6kW Variable
SV4-VH 60A 25A per phase 230-240V AC 400-415V AC 50/60 6kW Variable
* Range of acceptability (+/-6%)
Electrical Specifications
All Models (SV2/SV3/SV2-VH/SV3-VH/SV4-VH)
o
Maximum Controlled Temperature 41 C
o o
Thermal Cut-Out 47 C +/-3 C
o
Maximum Ambient Temperature 40 C
Minimum Flow Rate 65 L/min
RCD trip rating 30mA
Weight (without cable) 5kg
Dimensions (with couplings) 544x309x90mm
Enclosure IPx5
o o
Operating Temperature 0 C to 40 C
o o
Storage Temperature -25 C to 85 C
Humidity up to 85% RH
(non condensing)
System Specifications
Outlet Max Current Output Voltage Hz Typical Accessory
Circ 2A 230-240V AC 50/60 Small Circulation Pump
O3/UV 2A 230-240V AC 50/60 Ozone Generator / UV Sanitiser
Blower 6.3A 230-240V AC 50/60 Air Blower
Pump 1 12A 230-240V AC 50/60 2 Spd Jet Pump / 1 Spd Jet Pump
Pump 2 12A 230-240V AC 50/60 1 Speed Jet Pump
Mains 1 ^ 12A 230-240V AC 50/60 Mains power outlet (always on)
Pump 3 * 12A 230-240V AC 50/60 2 Spd Jet Pump / 1 Spd Jet Pump
Pump 4 # 12A 230-240V AC 50/60 1 Speed Jet Pump
Mains 2 *^ 12A 230-240V AC 50/60 Mains power outlet (always on)
~
Light 1 1A 12V AC LED Light
~
Light 2 * 1A 12V AC LED Light
* Outlets not available on SV2 / SV2-VH models
# Outlet not available on SV2 / SV2-VH / SV3 / SV3-VH models
^ Dedicated mains power outlets (always ON)
~ 1A maximum current draw. This is split between keypads, expand ports and light sockets.
Each socket is rated to 1A maximum so the full 1A can be drawn from a single socket if required.
Output Ratings
