Spark Bikes Spark - Bike Assembly Steps; Handlebar Installation; Fender Attachment



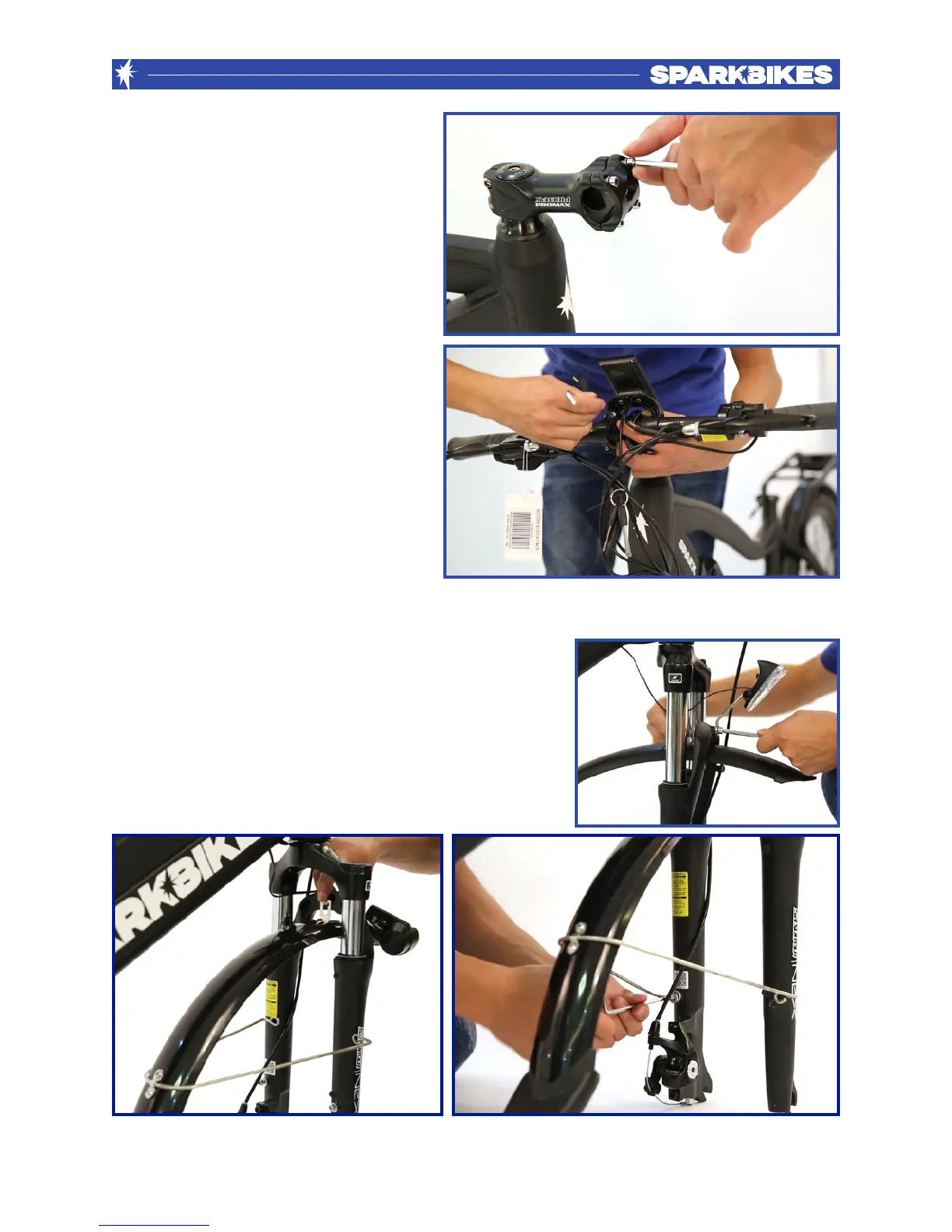

Handlebar Assembly
Required tools:
- 4mm Allen key
1) Unscrew the four bolts from the
stem and remove the cap.
"
2) Insert the handlebar and place the
cap. Screw in the bolts to tighten the
cap."
Fender Assembly
Required tools:%
- 4mm Allen key"
- 5mm Allen key
- 10mm Wrench
1) Place the fender under the fork bracket and attach
the fender hook from the back of the bracket. Insert
the bolt into the light through the fork bracket and
fender and tighten. !
2) Place the fender stays onto the designated area
and tighten."
2
