47K 220 220
TOP OF BOARD
LEDs x 2
16
Remember highlighted components are polarized.
CONTINUE ON THE TOP OF THE BOARD

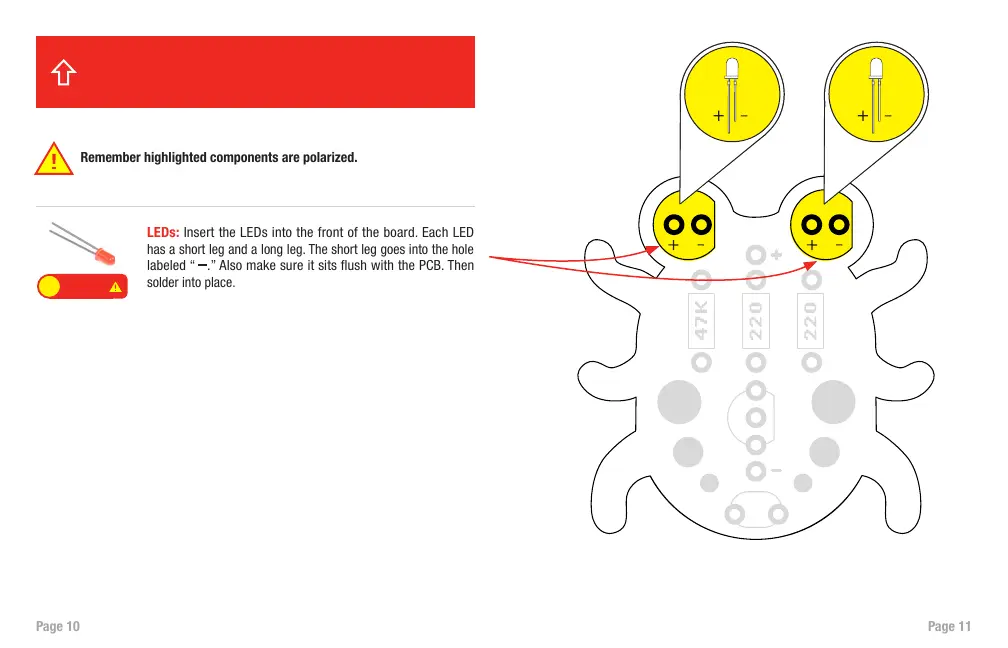

LEDs: Insert the LEDs into the front of the board. Each LED
has a short leg and a long leg. The short leg goes into the hole
labeled “ .” Also make sure it sits flush with the PCB. Then
solder into place.
