SpeakerCraft MZC-88 User Manual

Line Out
Expansion
Aux. Input
iPod Base
24V DC
SpeakerCraft
PS-3.0 24VDC
Power Supply
1
MODE
ADAPTER
MODE
BASE
CD
DVD
SATELLITE
CABLE
RSA-1.0
RS232 InterfaceAdapter
SpeakerCraft
®
CONTROL
PORT
EXPANSION
PORT LOOP
RS232
DATA I/O
IR
IN
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
ADDRESS
HI LO
PROGRAMMI NG
IR
OFF ON
12VDC
MODE JUKEBOX
PS-1.0 200mA
Power Supply
RSA-1.0
IPod
Stereo Line Level Audio/
Composite Video
From Source Out
To MZC-88 Source In
SpeakerCraft IRE Series
IR Emitter
From MZC-88 Source IR Out
Earth
Ground
(See Text)
14AWG
RG6 Coax
HED-1.0
SpeakerCraft AIM5 Three
Zone Speakers
MKP-1.1
Trim Plate Not Included With Keypad
MKP-1.0 NKP-1.0
Trim Plate Not Included With Keypad
MKP-1.1 NKP-1.0 FKP-1.0
Trim Plate Not Included With Keypad
MODE 3.1
Bezel Included With MODE 3.1
SpeakerCraft AIM5 Three
Zone Speakers
SpeakerCraft AIM5 Three
Zone Speakers
SpeakerCraft AIM5 Three
Zone Speakers
ZONE 1 ZONE 2
ZONE 3
ZONE 4
Zone
Video
Display
Zone
Video
Display
18-14AWG 2-Conductor Stranded Speaker Wire
CAT5 Cable
MUTE
SAT
CBL AUX
PWR
TNR1 TNR2
iPOD1
CD
DVD
MUTE
PWR
1
2
3
4
5 6
7
8
9
0
TRK DSC
RDM
GRP
TNR1
TNR2
iPOD1 CD
1 2
3
4 5 6
7
8 9
0
TRK DSC
RDM
GRP
PLAY
ESC INFO
MENUGUIDE
SEL
DVD SAT
MUTE
iPOD 1
CD
PWR
TNR1
AUXCBL
TNR2
MENU
SEL
RG6 Coaxial Cable
KCM-1.0
B
T
FUSE: T6.3AL 250V
FM Antenna
AM Loop
Antenna

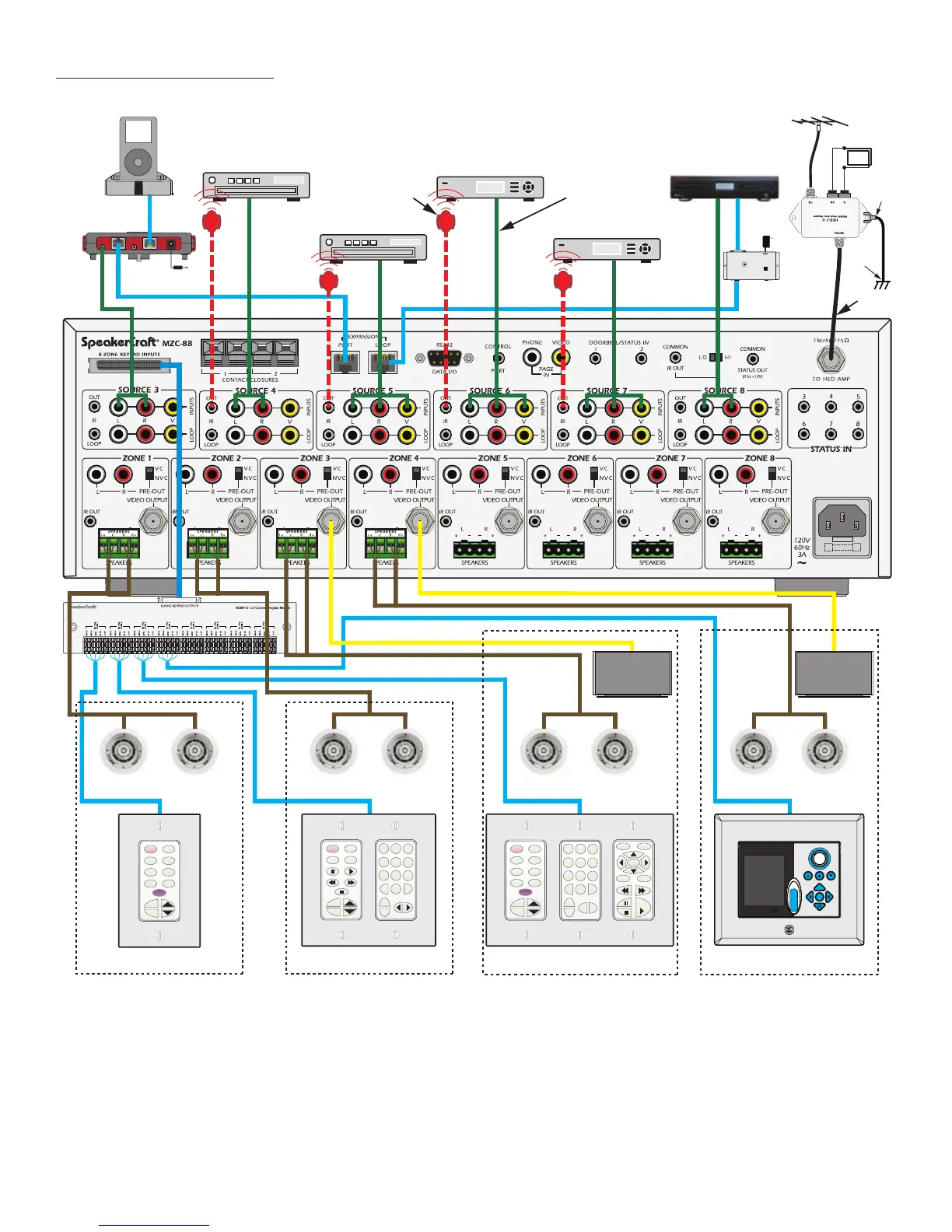

TYPICAL MZC-88 SYSTEM
Typical MZC-88 System showing Keypad, Source and Speaker connections. A MZC-88 System will have limited functionality right out
of the box such as ON/OFF, Source Select and Volume/Mute. Common source control and power management must be congured
in EZ-Tools. High power or multi-channel ampliers can be added to the individual zones for high audio output in large rooms or out-
door zones or when adding additional rooms or “sub-zones” to a default system. Additionally, the MZC-88 has two programmable
contact closures for control of lifts, screens, drapes etc. and an RS232 port for control of compatible components or whole-house
sub-systems. The MZC-88 also features two Doorbell/Status inputs that can be used for common source power management or tig-
gering a system ‘event’ from a doorbell module. For additional information on connection, conguration and programming of these
optional features see: MZC-88 Hardware Installation Instructions and EZ-Tools MZC Programming Instructions.
