SpeakerCraft time User Manual

APPENDIX A

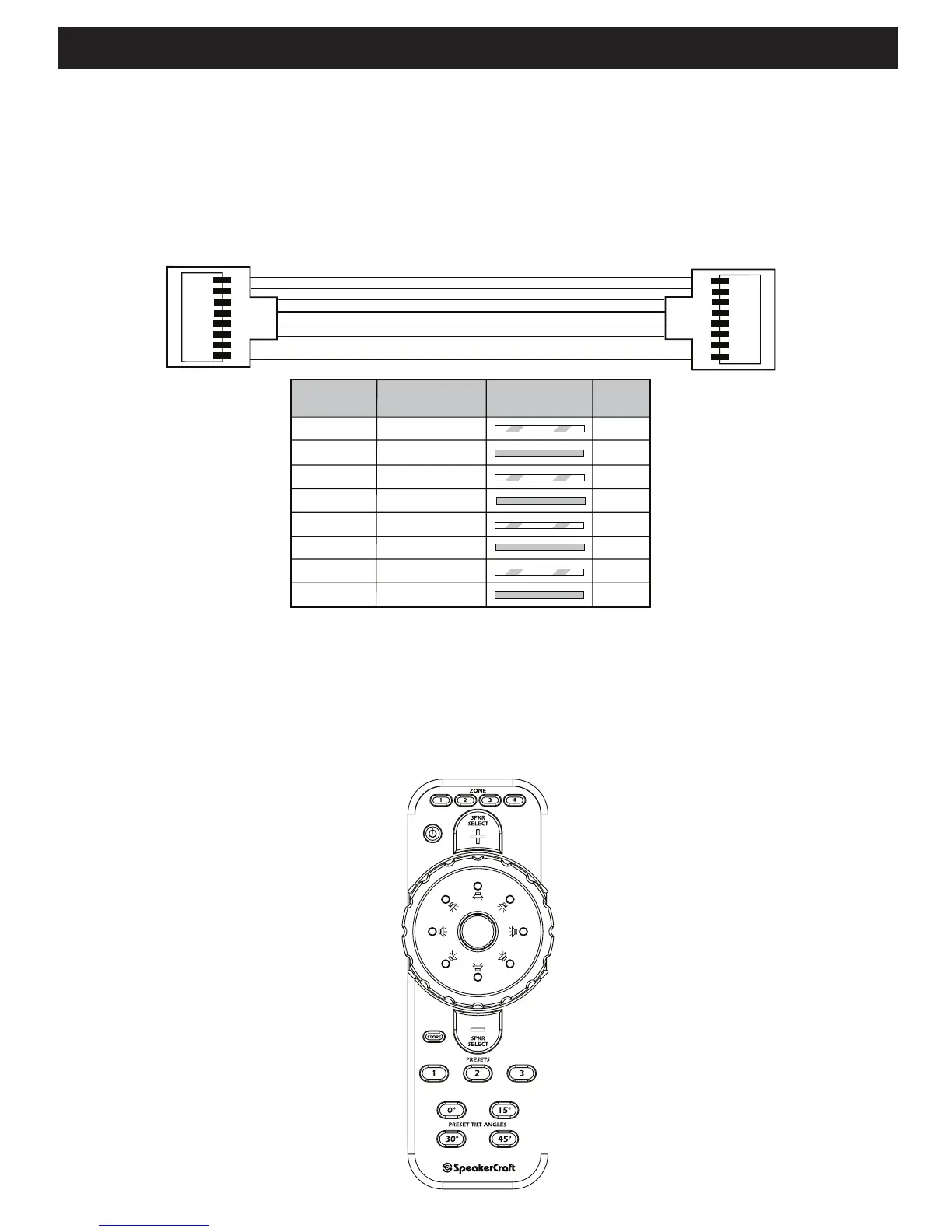

TIME Loudspeaker Power Cable
The wiring for the Cat 5 Cable is a straight thru connection. Typically the following convention is used:
The important thing is that pin 1 of the Speaker Side connector and pin 1 of the Electronics side connector are connected.
Same for Pin 2, Pin 3, etc. So that all 8 pins of the speaker side connector are connected to the corresponding pin on the
electronics side connector.
TIME Remote (for reference only)
Page 5 TIME Series Controller
RJ45 Pin#
Wire Color
(T568B)
Wire Diagram
(T568B)
Signal
1
2
3
4
5
6
7
8
White Orange
Orange
White Green
Blue
White Blue
Green
White Brown
Brown
GND
GND
GND
485+
485-
VCC
VCC
VCC
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Hub Side
Speaker Side
RJ45 Cable

SpeakerCraft time Specifications

Weight and Dimensions

width	17 in
height	2 in
depth	6 in
