Spearhead Trident 5000 - Tension Drive Belts

Spearhead Trident 4000/5000/6000
23

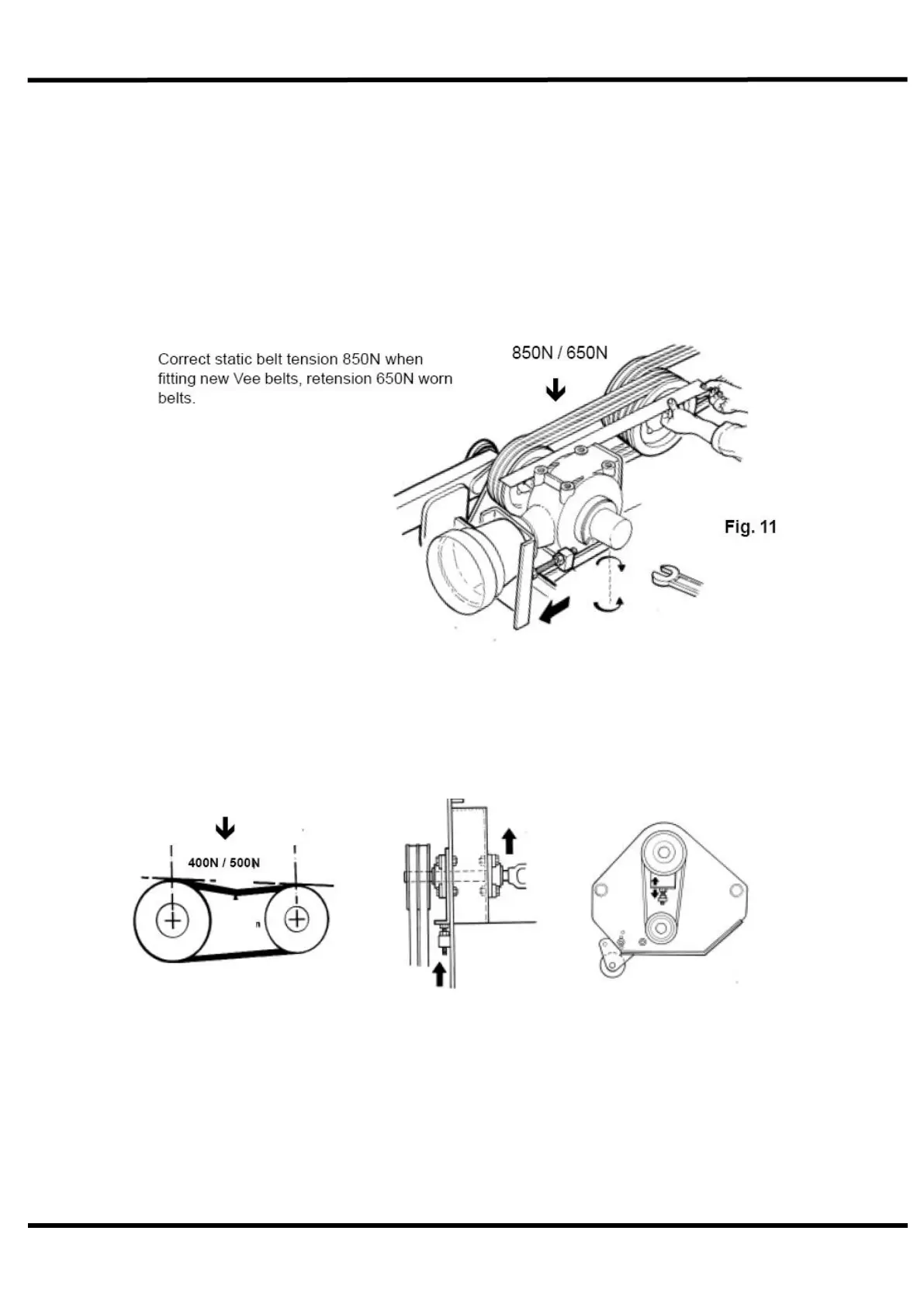

Tensioning Drive Belts on Primary Drive
Slacken gearbox mounting bolts and tension belts via jacking bolts using a straight
edge to maintain alignment (Fig 11). Retighten all bolts.
Note: Adjust belt tension when in work position
Tensioning Drive Belts on Secondary Drive
Correct static belt tension 500N when fitting new vee belts to retention worn belts
400N
Fig. 12
