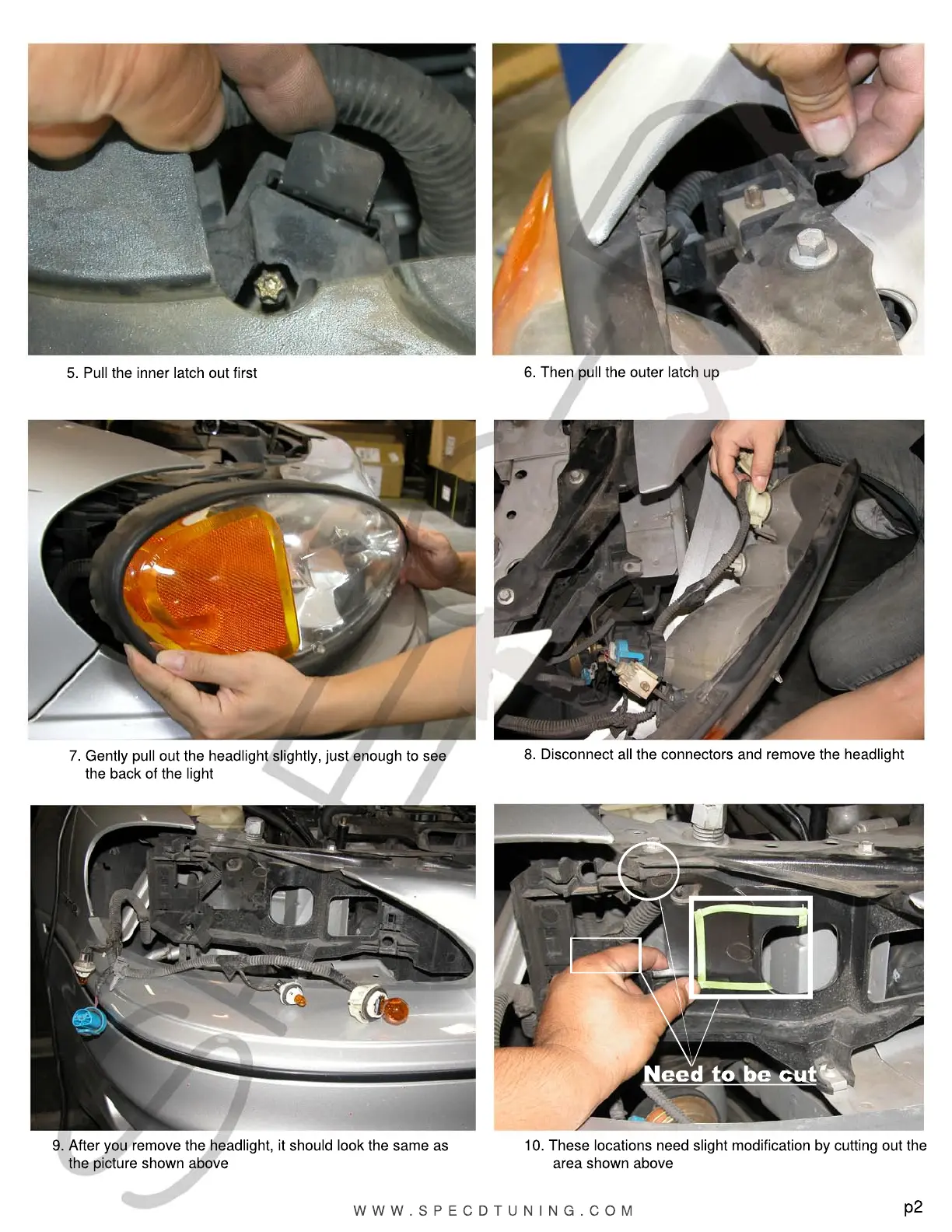

5. Pull the inner latch out first
6. Then pull the outer latch up
7. Gently pull out the headlight slightly, just enough to see
the back of the light
9. After you remove the headlight, it should look the same as
the picture shown above
8. Disconnect all the connectors and remove the headlight
10. These locations need slight modification by cutting out the
area shown above
W W W . S P E C D T U N I N G . C O M
p2
