REAR VIEW
FRONT VIEW

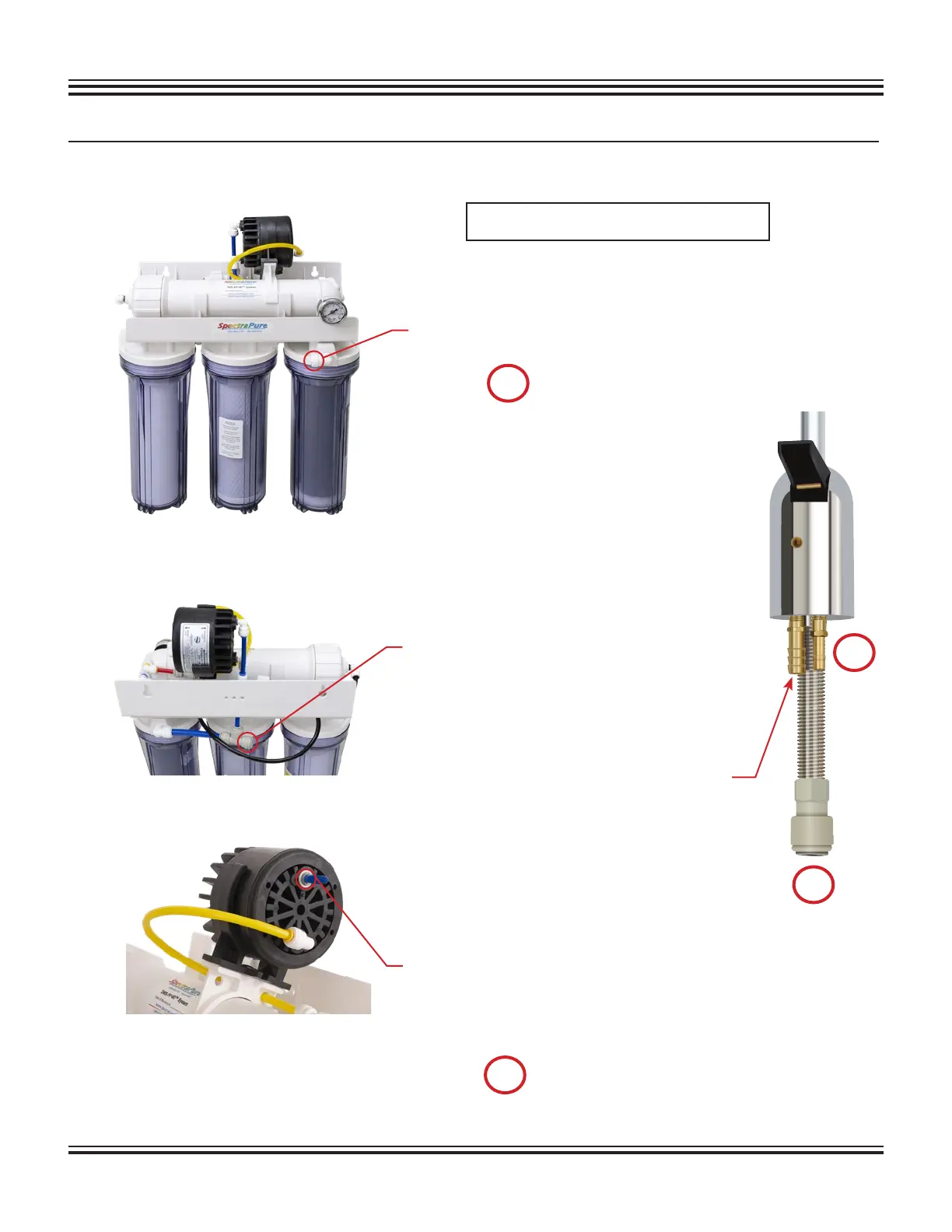

DRINKING WATER SYSTEMS PLUMBING CONNECTIONS (cont.)
DWS-PP-90 CONNECTIONS
1
3/8" BLUE TUBING FROM ELBOW
FITTING OUT TO FAUCET
3/8" BLUE TUBING FROM TEE
FITTING OUT TO TANK
1/4" YELLOW TUBING FROM
“BRINE OUT” PORT ON
PERMEATE PUMP TO SHORT
BARB FITTING ON AIR GAP
FAUCET (REMOVE BLUE PLUG)
2
1
3/8" BLACK TUBING
CONNECTS FROM
LONGER BARB TO
DRAIN SADDLE
AIR GAP FAUCET
CONNECTIONS
2
