LiHV
LiPo
LiFe
NiMH
5.0A
3.0A
1.0A
0.5A
F
E
D
K
L
J
LiHV
LiPo
LiFe
NiMH
5.0A
3.0A
1.0A
0.5A
G
A
B
C
H
I
2S
3S
4S
9
EN
Operating the Charger
Charging requires the selection of two settings; battery type and charge
current. SMART batteries will automatically load the correct battery type and will
only allow current adjustments.
1. Connect the battery power connector and
balance connector to the charger.

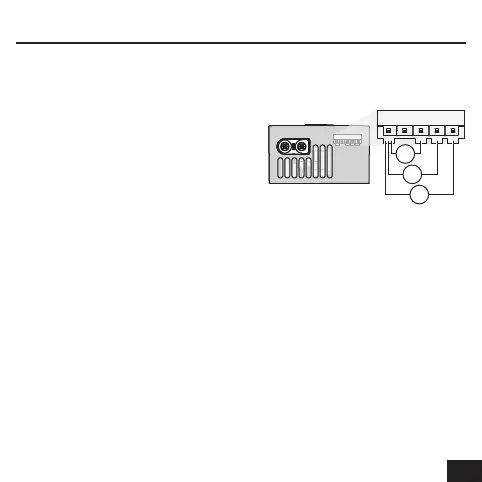

Lithium battery balance connectors must
be inserted with the connector shifted
toward the center of the charger, as shown.
2. Quickly press and release the button to
adjust the current.
3. Press and hold the button for several seconds to change the battery type. This
function will not change the battery type when a SMART battery is connected.
4. SMART lithium batteries will begin charging automatically after 5 seconds. The
charge rate can be changed during the charge with a quick press and release of
the button. Charging will restart after 5 seconds.
5. Non-SMART batteries will begin charging after a manual double press of the
button after mode and charge rate selections are made. The charge rate can
be changed during the charge with a quick press and release of the button. To
restart charging rapidly double click the button.
