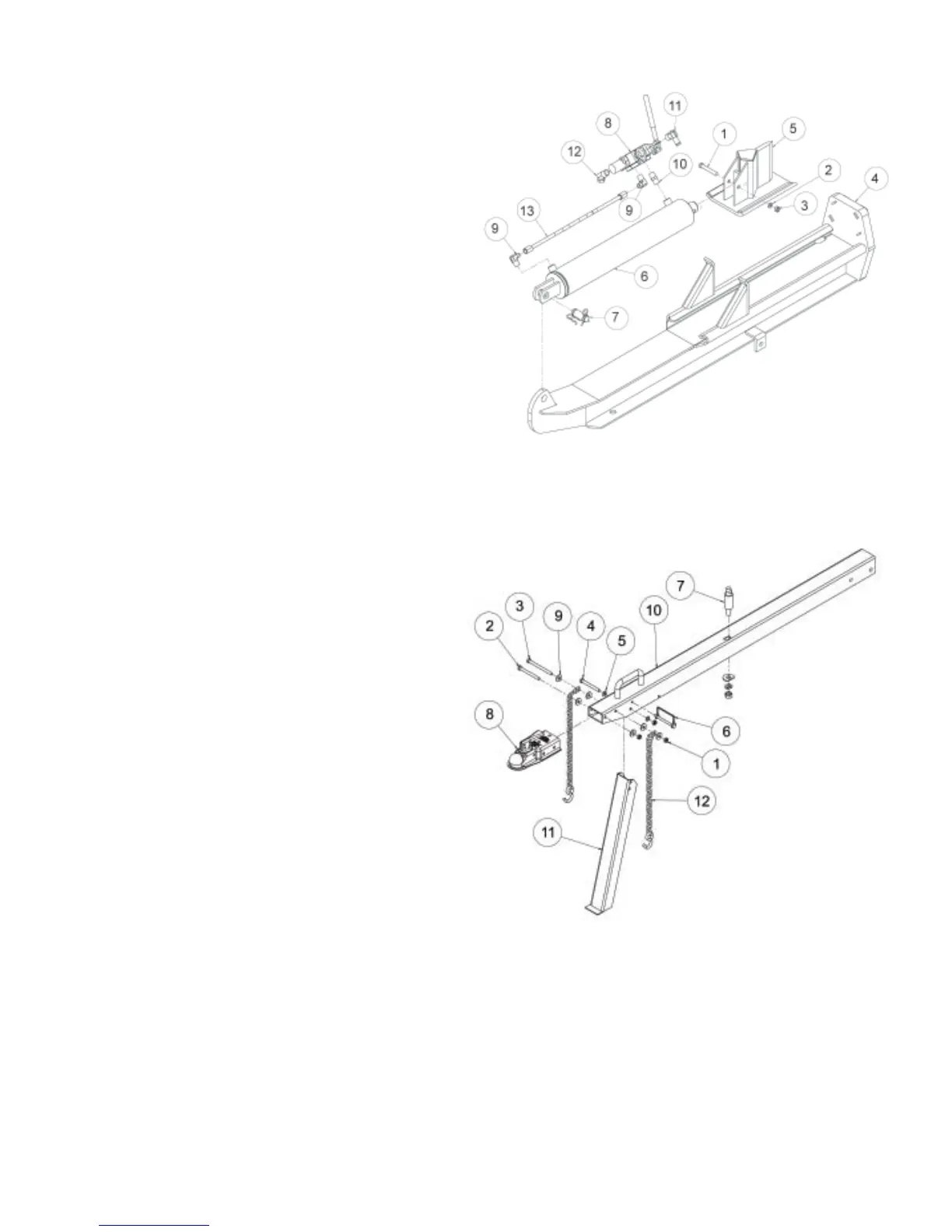

TONGUE ASSEMBLY BREAKDOWN
BEAM ASSEMBLY BREAKDOWN
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 1/2” X 3-1/4” GR 5 Hex Cap Bolt 1
2 O/L 1/2” Regular Lock Washer 1
3 O/L 1/2” Hex Nut 1
4 401411R0 Beam 1
5 40141700 Wedge 1
6 390118BC 4” Cylinder 1
7 07073100 Cylinder Pin 1
8 390406SC Valve 1
9 39034700 1/2” Pipe to Steel To Steel Tube 2
10 39034300 1/2” NPT Nipple 1
11 39032000 3/4” NPT x 3/4” Tube Fitting 1
12 39039000 45° Fitting, 3/4” Male, 1/2” Female 1
13 39034600 1/2” Steel Tube 1
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
Page 10
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L M10 x 1.5 Nylock Nut 3
2 O/L M10 x 1.5 x 100mm GR5 Bolt 1
3 O/L M10 x 1.5 x 120mm GR 5 Bolt 1
4 O/L M10 x 1.5 x 90mm Gr5 Bolt 1
5 O/L M10 Flat Washer, Narrow
6 07095800 5/16” Square Lock Pin 1
7 07080900 Stabilizer Pin Assembly 1
8 40034600 Hitch Ball Assembly 1
9 O/L M10 Flat Washer 6
10 40126300 Tongue 1
11 40126000 Ground Stand 1
12 40032300 20 Link Chain with Hook 2
