SpeeCo SPLITMASTER 401625UB - Step 5: Hydraulic Pressure Hose Connection; Step 6: Hydraulic Return Hose Connection; Step 7: Latch Assembly Attachment

Page 9

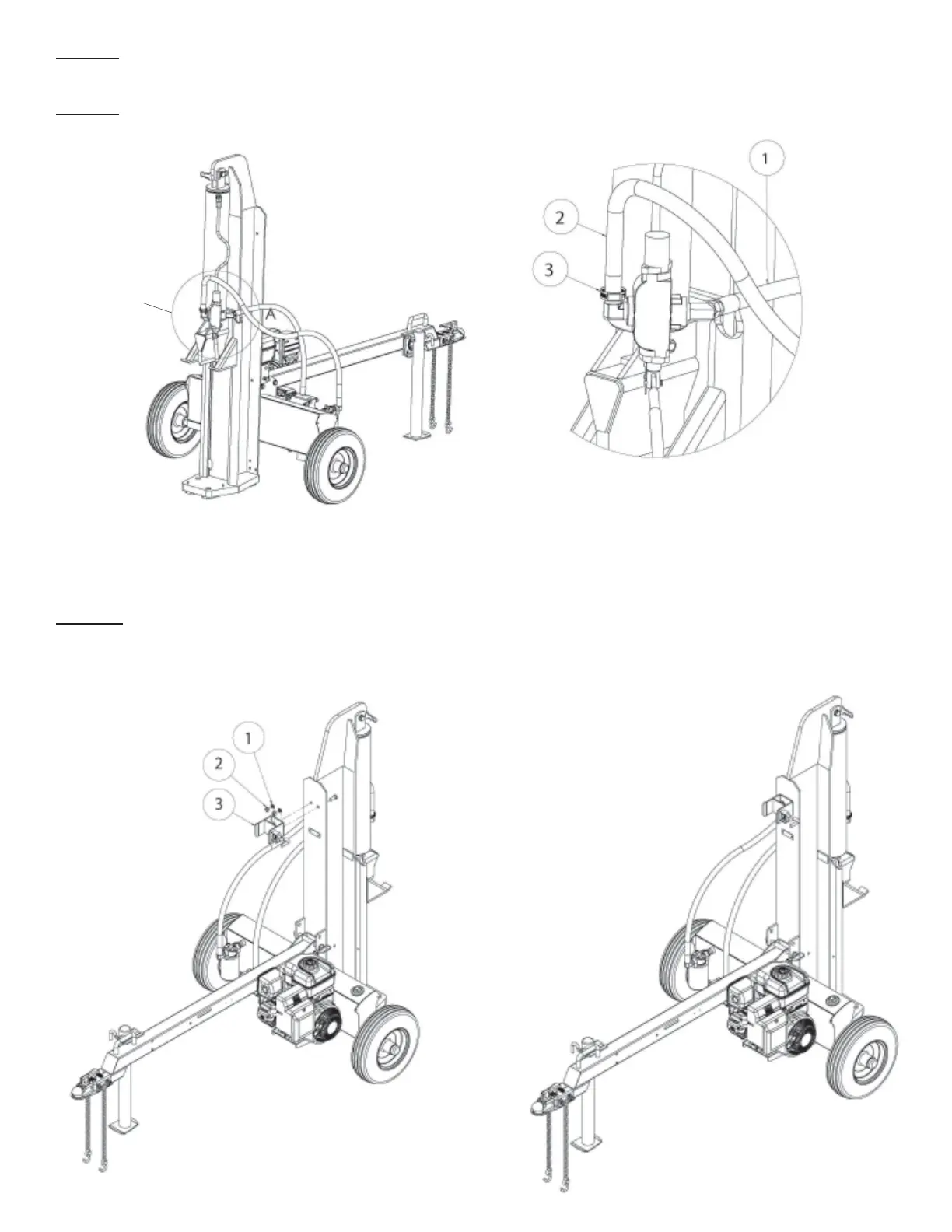

STEP 5: Connect the end of the 1/2” ID x 44” hydraulic pressure hose (1) coming from the fitting on the pump to the
fitting on the valve. See illustrations below.
STEP 6: Slide one hose clamp on the end of the 3/4” x 44” hydraulic return hose (2 ) that comes from the fitting on the
filter. Then connect the hose to the fitting on the valve.Tighten hose clamp. See illustrations below.
Area of
Detail
DETAIL A
SCALE 1:3
ITEM NO. PART NO. DESCRPTION QTY.
1 39027500 1/2” X 38” Pressure Hose 1
2 39027400 3/4” x 56” Return Hose 1
3 39031600 Worm Gear Clamp 3
STEP 7: Attach the latch (3) to the bottom side of the beam as shown in the diagram using the two 1/2” x 1-1/4”
Grade 5 hex cap bolts (4), the two 1/2” lock washers (1) and the two 1/2” hex nuts (2 ). Lower the beam
` onto the tongue.Position the latch assembly on the tongue and tighten hardware.
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 1/2” Lock Washer 2
2 O/L 1/2” Hex Nut 2
3 40127500 Beam Lock 1
4 O/L 1/2” x 1-1/4” Bolt 2
O/L- Obtain locally. Common fasteners available
through hardware and farm stores.
