Speedaire Operating Instructions and Parts Manual
Stainless Steel Industrial Hose Reel ½”
Installation
Installation of Reel
1. For ceiling mounting: install reel at least 10 feet above the floor.
2. You will need to purchase appropriate hardware for your specific reel mounting configuration.
3. The reel base has four 1/2” (12.7mm) drilled holes for mounting on a suitable flat surface. Figure 2 on Page 5
is a template showing the correct location of the 4 mounting holes in the base.
4. The reel is supplied with a hose guide roller bracket. The bracket position may require repositioning depending on
the selected reel mounting position. Figure 1 below shows “Typical Mounting Positions”. If bracket position needs
to be changed, do the following:
(a) Pull out some hose and let reel latch.
(b) Remove the bolts that attach the guide roller bracket to the support post.
(c) Rotate hose guide roller bracket to correct position, replace bolts and tighten.
5. Using all four holes in the base, mount the reel in the desired location. Be sure to use appropriate hardware (not
included), and tighten securely.
6. Apply pipe sealant to threads on reel supply line, attach line to reel inlet and tighten.
Only use flexible hose to connect reel inlet. Do not use rigid plumbing.
7. Apply pipe sealant to outlet fitting of hose, then attach to desired tool, nozzle, or quick connect fitting.
8. Use soapy water to check connection for leakage, also check hose reel for correct operation, (Refer to Page 3 –
Operation Section).
9 If hose stopper adjustment is required, pull hose from reel and allow latching at desired storage length. Loosen
stopper
bolts and slide stopper to a position close to the hose guide roller bracket. Tighten stopper bolts, and unlatch the
reel.

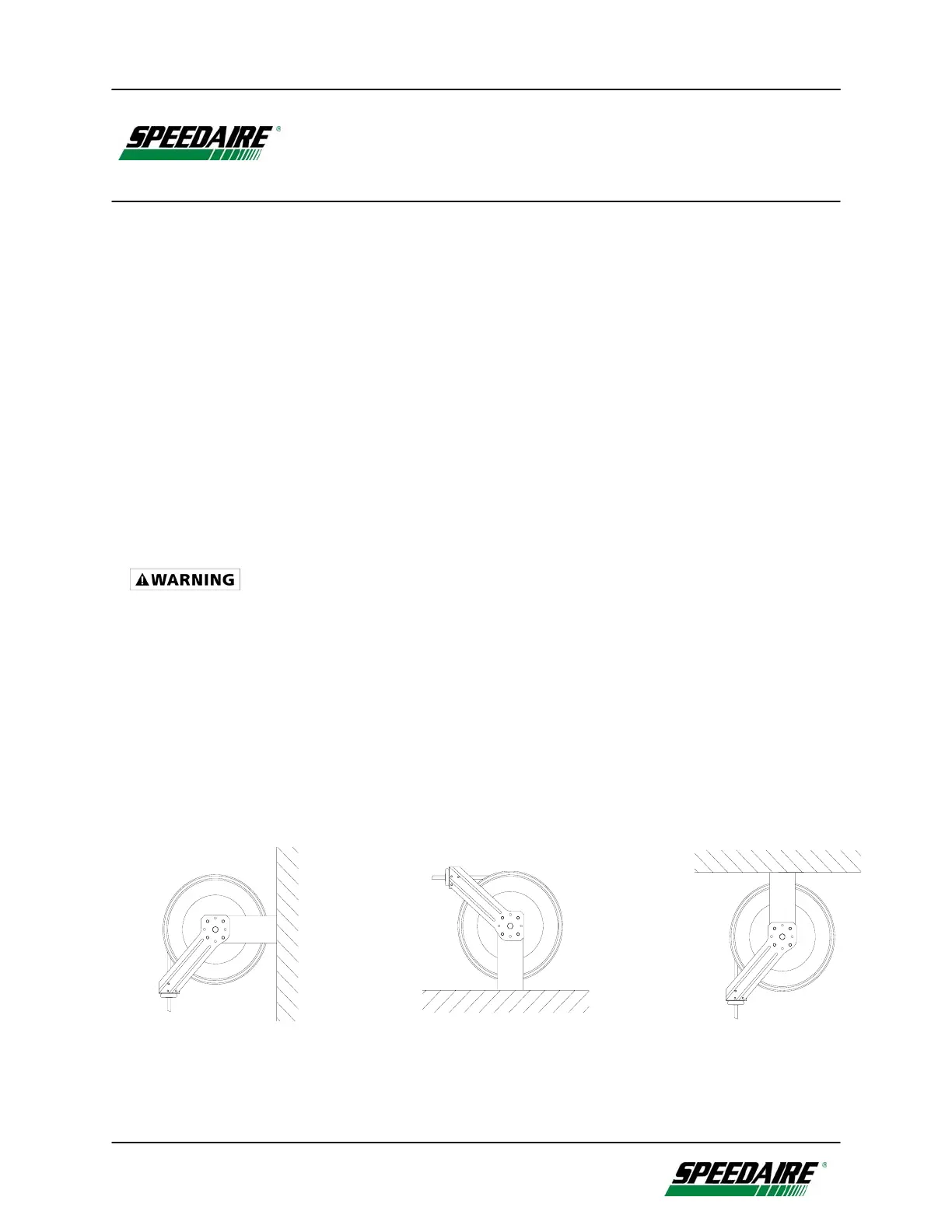

FIGURE 1 Reel Mounting Positions
Wall Floor Ceiling
2
