Step 3 -
Front Support Assembly

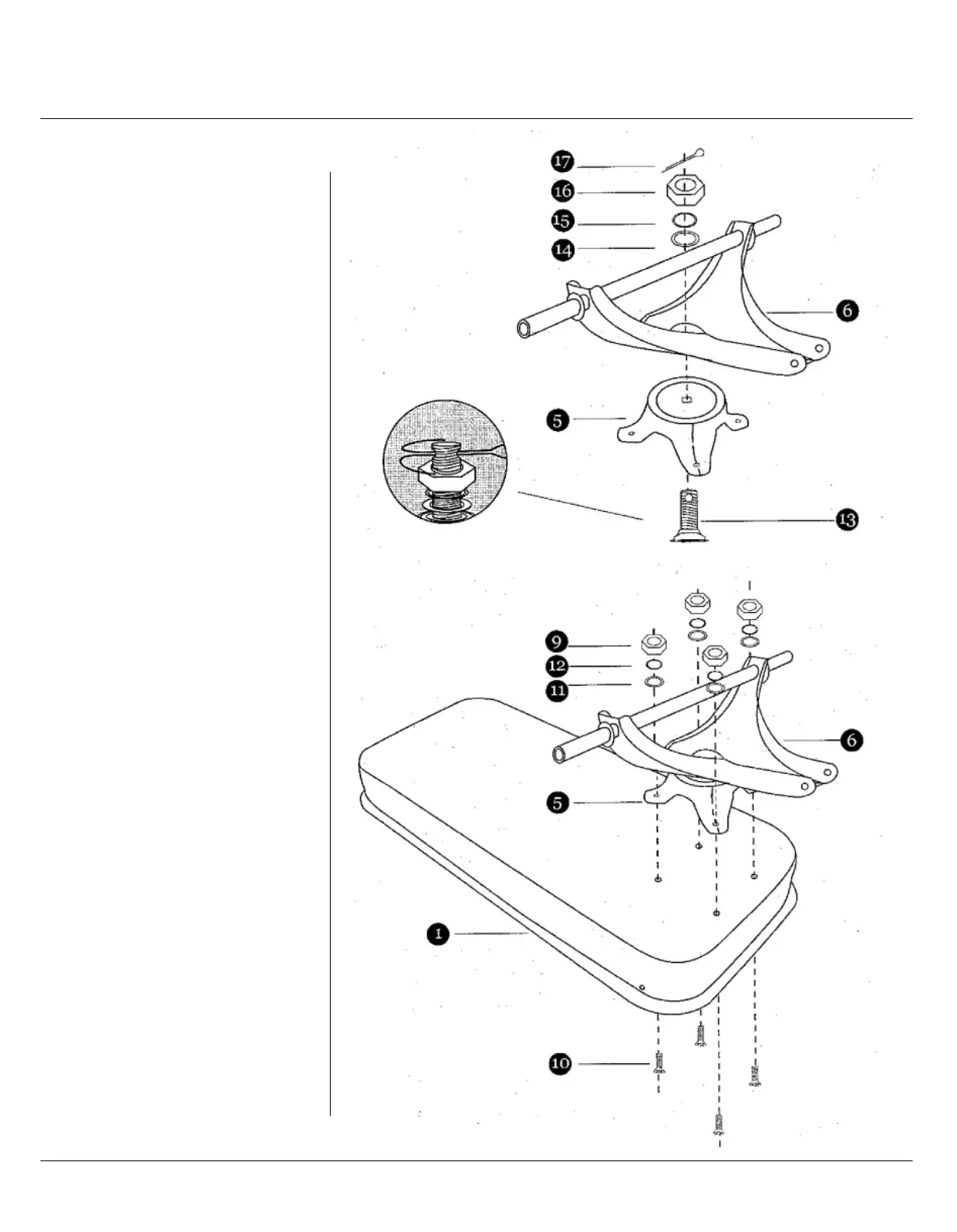

Attach front support -1(5) and
front support -2(6) with bolts (13),
washers (14), lock washers (15),
nuts (16), and pins (17).
NOTE: Make sure the pin is
bended as the diagram shown.
Attach the assembled front
support (5, 6) to the bed using
16mm Bolts (10), washers (11),
Spring washers (12), and
nuts (9).
3
